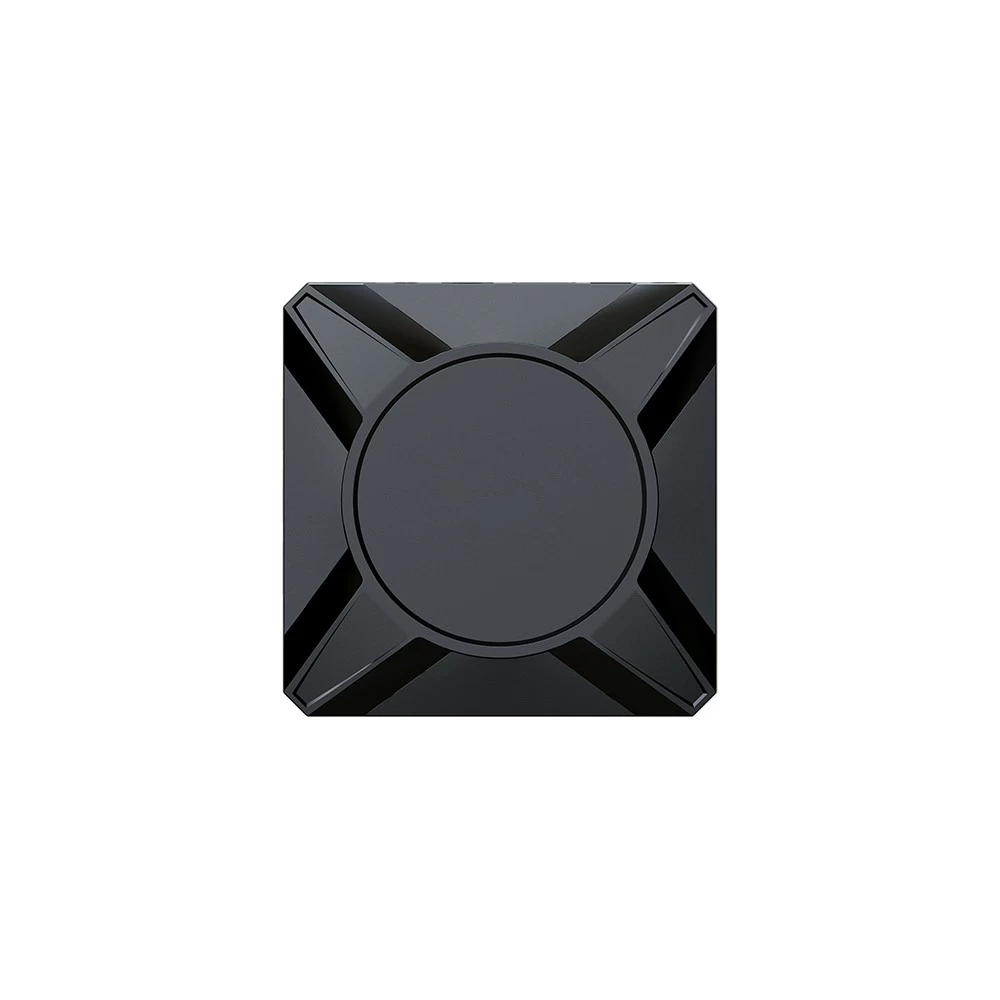

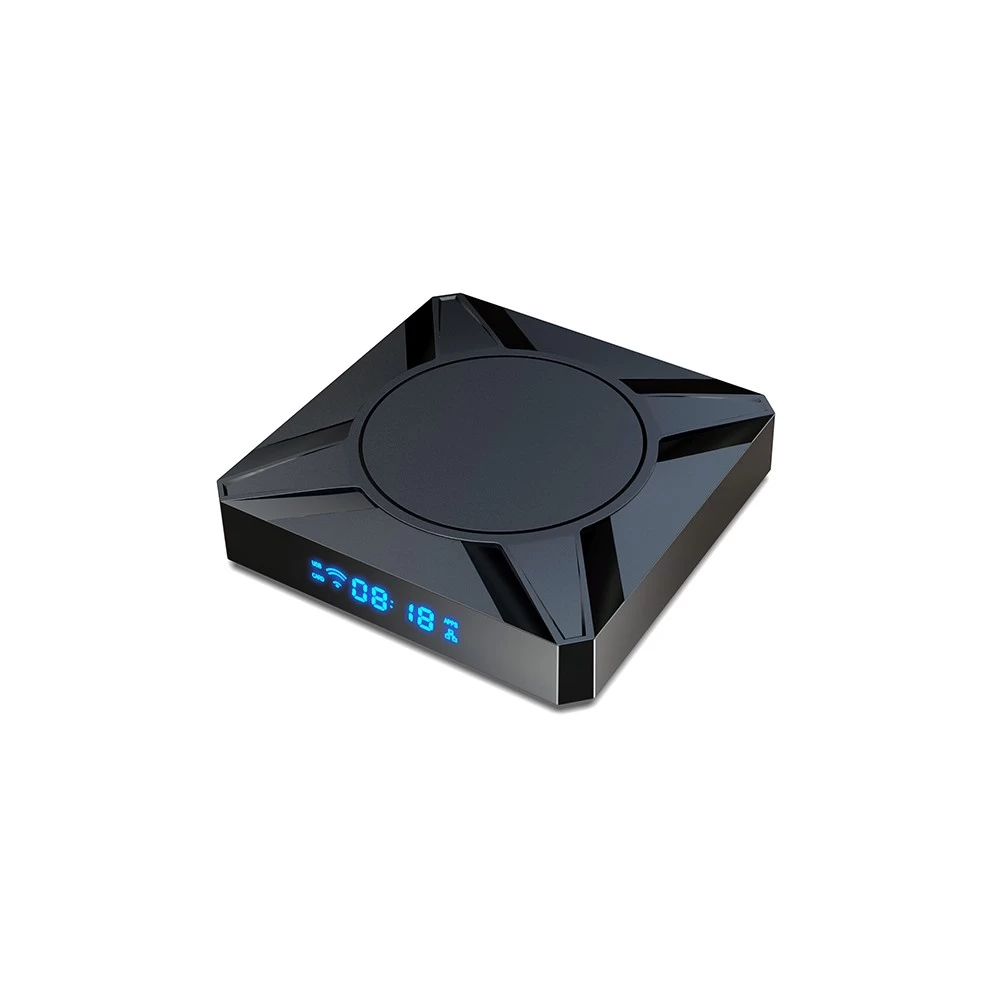

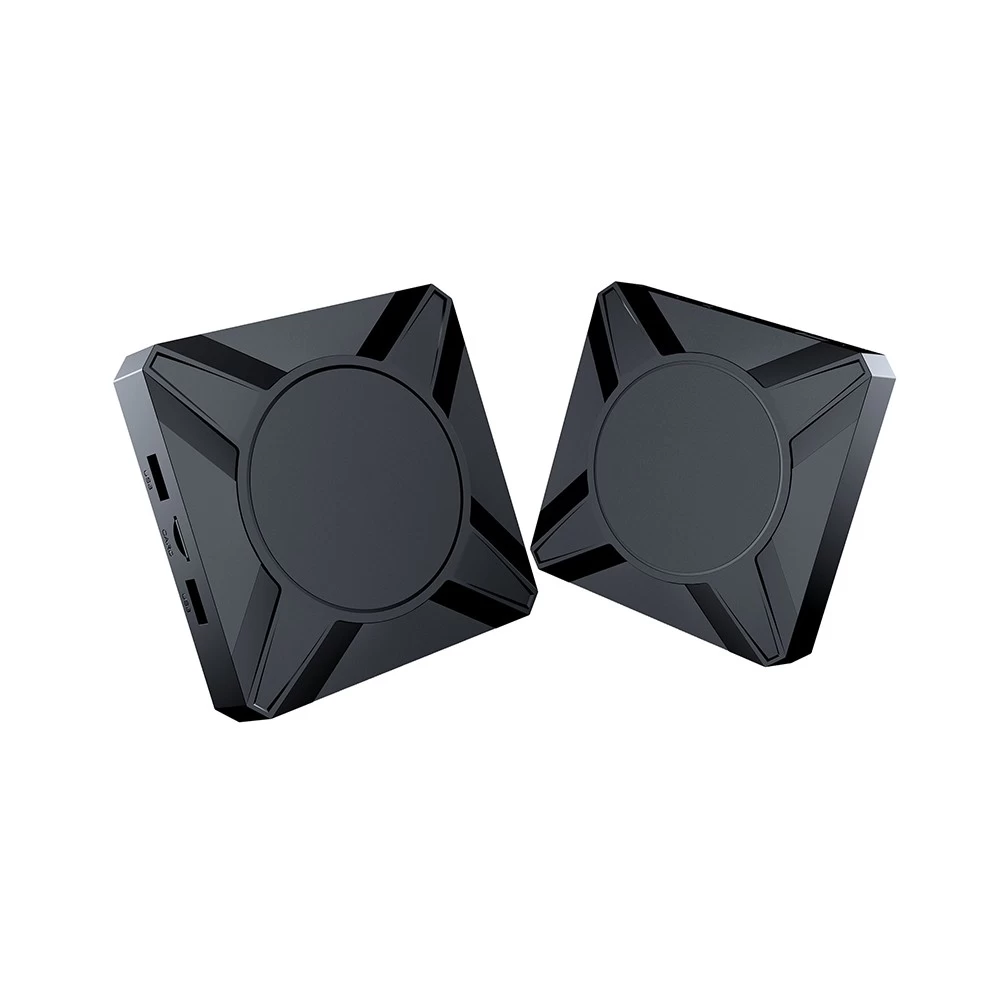

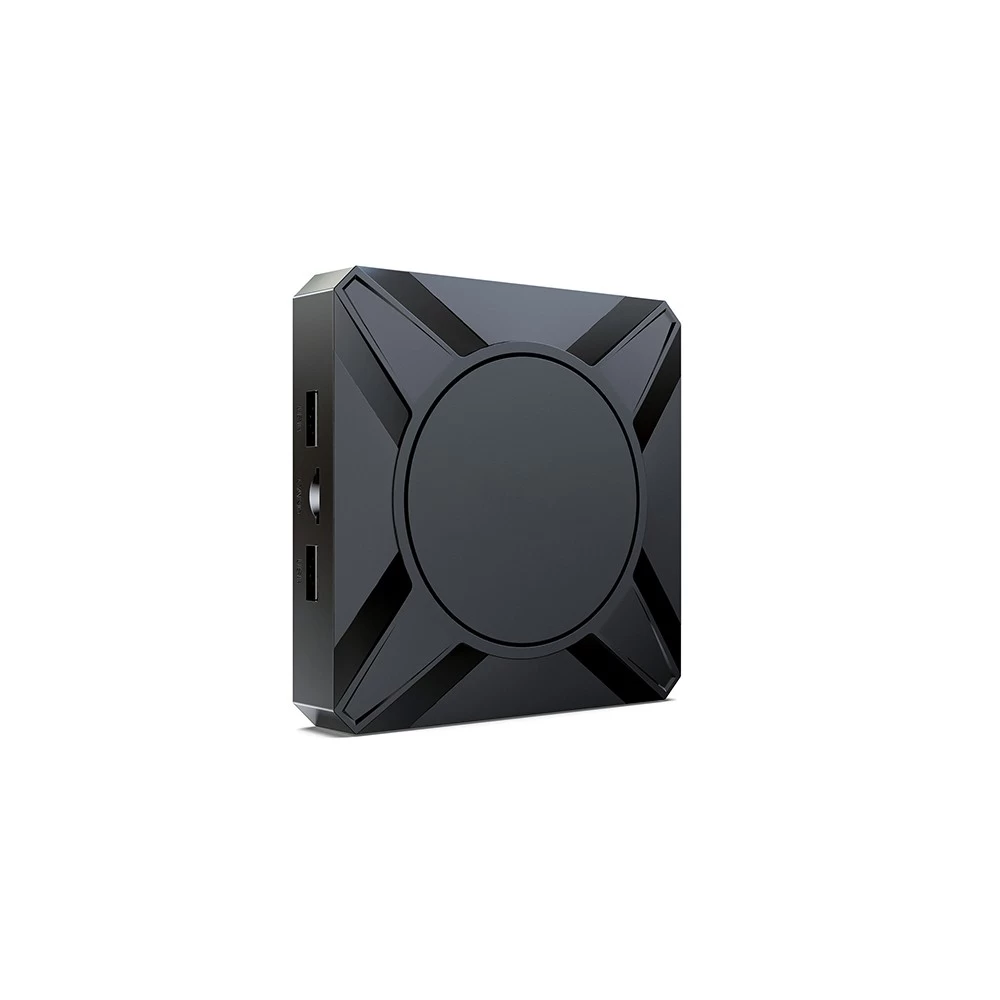

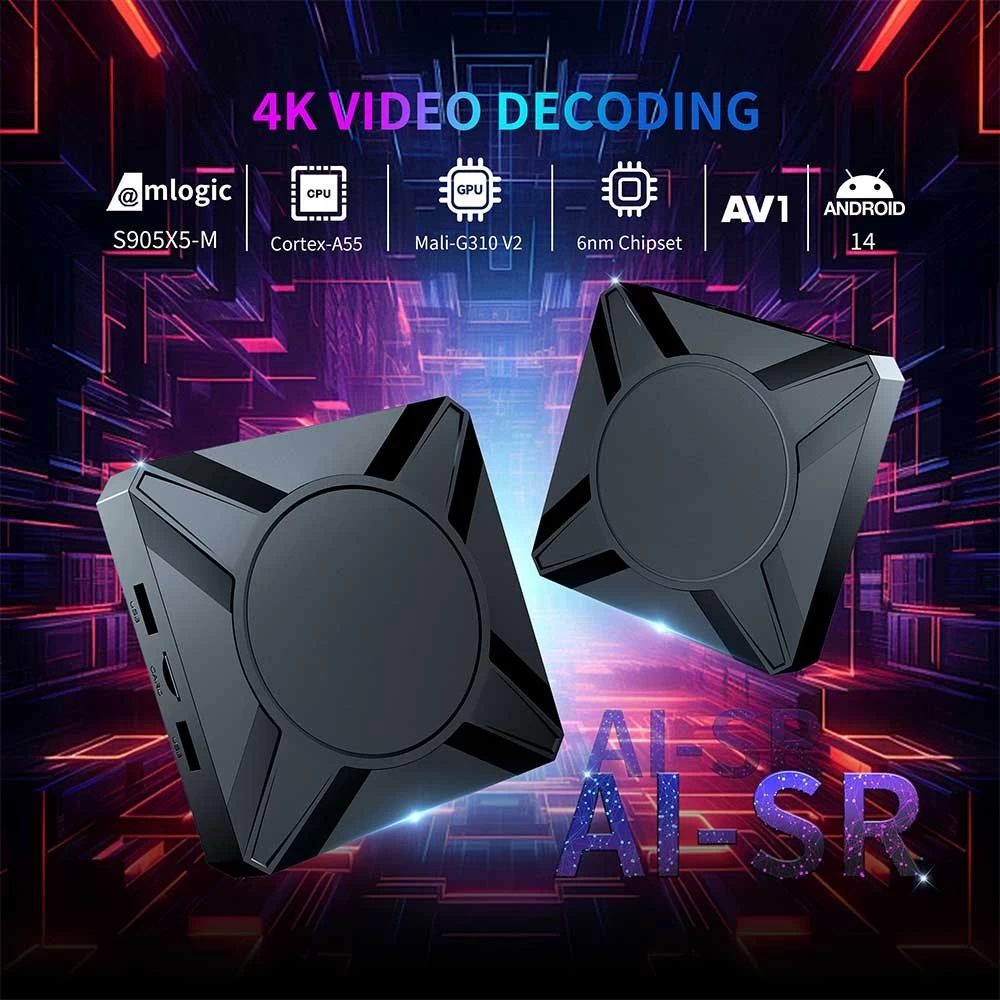

Amlogic S905X5-M Quad Core ARM Cortex A55 Mail G310 V2 6nm Chipset AV 1 Android 14 4K AI SR Dual WiFi Smart TV Box
- Model No.: Amlogic S905X5M
- CPU: Amlogic S905X5M Quad Core ARM Cortex A55
- GPU: ARM G310 V2 OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support
- RAM: 4GB (2GB/4GB Optional)
- ROM: 64GB (16GB/32GB/64GB/128GB Optional)
- OS: Android 14
- WiFi: Support 2.4G and 5G
- Support: WiFi IEEE 802.11 b / g / n /ac
- Bluetooth: Support BT5.X
Amlogic S905X5-M Quad Core ARM Cortex A55 Mail G310 V2 6nm Chipset AV 1 Android 14 4K AI SR Dual WiFi Smart TV Box
|
Specifications |
|
|
Model No. |
Amlogic S905X5M Smart TV Box |
|
CPU |
Amlogic S905X5M Quad Core ARM Cortex A55 |
|
GPU |
ARM G310 V2 OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support |
|
RAM |
4GB (2GB/4GB Optional) |
|
ROM |
64GB (16GB/32GB/64GB/128GB Optional) |
|
OS |
Android 14 |
|
WiFi |
Support 2.4G and 5G Support WiFi IEEE 802.11 b / g / n /ac |
|
Bluetooth |
Support BT5.X |
|
Video&Audio CODEC |
|
|
Multimedia |
AV1 MP-10@L5.1 up to 4Kx2K@60fps VP9 Profile-2 up to 4Kx2K@60fps H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P@60fps AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats Supports HDR10, HDR10+ processing Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction |
|
Audio |
Supports MP3, AAC, WMA, RM, FLAC, Ogg |
|
I/O |
|
|
1*HDMI |
4K*2K UHD Output, HDMI 2.1a |
|
1*AV OUT |
480i/576i standard definition output |
|
3*USB |
3*USB 2.0 Normal Type |
|
1*IR Reciver |
3.5mm Earphone jack Remote Reciver Connect |
|
1*RJ45 |
Ethernet Interface Support 1000M |
|
1*Micro SD |
Support |
|
Power |
DC IN(5V/2A) |
|
Others |
|
|
Image |
HD JPEG, BMP, GIF, PNG, TIF |
|
Language |
English French German Spanish Italian etc multilateral languages |
|
Option |
Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc. Apps download freely form android market, amazon app store etc. Local Media playback, Support HDD, U Disck, TF Card. |
Powerful Processing for Seamless Performance
Equipped with the Amlogic S905X5M chipset featuring four ARM Cortex-A55 cores clocked up to 2.5 GHz, this Smart TV Box delivers up to 30 K DMIPS for responsive navigation and app launches. The Mali-G310 V2 GPU supports OpenGL ES 3.2, Vulkan 1.2, and OpenCL 2.0, ensuring fluid 3D graphics and HDR user interfaces without stutter.
Cinematic 4K HDR Multimedia
Native AV1 hardware decoding at up to 4K@60 fps provides crystal-clear video playback with efficient compression. Support for VP9, H.265 HEVC, HDR10, HDR10+, and Dolby Vision enables true-to-life colors and deep contrast for an immersive home-theater experience.
Innovative AI Super Resolution
Inline AI-SR technology intelligently upscales lower-resolution content to near-4K quality, reducing block noise, mosquito noise, and contour artifacts for sharper details. This advanced image enhancer ensures older movies and streaming apps look their best on today’s high-resolution displays.
Robust Connectivity
Dual-band Wi-Fi (2.4 GHz & 5 GHz, IEEE 802.11 b/g/n/ac) and Bluetooth 5.x provide fast, reliable wireless access and peripheral pairing. A 1000 M Ethernet port ensures stable wired connections, ideal for lag-free 4K streaming and cloud gaming.
Ample Memory and Expandable Storage
Standard configurations include 4 GB DDR4 RAM (options: 2 GB/4 GB) and 64 GB eMMC storage (options: 16 GB/32 GB/64 GB/128 GB) to accommodate multiple apps, games, and media libraries. A microSD slot and three USB 2.0 ports allow seamless expansion for external drives and flash disks.
Comprehensive I/O for Every Need
The Smart TV Box features HDMI 2.1a for 4K@60 fps output, AV out for legacy displays, an IR receiver for remote control, and a 3.5 mm audio jack for private listening. Whether connecting to a modern OLED or an older CRT, you have full compatibility.
Pure Android 14 Ecosystem
Running Android 14, this device offers the latest security patches, system optimizations, and native support for Google services. Freely download apps from the Google Play Store, Amazon Appstore, and sideload APKs for endless entertainment options.
Multilingual and Global Streaming Support
Preloaded with multiple languages including English, French, German, Spanish, and Italian, it caters to international markets. Built-in DRM certificates enable premium streaming on Netflix, Hulu, Prime Video, and more, while local playback supports HDDs, TF cards, and USB storage.
