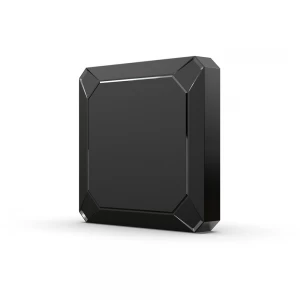

Android 13 TV Box Rockchip RK3528 Quad Core Mali-450

  • Model No.: Rockchip RK3528 Android TV Box
  • CPU: Rockchip RK3528 Quad Core ARM Cortex A53
  • GPU: ARM Mali-450 GPU OpenGL ES 1.1/2.0 and OpenVG 1.1 Support
  • RAM: 2GB (4GB Optional)
  • ROM: 16GB(32/64/128GB Optional)
  • Operating System:Android 13

Android 13 TV Box Rockchip RK3528 Quad Core Mali-450

Specifications

CPU

Rockchip RK3528 Quad Core ARM Cortex A53

GPU

ARM Mali-450 GPU OpenGL ES 1.1/2.0 and OpenVG 1.1 Support

RAM

2GB (4GB Optional)

ROM

16GB(32/64/128GB Optional)

Operating System

Android 13

Video&Audio Code

Video Codec

H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps

H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps

AVS2 4KX2K @ 60fps

MPEG-1, Main profile, up to 1080P @ 60fps

MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps

MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps

MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps

AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps

AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps

AVS-P16 (AVS+), up to 1080P @ 60fps

H.263, up to 576P @ 60fps

VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps

Support video encoder for H.264, HP@level4.2

H.264 maximum frame rate is up to 1920x1080 @ 60fps

Capable of encoding HEVC Main Profile @ L4.1 High-tier

H.265 resolution and frame rate are up to 1920x1080 @ 60fps

JPEG encoder included

Audio Codec

Serial Audio Interface

Audio CODEC

HD JPEG, BMP, GIF, PNG, TIF

Network Service

Wi-Fi

Support WiFi IEEE 802.11 b / g / n / ac / ax

Support 2.4GHz/5GHz WiFi 6

Single antennas

Bluetooth

Support BT5.X

Power

Power Supply

DC IN(5V/2A)

HDMI

4K*2K UHD Output, HDMI 1.4/2.X

IR Reciver

Remote Reciver Connect

Micro SD

Support External memory

USB port

USB3.0 *1

USB2.0 *2

Ethernet

100M Ethernet(1000M Optional)







AV Port

1*AV OUT

Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450Android 13 TV Box Rockchip RK3528 Quad Core Mali-450



At SZTomato, we're thrilled to present the Android 13 TV Box Rockchip RK3528 Quad Core Mali‑450, our latest flagship designed to redefine home entertainment and smart‑home control. Built for both enthusiasts and enterprise deployments, this sleek media player brings together powerful hardware, cutting‑edge connectivity, and Google’s newest Android 13 enhancements—all wrapped in a compact, energy‑efficient design.

Under the hood, the Rockchip RK3528 SoC delivers robust multitasking thanks to its quad‑core ARM Cortex‑A53 CPU and Mali‑450 GPU, ensuring apps launch instantly and graphics render smoothly—even with demanding UIs or light gaming sessions. Whether you’re switching between streaming platforms or browsing the web on your TV, you’ll notice the difference.

Choose between 2 GB or 4 GB of DDR3 RAM paired with 16 GB or 32 GB of high‑speed eMMC storage, expandable via the microSD slot to suit your project’s needs—perfect for B2B customers who require scalable solutions. From storing multiple IPTV apps in a hospitality setting to caching large training videos for corporate lobbies, you’ll never run out of space.

Enjoy true Ultra HD experiences with native 4K@60 fps output through HDMI 2.0, plus hardware‑accelerated decoding of H.264/AVC and H.265/HEVC up to 8K@23 fps, bringing every pixel to life on the latest displays. Advanced upscaling algorithms and support for AVS2 at 4K@60 fps, along with legacy codec handling for VC1 and MPEG‑2 at 1080p@60 fps, guarantee smooth playback across all content types.

Stay connected with dual‑band Wi‑Fi 6 (802.11ax), delivering up to 9.6 Gbps theoretical throughput and reduced network congestion—ideal for multi‑device environments like conference rooms or digital signage networks. Bluetooth 5.0 further enhances your setup with extended range, faster pairing, and improved low‑energy performance for peripherals such as controllers, keyboards, or wireless audio devices.

A comprehensive I/O suite—including one HDMI 2.0 port, a Gigabit Ethernet jack, one USB 3.0 port, two USB 2.0 ports, and a microSD slot—ensures seamless integration with NAS drives, legacy USB accessories, and more, giving you the flexibility to customize deployments without compromise.

Running Android 13, this TV Box incorporates Google’s latest privacy‑first features, such as the new Photo Picker for granular media permissions and permission‑based notifications that keep your data safe and your UI uncluttered. You’ll also benefit from per‑app language settings, a revamped media player with quick‑cast controls, and smart‑home shortcuts accessible right from the lock screen.

Voice‑activated convenience arrives courtesy of built‑in Google Assistant support—just say “Hey Google” to search for content, adjust volume, or control compatible smart‑home devices without lifting a finger.

All this power comes in a slim, fanless chassis that draws just 5 V/2 A, making it perfect for discreet installations in hotels, retail displays, or corporate signage setups. Its low thermal footprint ensures reliable 24/7 operation, while the minimalist enclosure blends seamlessly into any environment.

Whether you’re an OEM, an integrator, or a hospitality manager, the Android 13 TV Box Rockchip RK3528 Quad Core Mali‑450 delivers unmatched performance, versatility, and security in one cost‑effective package.

Key Benefits at a Glance

  • Cost‑Effective, High‑Integration SoC: Consolidates CPU, GPU, and VPU in one chip to minimize BOM costs without sacrificing speed.

  • Future‑Proof Connectivity: Wi‑Fi 6 and Bluetooth 5.0 ensure your installations stay ahead of networking standards.

  • Scalable Memory & Storage: Configurations from 2 GB/16 GB to 4 GB/32 GB meet any project requirement

  • Secure & Customizable OS: Leverage Android 13’s enterprise‑grade security and Google Play ecosystem for rapid updates and app flexibility.

Elevate your B2B offerings with the Android 13 TV Box Rockchip RK3528 Quad Core Mali‑450—where performance, security, and scalability converge.
