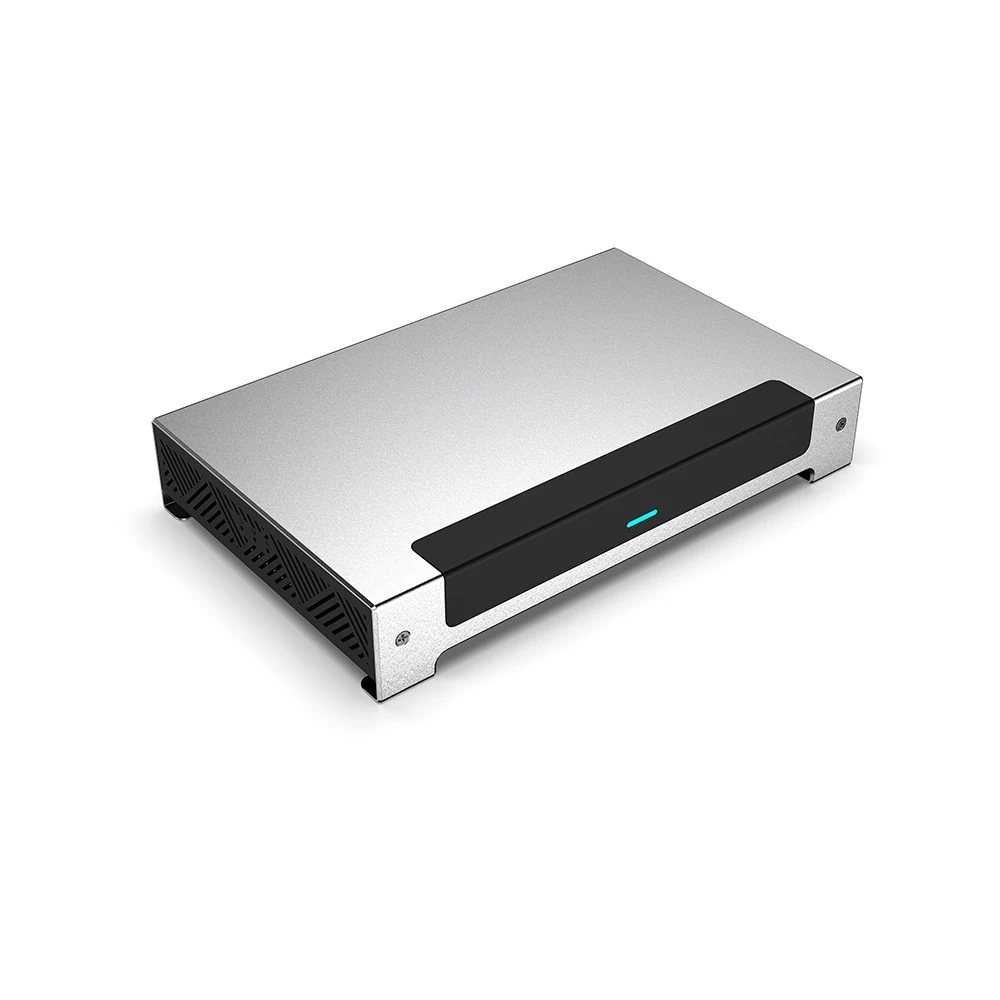

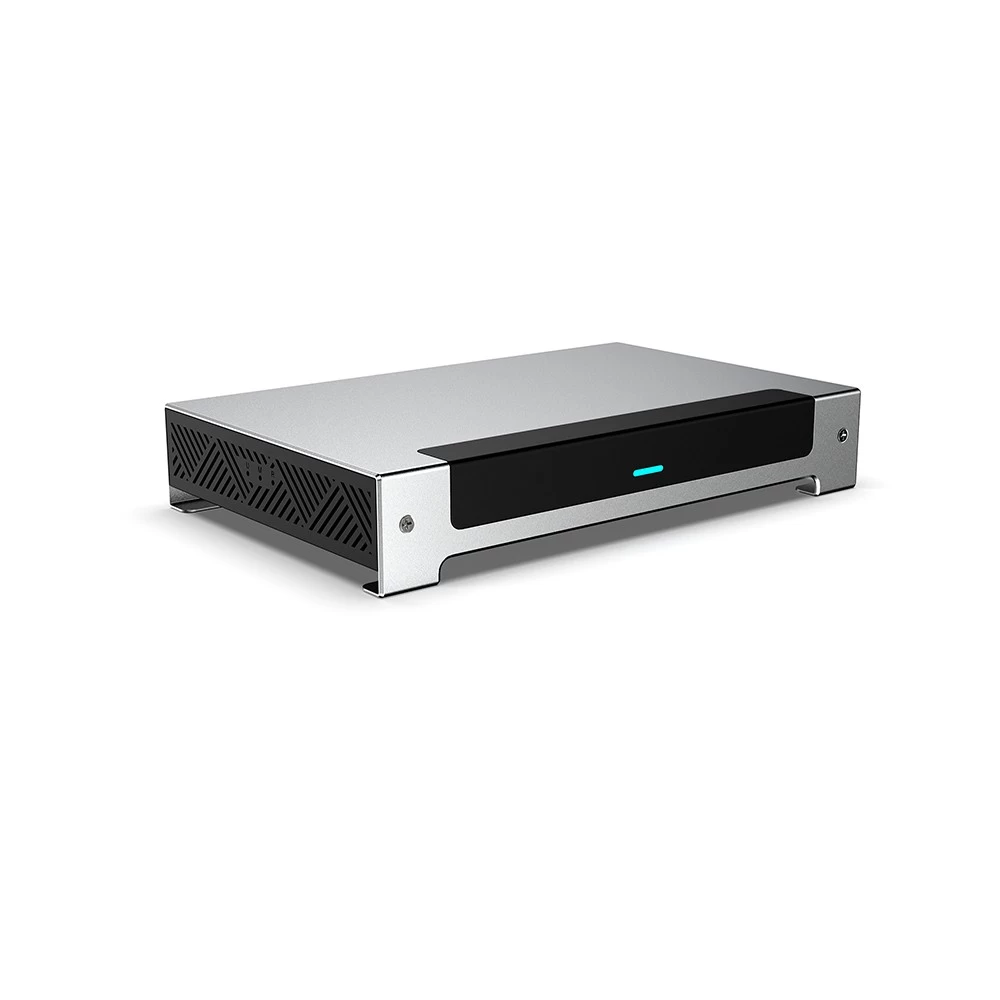

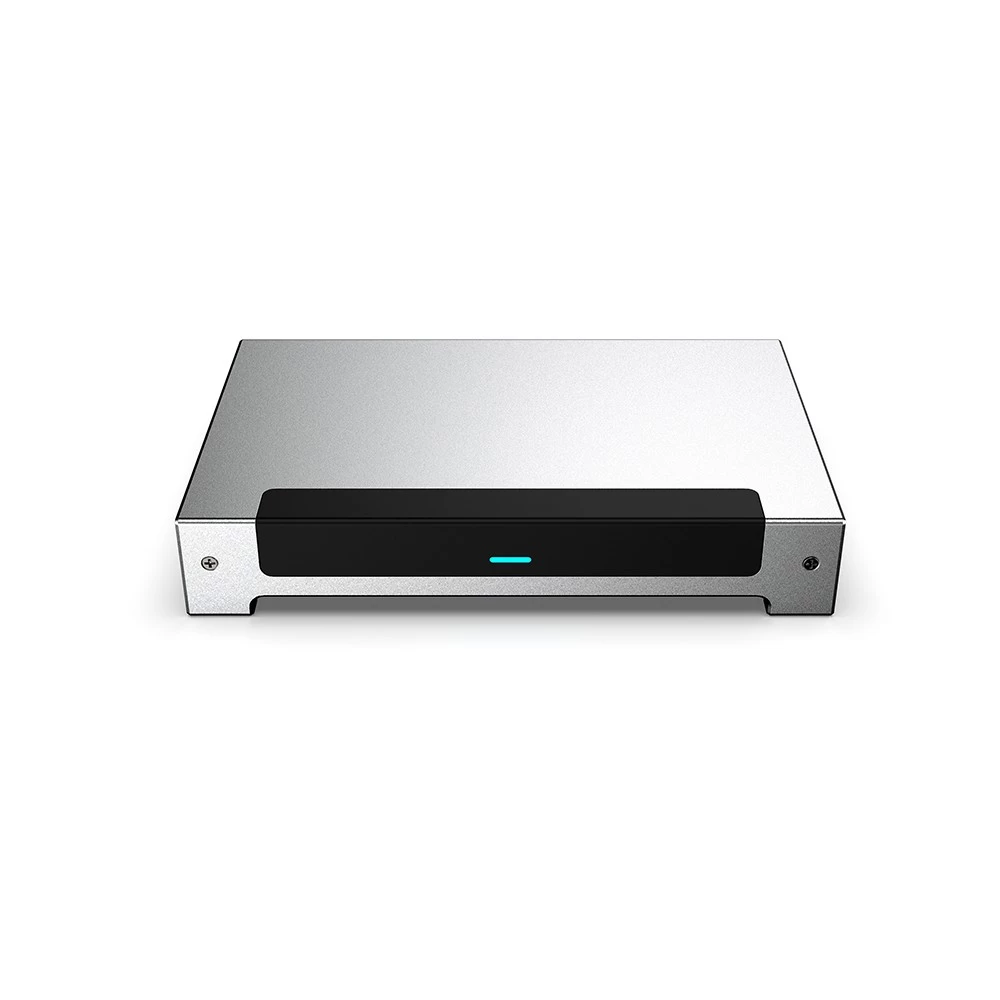

OEM ODM Rockchip RK3588 Octa Core Android 12 8K TV Box

Specifications

Model No.

Rockchip RK3588 Development Board

CPU

Rockchip RK3588 Octa-Core ARM, Quad-Core Cortex-A76 @2.4GHz and Quad-Ccore Cortex-A55@1.8GHz

GPU

ARM Mali-G610 MC4, OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, 1.2, OpenCL 1.1,1.2,2.0 Embedded high performance 2D image acceleration module

NPU

6 TOPS (Supports int4/int8/int16/FP16/BF16/TF32 Acceleration)

RAM

4GB LPDDR4X (2GB*2, Supports up to 32GB)

ROM

32G

WiFi

Built-in WiFi Module, 802.11 ax/ac/a/b/g/n

OS

Android 12

Bluetooth

Bluetooth 5.0

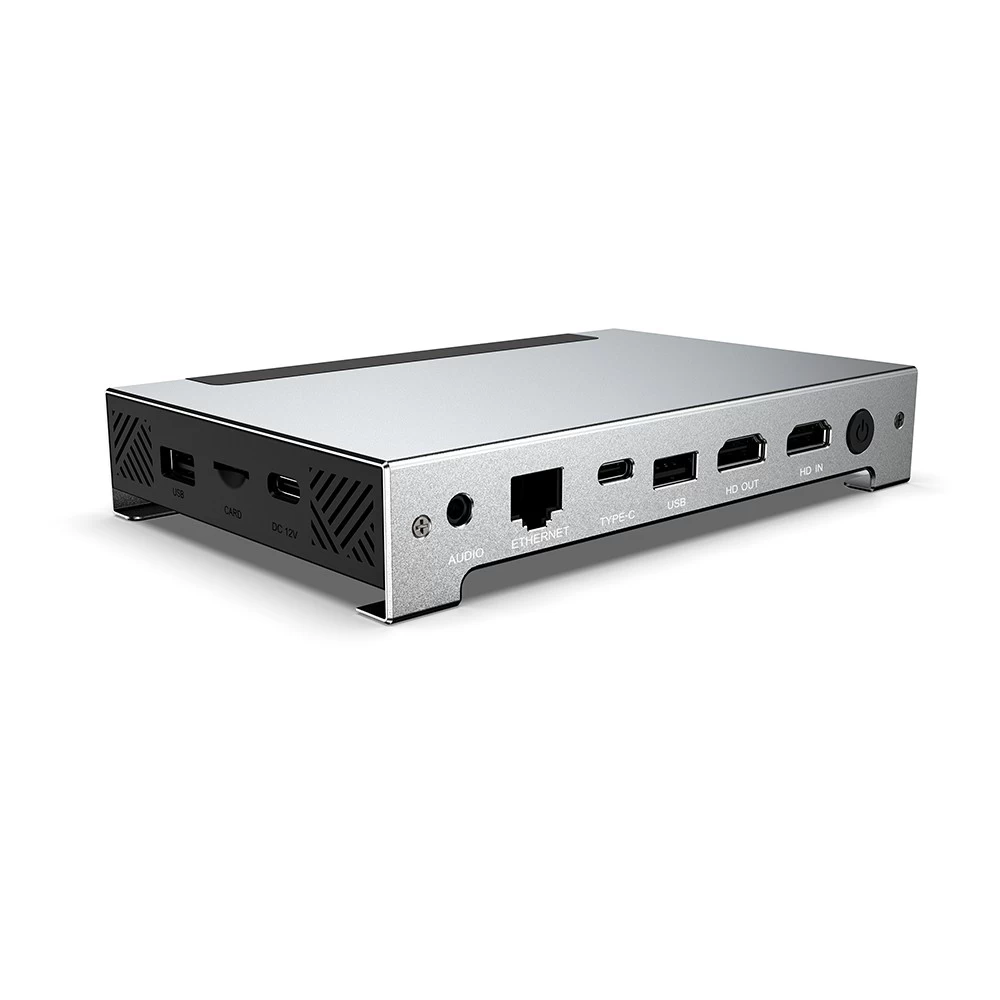

Hardware Interface

Power input

Type-C Port (12V/2A)

Storage Extension

1*TF Card Slot

1*PCIE Hard Disk Data Port

Remote Control

1* Infrared Remote Control Receiver

RTC Battery

CR1220 Button Battery Onboard

Serial Port

2*UART Serial Port

Ethernet

1* 10/100/1000 Mbps RJ45 Port

WiFi

Built-in WiFi Module, 802.11 ax/ac/a/b/g/n

USB Port

1*USB3.0 Port

1*USB2.0 Port

1* USB2.0 Port Reserved 4-Pin socket

LED Indicator

1*Three-Color LED Indicator

LCD Interface

1*Four-Channel 32-Pin Sequential MIPI interface

1*Dual-cChannel 30-Pin Sequential EDP interface

Video Output Interface

1*HD Output Port, Support HD 2.1 up to 8K@60Hz output

1*DP Output Port, Support DP1.4 up to 4K@60Hz output

Video input

1*MIPI-CSI (dual-channel)

1*HD input Port, Supports up to HD 2.0 4K@60Hz input

Audio interface

1*MIC

1*L/R, Left and Right Sound Channel Output (3.5mm Headset Port)

1*SPK

Other interfaces

7*GPIO, 3.3V Voltage

4*I2C, 3V Voltage, Support Touch Screen

1*ADC

2*PWM

1*5V Cooling Fan

Software Performance

Video&Audio CODEC

Decoding Performance:

Supports MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC and AV1@MMU embedded real-time video decoding;

Multi-channel parallel decoding, supporting lower resolutions;

H.264 AVC/MVC Main10 L6.0: support 8K@30fps(7680*4320);

VP9 Profile0/2 L6.1: Support 8K@60fps(7680*4320));

H. 265 HEVC/MVC Main10 L6.1: support 8K@60fps(7680*4320);

AVS2 Profile 0/2 L10.2.6: Support 8K@60fps(7680*4320);

AV1 main configuration file 8/10bit L5.3: Support 4K@60fps(3840*2160);

The MPEG-2 supports up to MP: 1080p@60fps(1920*1088);

The MPEG-1 supports up to MP: 1080p@60fps(1920*1088);

VC-1 supports up to AP level3: 1080p@60fps(1920*1088);

VP8 version2：1080p@60fps(1920*1088)

Multi-Channel Audio Decoding: MP3,AAC,FLAC,WAV and other mainstream audio formats.

Ethernet

Module: RTL8111HS

Performance: Support 10/100/1000 Mbps, providing stable and fast wired connection performance.

Function: Support auto-negotiation function to automatically identify and configure network speed and duplex mode.

WiFi & BT

Module: AP6275P

WiFi specifications:

Support 802.11ax/ac/a/b/g/n for high-speed wireless network connectivity of up to 2.4 Gbps.

Support 2.4GHz and 5GHz dual frequency bands, optimize signal intensity and interference minimize.

Support MU-MIMO technology to improve the data transmission efficiency during multi-user connection.

BT specifications:

BT 5.0, support all traditional BT features and high-speed transmission.

Support BLE (bluetooth low energy) technology.

Support multiple BT devices to connect simultaneously, ensuring stable connections and efficient communication..

Display Output

HDMI_TX supports up to 8K@60fps(7680x4320).

EDP supports up to 4K@60fps(3840x2160).

MIPI_CSI supports up to 4K@60fps(3840x2160).

DP(type-c) supports up to 4K@ 60fps(3840x2160).

Can be applied scene multi-screen display, different screen multi-display.

Input source

HDMI_RX supports up to 4K@60fps(3840*2160).

MIPI_DSI(for camera)

Suitable for PIP (picture-in-picture),conference machines and embedded external input source applications.

RTC

Chipset: HYM8563

This chip can maintain time operation through an external battery when the system is powered off, making it suitable for any application scenario that requires continuous tracking of time after power failure. It has basic alarm and timer functions, allowing you to set wake-up commands, which can be applied to timed on/off operations.
