4G LTE Android OTT Set-Top Box

  • Model No.: 4G LTE Android OTT Set-Top Box
  • CPU: Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz
  • GPU: ARM Mali-G31
  • Storage: 16GB/32GB EMMC
  • Memory: 2GB/4GB DDR4
  • Resolution: 4K x 2K up to 60fps
  • Android OS: Android 8.1/9.0/ATV
  • Blutooth: 4.1 Bluebooth
  • DRM: Widevine (Verimatrix/Playready optional)
  • Key: HDCP 2.2, Widevine level 1/level 3

4G LTE Android OTT Set-Top Box

Specifications

Model No.

4G LTE Android OTT Set-Top Box

CPU

Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz

GPU

ARM Mali-G31

Storage

16GB/32GB EMMC

Memory

2GB/4GB DDR4

Resolution

4K x 2K up to 60fps

Android OS

Android 8.1/9.0/ATV

Blutooth

4.1 Bluebooth

DRM

Widevine (Verimatrix/Playready optional)

Key

HDCP 2.2, Widevine level 1/level 3

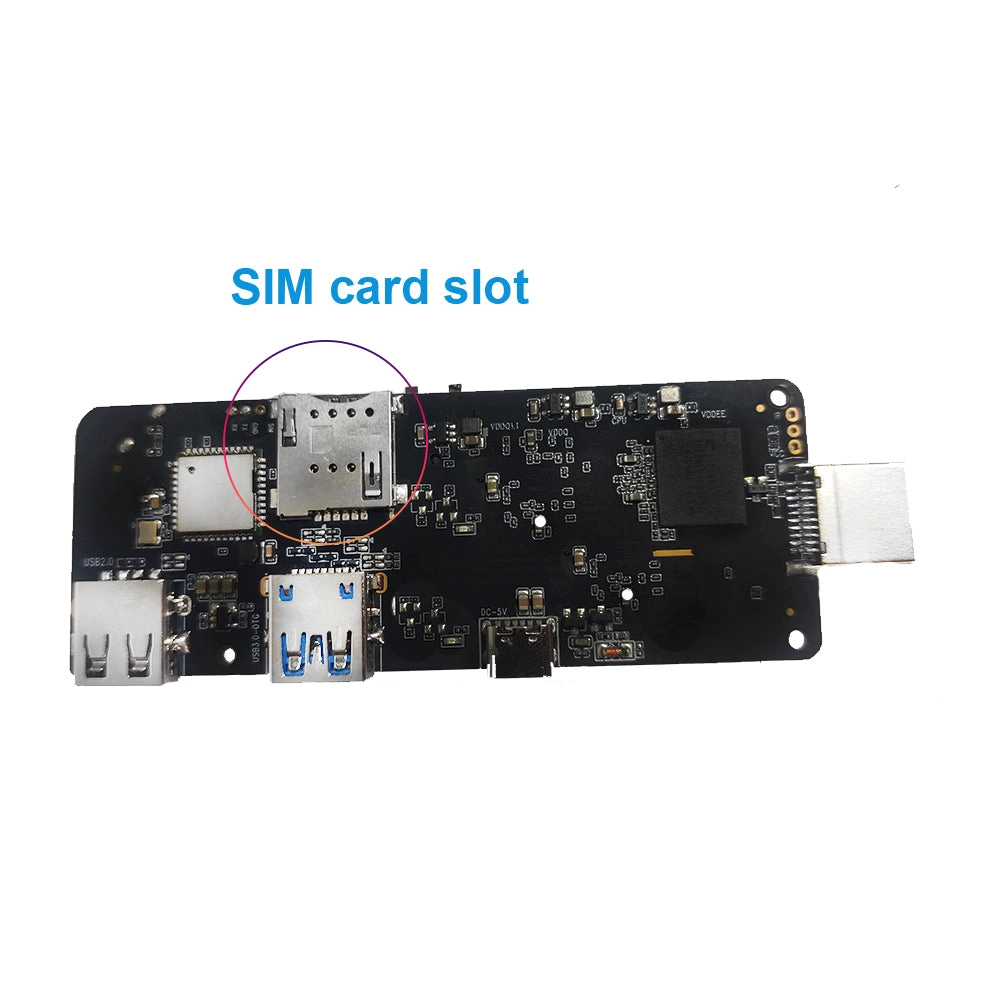

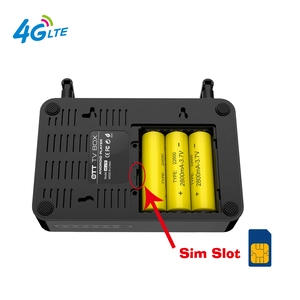

4G LTE Module(optional)

Internal 4G LTE Module(optional)

LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps

MHZ-E (EUROPE)

B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM

MHZ-A (AMERICA)

B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA,900/1800@GSM

MHZ-CE (CHINA/INDIA/Saudi Arabia)

B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM

MHZ-E(EMEA/KOREA/THAILAND/INDIA)

B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM

MHZ-V(NORTH AMERICA)

MHZ-V(NORTH AMERICA)

MHZ-A(NORTH AMERICA)

B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA

MHZ-AU(Latin America/ANZ/TAIWAN)

B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM

MHZ-J(JAPAN)

B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA

Video & Audio CODEC

Video& Audio

VP9/H.265/AVS2 up to 4Kx2K@60fps,H.264 4K @30fps, AVS+/VC-1/MPEG1-4 1080P @60fps H.264/H.265 1080P @60fps

HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6,RealVideo8/9/10

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE

HD JPEG/BMP/GIF/PNG/TIFF

HDR

HDR 10+, Dolby Vision

I/O

HDMI

HDMI 2.1 With 3D,HDR,CEC and 4Kx2K@60fps max resolution

AV OUT

Support

USB

1*USB 2.0, 1*USB 3.0 support USB Flash Drive and USB HDD)

RJ45

10/100M standard RJ-45 Ethernet

Network Function

Miracast,DLNA,Airplay,Skype,Netflix,Twitter,Picasa,Youtube,Flicker,Facebook,Online movies,Games,etc.

Wireless

WiFi 11ac+Bluetooth 4.1 IEEE802.11 a/b/g/n/ac(AP6255) 4G/5G

TF CARD

Support

SPDIF

Support Optical Output

IR Port

External Infrared Receiver

LED Indicator

Power on: Blue; Standby: Red

LED Display time

1* LED Display time, Built in RTC ,Built in USB device

Others

Power Supply

AC100-240V 50/60Hz, DC 5V/2A

Language

English, German, Russian, French, Spanish, Italian, Arabic, Japanese, Korean, Hebrew, etc. multi languages

Application

KODI newest version Support local high-definition play, support plug-in installation and play

Accessory

User manual, HDMI cable, IR remote, Power adadpter

Option

Support mouse and keyboard via USB or BT; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
