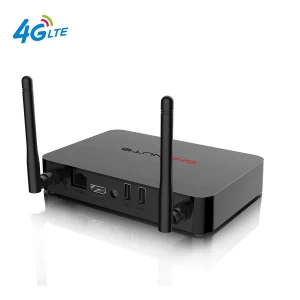

4G LTE Android TV Box

Model No.：4G LTE Android TV Box
CPU：Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
GPU：Penta-Core Mali-450 Up to 750Mhz+
SDRAM：1GB/2GB
Flash：8GB/16G/32G-eMMC (Optional)
WiFi：WiFi (802.11b/g/n) 2.4G/5G
Blutooth：BT4.0
Android OS：Android6.0/7.0
Transport protocols：DLNA, Airplay

4G LTE Android TV Box

Specifications
Model No.	4G LTE Android TV Box
CPU	Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
GPU	Penta-Core Mali-450 Up to 750Mhz+
SDRAM	1GB/2GB
Flash	8GB/16G/32G-eMMC (Optional)
WiFi	WiFi (802.11b/g/n) 2.4G/5G
Blutooth	BT4.0
LAN Ethernet	Ethernet:100M, Standard RJ-45
Android OS	Android6.0/7.0
Transport protocols	DLNA, Airplay
4G LTE Module(optional)
Internal 4G LTE Module(optional)	LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps
MHZ-E (EUROPE)	B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM
MHZ-A (AMERICA)	B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA, 900/1800@GSM
MHZ-CE (CHINA/INDIA)	B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM
MHZ-E(EMEA/KOREA/THAILAND/INDIA)	B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM
MHZ-V(NORTH AMERICA)	B4/B13@FDD LTE
MHZ-A(NORTH AMERICA)	B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA
MHZ-AU(Latin America/ANZ/TAIWAN)	B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM
MHZ-J(JAPAN)	B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA
Internal zigbee(optional)	Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN, @2400-2483.5MHz
Main Features
Video Docoder	H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K@30fps, AVS+ 1080P@60fps, H.264 1080P @60fps
Decoder format	HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6, RealVideo8/9/10
Media format	Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg
Music format	MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE
Photo format	HD JPEG/BMP/GIF/PNG/TIFF
Network Function	Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc.
Language	Chinese, English ,Germany, Japanese, Korea etc.
Port Specifications
USB host	2* external USB2.0, 2*internal USB 2.0
Card reader	1* TF CARD

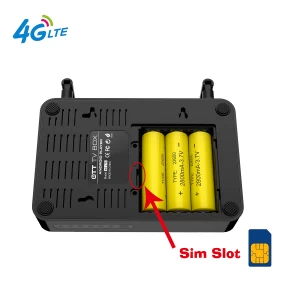

Micro-SIM	1* Micro-SIM, 1* hidden Micro-SIM card slot
HDTV	1* HDTV output
LAN	1* RJ45 LAN Ethernet 10M/100M
AV OUT	1* AV-OUT/IR-in (optional)
Others
Power Supply	Input100-240V AC, Output5V/2A DC
Internal recharge lithium battery(optional)	18650 battery 1-3 pcs or equivalent battery module

Amlogic S905X Quad core wiht 4G-LTE Set-Top Box

Why choose 4G LTE Android TV Box？

1. With the 4G LTE Modules, use the network anytime, anywhere, No restrictions on WIFI and network cable.

2. Different 4G LTE modules for selection. Support multiple countries to meet the needs of different customers.

3. Built in battery inside of the player, can update the time properly without the internet, ideal for customers with digital signage.

4. The Advantage of humanized design, the player has four holes on the back , can be hung behind the screen, moreover, the size is very mini, suitable for digital signage customers.

5. High cost performance, high configuration, good quality.
