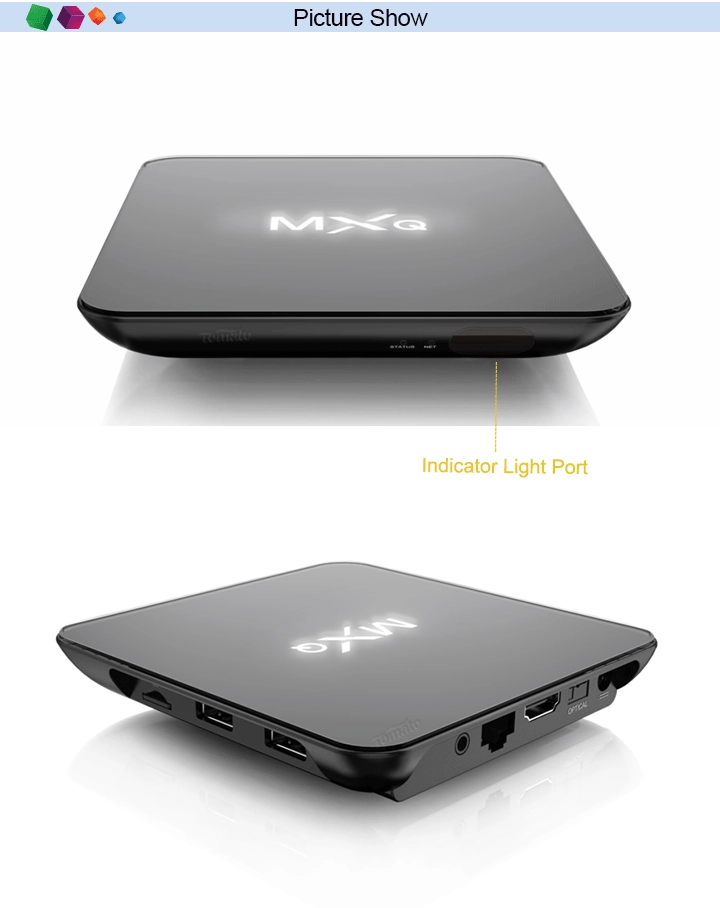

Digital Signage Quad Core Android TV Box G9C

  • Model: G9C
  • 1. Digital Signage Quad Core Android TV Box
  • 2. Amlogic S905 Quad Core ARM Cortex-A53 CPU up to 2.0 GHz (DVFS)
  • 3. Penta-Core Mali-450 Up to 750Mhz+
  • 4. 8GB NAND FLASH
  • 5. 1GB DDR3
  • 6. Android 5.1 Lollipop
  • 7. HDMI 2.0 (CEC and HDCP 2.2), 4K*2K @60 fps
  • 8. Support IEEE802.11 b/g/n Bluetooth 4.1EDR
  • 9. 2 High Speed USB 2.0, Support U DISK And USB HDD
  • 10. Ethernet:1000M, Standard RJ-45 (optional IEEE 802.3 10/100/1000 Gigabit)

Digital Signage Quad Core Android TV Box G9C

Digital Signage Quad Core Android TV Box G9C



Hardware Specifications

Model No.

G9C

CPU

Amlogic S905 Quad Core ARM Cortex-A53 CPU up to 2.0 GHz (DVFS)

GPU

Penta-Core Mali-450 Up to 750Mhz+

FLASH

8GB EMMC

SDRAM

1GB DDR3

Power Supply Specifications

Power Supply

DC 5V/2A

Power Indicator (LED)

Power ON:blue; Standby:Red

Main Features

OS

Android™ 5.1 Lollipop

3D

3D-HD 1080Px2

Support Decoder Format

HD MPEG1/2/4,H.264/H.265, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,

RealVideo8/9/10,HEVC MP-10

Support Media Format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/Wmv/Asf/Flv/Dat/Mpg/Mpeg/MP4

Support Music Format

MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE

Support Photo Format

HD JPEG/BMP/GIF/PNG/TIFF

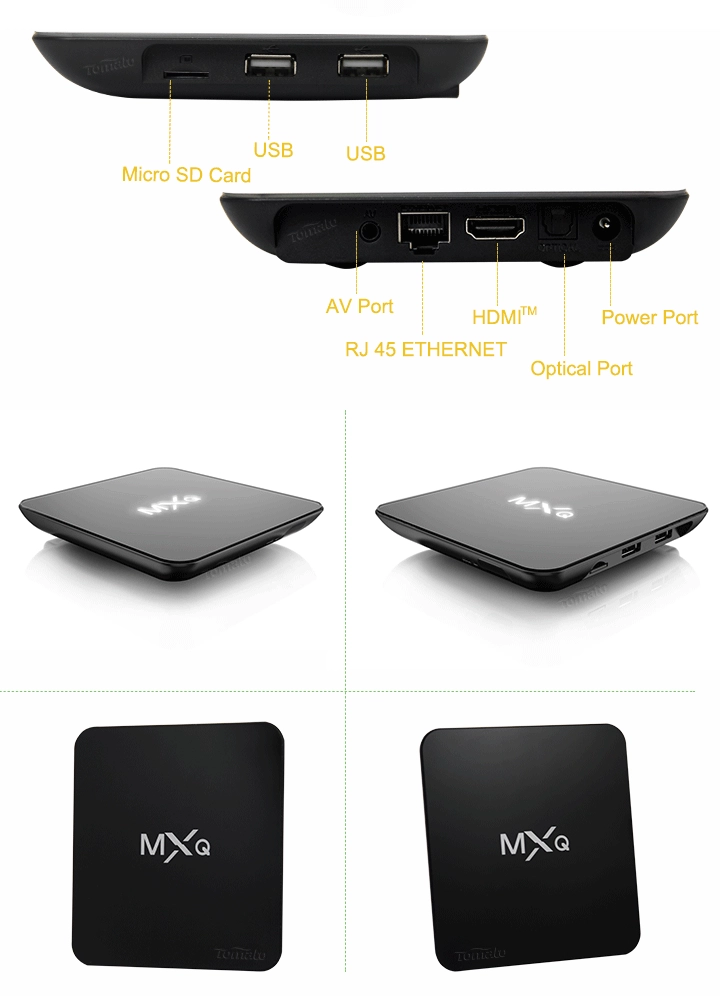

USB Host

2 High Speed USB 2.0,Support U DISK And USB HDD

Card Reader

SD/SDHC/MMC Cards

HDD File System

FAT16/FAT32/NTFS

Support Subtitle

SRT/SMI/SUB/SSA/IDX+USB

High Difinition

Video Output

Support All Standard SD/HD/4K2K Ultra HD Decoding And Output

OSD type of languages

English/French/German/Spanish/Italian etc Multilateral Languages

LAN

Ethernet:1000M, Standard RJ-45 (optional IEEE 802.3 10/100/1000 Gigabit )

Wireless

Support IEEE802.11 b/g/n Bluetooth™ 4.1EDR

Mouse/Keyboard

Support Mouse And Keyboard Via USB;Support 2.4GHz Wireless Mouse And Keyboard Via 2.4GHz USB Dongle

HDMI™

HDMI™ 2.0 (CEC and HDCP 2.2), 4K*2K @60 fps

AV

Support

Optical

Support

3G

Support

SPDIF/IEC958

Optical

IPTV And OTT

Support Many Kinds of IPTV And OTT Programmes

Software Specifications

Network Function

Miracast, Kodi, Airplay, Skype Chatting, Picasa, Youtube, Flicker, Facebook, Online Movies, etc

Other Feature

Free Internet Searching,Thousands of Android Applications,Many Kinds of Games,etc



What's in the box?

1 * Digital Signage Quad Core

1 * HDMI Cable

1 * Remote Control

1 * Power Adapter

1 * User Manual
