HD Digital Set Top Box Amlogic S922X Quad CoreHD Digital Set Top Box Amlogic S922X Quad CoreHD Digital Set Top Box Amlogic S922X Quad Core

HD Digital Set Top Box Amlogic S922X Quad Core

  • Model No.:Amlogic S922X Set Top Box
  • CPU:Amlogic S922X 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU
  • GPU:ARM MaliTM-G52 MP4 GPU processor
  • ROM:2GB/4GB LPDDR4
  • Internal Storage:16GB/64GB eMMC
  • OS:Android 9.0
  • SIM:MICRO SIM
  • 4G:PCIE Port
  • HDD:Support SATA Max2TB

HD Digital Set Top Box Amlogic S922X Quad Core

HD Digital Set Top Box Amlogic S922X Quad Core

Specifications

Model No.

Amlogic S922X Digital Set Top Box

CPU

Amlogic S922X 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU

GPU

ARM MaliTM-G52 MP4 GPU processor

ROM

2GB/4GB LPDDR4

Internal Storage

16GB/64GB eMMC

OS

Android 9.0

Video&Audio CODEC

Video/Picture CODEC

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

HW UHD 4K H.265 75fps 10-bit video decoder & low latency 1080p H.265/H.264 60fps encoder

Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps

Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

Video/Picture Decoding

VP9 Profile-2 up to 4Kx2K@60fps

H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

AVS2-P2 Profile up to 4Kx2K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P@60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

H.265/H.264 video encoding up to 1080P@60fps with low latency

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Supports Dolby VisionOptional, HDR10, HDR10+, HLG and PRIME HDR processing

Video/Picture Encoding

Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate

JPEG image encoding H.265/H.264 video encoding up to 1080P@60fps with low latency

Video Output

Built-in HDMI 2.1 transmitter including both controller and PHY with CEC, Dynamic HDR and HDCP 2.2,

4Kx2K@60 max resolution output CVBS 480i/576i standard definition output

Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K 4-lane MIPI DSI interface,

resolution up to 1920*1080 with rotation and panel calibration

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 built-in TDM/PCM/I2S ports with

TDM/PCM mode up to 84kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bitsx8ch

Digital microphone PDM voice input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

Decoder Format

HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10

Media Format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

Music Format

MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE

Photo Format

HD JPEG/BMP/GIF/PNG/TIFF

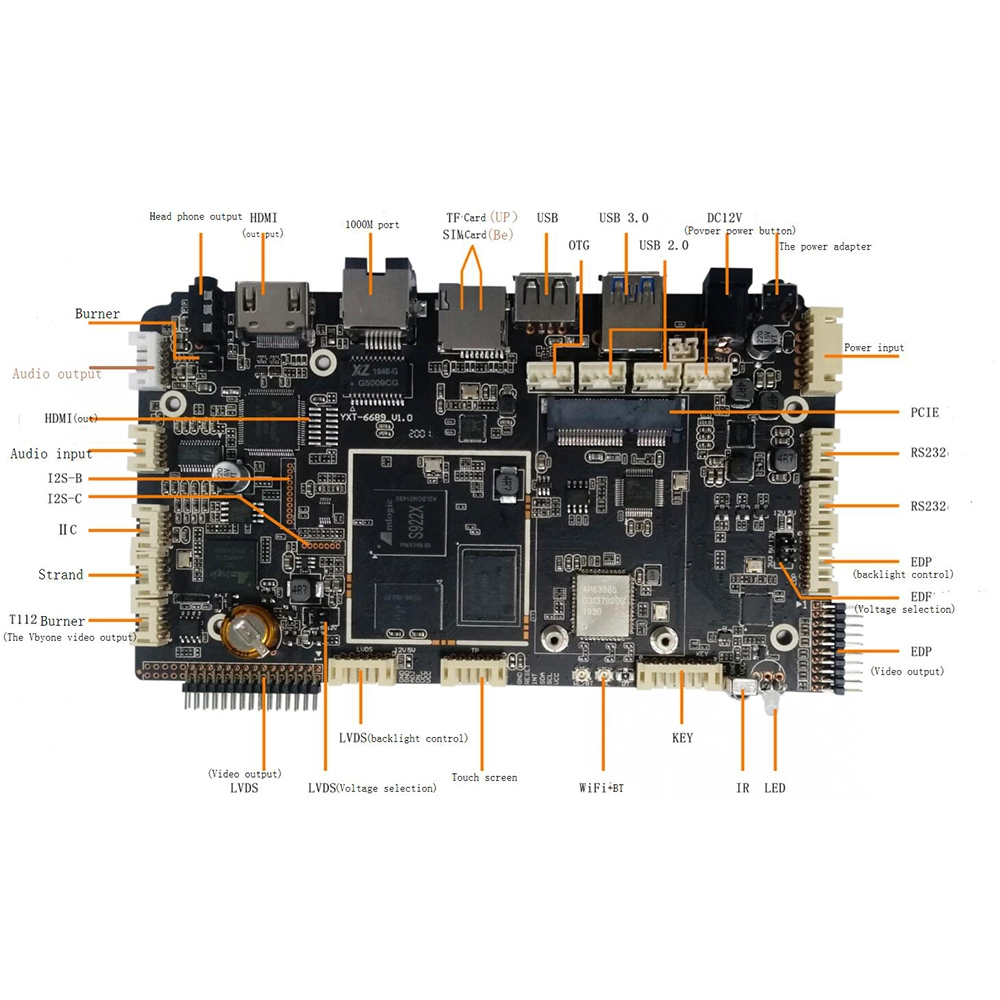

Port

USB host

USB2.0, Max480Mbps/USB3.0, Max5.1Gbps

SIM

MICRO SIM

HDMI

HDMI 2.2/1ch Lvds/1ch EDP

LAN

RJ45 wire Ethernet connection 100/1000M Ethernet support

WiFi/ Bluetooth

AP6398S(Wi-Fi+BT) 2.4G+5.8G

4G

PCIE Port

TF

microSD(Max 128G)

HDD

Support SATA Max2TB(Not included)

Power

Power Supply

12V DC/3AΦ5.5*Φ2.5mm

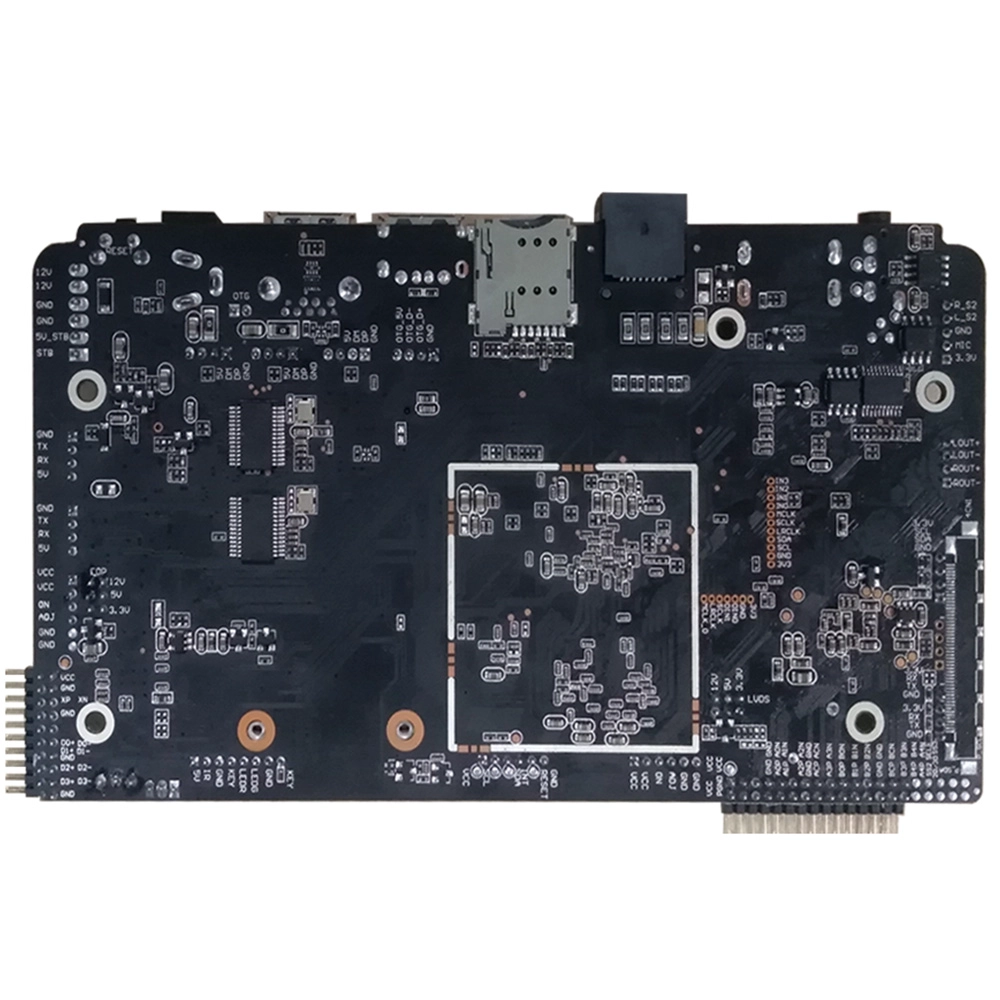

This product is the network Android system motherboard, which is suitable for intelligent display terminal equipment, industrial automation terminal, computer vision/algorithm, 3D experience, game/entertainment equipment, high-performance Face Recognition calculation/storage, AI intelligence with high performance requirements. It can be widely used as the high-end demand intelligent mainboard of finance, advertising, security, transportation, public transportation and other industries.

This product adopts the latest generation of 12 nm ultra-low power AI chip s922x of Amlogic. It is an advanced application processor, integrating a powerful CPU, GPU subsystem, secure 4K video codec engine and first-class HDR image processing. The CPU of S922x main system adopts large and small architecture, which integrates four core arm cortex-a73 CPU cluster and dual core cortex-a53 cluster with unified secondary cache to improve system performance. Each CPU core includes a separate neon SIMD coprocessor to improve the software media processing capacity. Ave-10 can decode 4kx2k resolution video at a speed of 75 frames/second, and has a complete trusted video path (TVP) for security applications, supporting complete formats, including: MVC, MPEG-1/2/4, vc-1/WMV, AVS, AVS +, avs2 realvideo, MJPEG stream, H.264, h265-10, VP9 and JPEG pictures without size restrictions. The independent encoder can encode JPEG or h.265/h.264 format, up to 1080p, 75 frames per second. It supports 4kx2k @ 60fp (3840 * 2160) output of hdmi2.2 interface and 4K point screen of V by one interface. It supports HDCP 2.2, stereo audio DAC, CVBS output, 4-channel Mipi DSI interface, multi TDM, PCM, I2S and SPDIF digital audio I/O interface, 8-Channel far-field PDM digital microphone (dmic) input and DVP camera interface. The product comes with 2x2 WiFi (supporting 2.4G and 5.8G dual frequency) + 4.1 wireless network module, supporting Gigabit Ethernet interface and infrared remote control, keyboard and mouse operation.

Highlights

o      Amlogic 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU

o      ARM Mali-G52 MP4 GPU processor

o      HW UHD 4KH.265 75fps 10-bit video decoder & low latency 1080p H.265/H.264 60fp sencoder

o      Dolby Visionand HDR10, HDR10+, HLG and PRIME HDR video processing

o      Build in Cortex-M4 core for always on processing

o      TrustZone based security for DRM video streaming

o      WIFI, BT,USB, SD, Ethernet, Analog Audio

o      Power management auxiliary processor

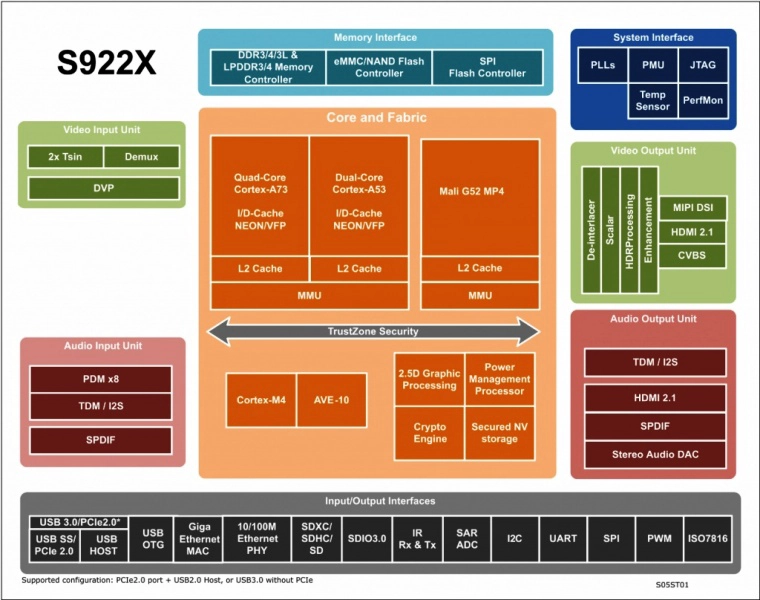

Amlogic S922X is an advanced application processor designed for Android hybrid OTT/IPTV Set Top Box(STB) and high-end media box applications. It integrates a powerful CPU, GPU subsystem, a secured 4K video CODEC engine and a best-in-class HDR image processing pipeline withall major peripherals to form the ultimate high-performance multimedia AP.



The main system CPU is based on Big. Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual-core Cortex-A53 cluster with united L2 cache to improve systemper formance. Each CPU core includes the separate NEON SIMD co- processor toimprove software media processing capability.



The graphic subsystem consists of twographic engines and a flexible video/graphic output pipeline. The ARM Mali-G52 MP4 GPU handles all OpenGL ES 3.2 Vulkan 1.0 and OpenCL 2.0 graphic programs, while the 2.5D graphics processor handles additional scaling, alpha, rotation and color space conversion operations. Together, the CPU and GPU handle all operating system, networking, user-interface and gaming relatedtasks. The video output pipeline includes Dolby Visionoptional HDR10, HDR10+,HLG and PRIME HDR processing, REC709/BT2020 processing, motion adaptive edgee nhancing de-interlacing, flexible programmable scalar, and manypicture enhancement filters before passing the enhanced image to the video outputports.



Amlogic Video Engine (AVE-10) offloads the Cortex-A53 CPUs from all video CODEC processing. It includes dedicated hardwarevideo decoder and encoder. AVE-10 is capable of decoding 4Kx2K resolution videoat 75fps with complete Trusted Video Path (TVP) for secure applications andsupports full formats including MVC, MPEG- 1/2/4, VC-1/WMV, AVS, AVS+, AVS2 RealVideo, MJPEG streams, H.264, H265-10, VP9 and also JPEG pictures with nosize limitation. The independent encoder is able to encode in JPEG orH.265/H.264 up to 1080p at 60fps.



Amlogic S922X integrates all standard audio/video input/output interfaces including a HDMI2.1 transmitter with 3D, Dynamic HDR, CEC and HDCP 2.2 support, stereo audio DAC, a CVBS output, 4-lane MIPI DSI interface, multiple TDM, PCM, I2S and SPDIF digital audio input/outputinterfaces, 8 channel far-field PDM digital microphone (DMIC) inputs and a DVPcamera interface.



Amlogic S922X also integrates a set offunctional blocks for digital TV broadcasting streams. The built-in two demuxcan process the TV streams from the serial and parallel transport stream inputinterface, which can connect to external tuner/demodulator.



The processor has rich advanced network andperipheral interfaces, including a 10/100/1000M Ethernet MAC with RGMII,10/100M Ethernet PHY, one USB XHCI OTG 2.0 port, one USB3.0 and PCIeHD Digital Set Top Box Amlogic S922X Quad CoreHD Digital Set Top Box Amlogic S922X Quad CoreHD Digital Set Top Box Amlogic S922X Quad Core



Our HD Digital Set Top Box, featuring the powerful Amlogic S922X Quad Core processor, is designed to revolutionize your entertainment experience. Here's why it's the perfect choice for your home:

  1. Superior HD Quality: Immerse yourself in stunning high-definition visuals with support for up to 4K resolution, ensuring every detail is crisp and clear on your screen.

  2. Seamless Streaming: Stream your favorite movies, TV shows, and videos without interruption, thanks to our set top box's robust Wi-Fi connectivity and Ethernet port for stable internet access.

  3. Powerful Performance: The Amlogic S922X Quad Core processor delivers lightning-fast performance, enabling smooth multitasking and quick app launches for a seamless user experience.

  4. Versatile Entertainment: Access a wide range of streaming services, including Netflix, Hulu, YouTube, and more, directly from your TV screen, and discover endless entertainment options at your fingertips.

  5. Smart Features: Our set top box comes with smart features like voice control, allowing you to search for content, adjust settings, and control playback using simple voice commands.

  6. Expandable Storage: Store your favorite movies, music, and photos locally with support for external storage devices via USB ports or microSD card slots, giving you ample space for your media library.

  7. Easy Setup and Installation: Our HD Digital Set Top Box is easy to set up and install, with simple plug-and-play functionality that lets you start enjoying your favorite content in minutes.

  8. Energy-Efficient Design: Designed with energy efficiency in mind, our set top box consumes minimal power while delivering maximum performance, helping you save on energy costs over time.

  9. Sleek and Compact: With its sleek and compact design, our set top box complements any home entertainment setup, blending seamlessly into your living room or media center.

  10. Reliable Support: Backed by our dedicated customer support team, you can count on prompt assistance and reliable service whenever you need it, ensuring a hassle-free experience with our product.

Upgrade your home entertainment setup with our HD Digital Set Top Box and enjoy the ultimate viewing experience from the comfort of your own home.
