Best CPU Platforms for Set-Top Box (STB) in 2026: An Enterprise Hardware Procurement Guide

The deployment of enterprise Set-Top Box (STB) networks—spanning hospitality IPTV configurations, mission-critical interactive kiosks, and decentralized edge-computing media installations—faces an infrastructure bottleneck. The industry-wide transition toward high-bitrate AV1 encoding and the emergence of the H.266 Versatile Video Coding (VVC) matrix have rendered legacy quad-core Cortex-A55 silicon structurally obsolete.

For B2B system integrators, selecting an optimization platform is no longer about raw benchmark metrics. It requires matching application-specific software stacks directly to Application Specific Integrated Circuit (ASIC) hardware pipelines. Operating a global device fleet without a clear understanding of System-on-Chip (SoC) architecture, processing thermal constraints, and peripheral pipeline limits guarantees high field failure rates and escalating software maintenance costs.

1. The Heavyweight Multimedia Core: Amlogic S928X

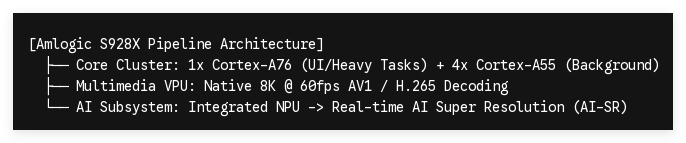

For high-throughput, premium video infrastructure networks, the Amlogic S928X represents the performance standard for high-fidelity video processing. Moving away from standard symmetric quad-core layouts, this processor uses an asymmetrical 1+4 "Big.LITTLE" architecture, pairing a single high-performance ARM Cortex-A76 core with four energy-efficient Cortex-A55 cores.

The single Cortex-A76 core acts as an execution engine for high-density UI rendering and complex application launching, while the background efficiency cluster handles system operations. This ensures completely smooth, un-throttled navigation even under heavy application strain.

Enterprise Video Processing Capabilities:

• 8K Video Processing: Decodes native 8K content at 60 frames per second. This is critical for driving matrix video wall processors where a single Set-Top Box (STB) split-streams high-definition outputs across multiple 4K panels.
• On-Chip NPU Integration: Features an integrated Neural Processing Unit (NPU) capable of executing real-time AI Super Resolution (AI-SR). This lets operators upscale standard 1080p feeds to near-4K resolution directly on the edge, reducing distribution bandwidth costs across content delivery networks (CDNs).

2. The High-Efficiency Streamer: Amlogic S905X5

Where the S928X targets raw processing power, the Amlogic S905X5 targets optimized mass deployment efficiency. Built on a modern 6nm class process node, it provides a major efficiency upgrade over older 12nm legacy architectures.

Next-Gen Armv9 Compute Cluster

The S905X5 features a quad-core Armv9 Cortex-A510 layout, yielding a significant processing speed increase over older Cortex-A55 models while drawing less power. This specific balance makes the platform ideal for large-scale Over-The-Air (OTT) streaming configurations and hospitality environments that require continuous operation within tight thermal boundaries.

Codec Protection and Future-Proofing

The platform includes built-in hardware acceleration for H.266 (VVC) and AV1 decoding pipelines. This codec configuration allows enterprise operations to reduce network transmission overhead without increasing local CPU consumption. Additionally, its embedded 4 TOPS NPU easily manages local UI scaling, programmatic audio classification, and edge-level analytics.

3. The Industrial Generalist: Rockchip RK3588

When an interactive deployment requires more than simple media decoding—such as retail spaces utilizing computer vision, edge AI analytics, or multi-camera inputs—the Rockchip RK3588 serves as the primary option for system integrators.

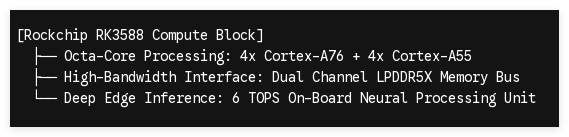

This octa-core processor (4x Cortex-A76 and 4x Cortex-A55) features a high-performance 6 TOPS NPU. The RK3588 can simultaneously manage multiple computing tasks, such as decoding a local 4K video stream, running real-time audience analytics via an attached USB camera, and syncing local database records without frame drops. Its expansive interface infrastructure supports dual Gigabit Ethernet lines, PCIe expansion lanes, and multi-display outputs, providing the hardware flexibility needed for complex industrial system integrations.

4. Silicon Architecture Breakdown for Strategic Sourcing

To assist procurement teams in aligning their application profiles with the appropriate silicon solutions, the following table details the technical parameters of the dominant 2026 Set-Top Box (STB) CPU platforms:

5. Engineering Beyond the Datasheet: Implementing Custom Infrastructure

Selecting the right processor is only the first step in commercial deployment. A high-performance SoC will experience performance degradation within minutes if the underlying hardware platform suffers from poor engineering.

At SZTomato, our engineering team works directly at the hardware layer to ensure long-term reliability for your deployments:

• PCBA Layout Modification: We separate the high-draw Power Management Integrated Circuit (PMIC) away from the main SoC core using thick copper pours. This prevents localized heat zones and stabilizes internal voltage rails during intense processing spikes.

• Industrial Cooling Integration: We replace standard retail thermal solutions with oversized, high-mass passive aluminum heatsinks. These are mounted using phase-change thermal pads to keep internal temperatures safely below 65°C inside unventilated commercial display enclosures.

• Firmware and Kernel Optimization: Our team provides custom Android and Linux kernel modifications, allowing your software development teams to interact directly with hardware decoders and secure HDCP key injection paths, entirely bypassing standard OS-level restrictions.
