What is the Android Mini PC that gets all the channels?

Multi-Protocol Stream Decoding: Architecture Behind the Commercial Android Mini PC

Commercial venue operators, system integrators, and telecom providers often face end-user inquiries regarding "all-channel" Android Mini PCs. In B2B deployments, seamless channel delivery is not a function of pre-installed consumer apps. Instead, it relies on how effectively the hardware platform parses concurrent IP transport streams, executes real-time hardware decoding across diverse video formats, enforces content protection standards, and avoids system lockups.

Deploying generic consumer streaming sticks into commercial environments introduces severe failure modes: unmanaged background OS updates, aggressive memory reclamation that kills background streaming daemons, and thermal throttling on low-cost 2-layer PCBAs. Building a resilient stream-decoding infrastructure requires engineered hardware and low-level software control.

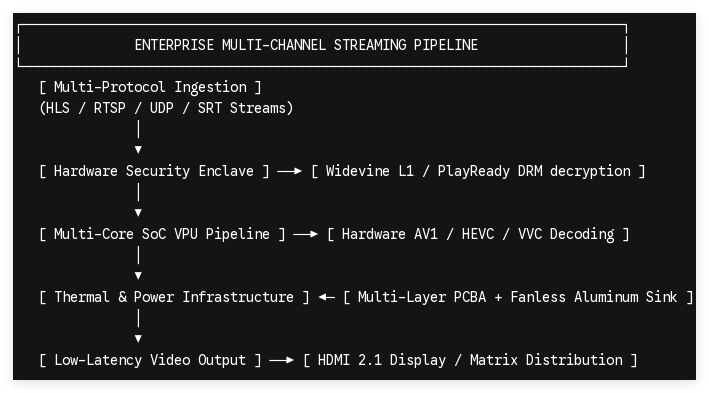

1. Stream Ingestion Architecture & Codec Pipeline Efficiency

Delivering broadcast-quality video streams—whether for multi-channel IPTV networks, hospitality entertainment systems, or live-feed commercial displays—starts at the System-on-Chip (SoC) VPU floor plan. Modern video distribution protocols (including HLS, DASH, RTSP, and SRT) require constant network buffer management and real-time hardware decoding.

[ Raw IP Stream ] ──► [ Dedicated VPU Core ]
│
▼
[ AI-SR Upscaler ]
│
▼
[ Security Enclave ] ──► [ HDMI 2.1 Output ]

Advanced Codec Processing: AV1 & HEVC Hardware Decoding

Bandwidth optimization is a critical cost driver for operator networks. Modern ARM silicon platforms—such as the 6nm Amlogic S905X5 and the octa-core Rockchip RK3588—integrate dedicated hardware decoders for AV1, H.265 (HEVC), and H.266 (VVC) at up to 4K@60fps and 8K@60fps resolutions. Utilizing AV1 yields up to a 30% reduction in bitrate requirements compared to H.265 at equivalent visual fidelity, enabling operators to deliver more high-definition channels over constrained network pipes.

Furthermore, integrated Neural Processing Units (NPUs), such as the 4 TOPS NPU in the Amlogic S905X5 and the 6 TOPS NPU in the Rockchip RK3588, run AI-Super Resolution (AI-SR) algorithms directly on the chip. This upscales legacy 1080p stream feeds into crisp 4K display outputs without burdening CPU cores or increasing WAN bandwidth intake.

Hardware Security & DRM Enclaves

Legal distribution of premium live streams and broadcast feeds requires robust content protection. Silicon architectures must integrate ARM TrustZone with isolated Trusted Execution Environments (TEE). Hardware-enforced Widevine L1 and PlayReady 3.0 processing ensures decrypted video frames remain contained within protected memory enclaves, never crossing exposed bus lines where they could be intercepted.

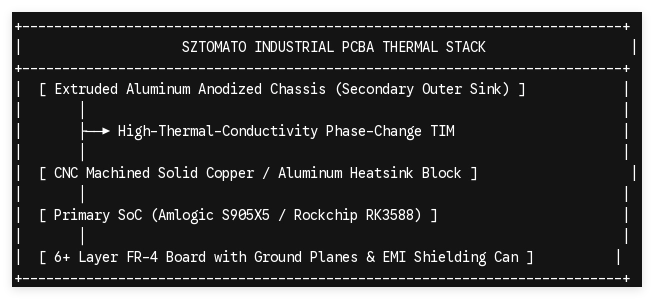

2. PCBA Hardware Modification & Thermal Design for 24/7 Reliability

Standard consumer TV boxes suffer thermal throttling within hours of continuous video decoding, leading to dropped frames, visual artifacts, and device lockups. Enterprise media delivery demands specialized Printed Circuit Board Assembly (PCBA) design.

Architectural Comparison: Consumer Box vs. Enterprise Industrial PCBA

SZTomato tailors hardware designs for ruggedized B2B environments. Engineering customizations include multi-layer PCBAs to suppress electromagnetic interference (EMI), Power over Ethernet (PoE) modules to eliminate AC power adapters, RS232 serial interfaces for direct AV control matrix integration, and programmable GPIO ports for external triggers and sensor arrays.

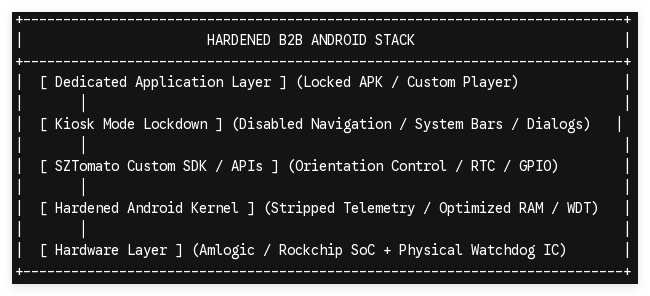

3. Firmware Hardening: Android Kernel Optimization & Kiosk Mode

Software reliability is as crucial as hardware durability. Standard consumer Android OS distributions run background sync engines, consumer telemetry services, and automated memory management scripts that can shut down background streaming applications.

Deep Firmware Engineering Capabilities

SZTomato’s software engineering team works within the Android Open Source Project (AOSP) and Linux kernel layers to provide hardened OS builds:

• Application Kiosk Lockdown: Complete removal of standard consumer launcher interfaces. Devices auto-boot directly into your specified streaming APK, with system navigation bars, gesture controls, and pop-up error dialogs fully suppressed.

• Kernel Watchdog & Auto-Recovery: Software and physical Watchdog IC timers continuously monitor system heartbeats. If an unhandled crash or kernel panic occurs, power is cycled automatically to restore operation without field technician intervention.

• System API & SDK Exposure: Custom APIs give software developers programmatic control over hardware functions, including boot-time screen rotation (0°/90°/180°/270°), HDMI-CEC power sync, and Real-Time Clock (RTC) wake-up schedules.

• Private OTA Infrastructure: Secure Over-The-Air update pipelines allow system administrators to deploy differential delta packages across device fleets. A/B dual-bank system partitions guarantee zero risk of bricking during remote field updates.

Technical Hardware Specification Reference

Below are the hardware specifications for an enterprise-grade Android 14 / Linux ARM Media Platform engineered by SZTomato for high-density streaming and multi-display management:

[System Core]
SoC Architecture    : Rockchip RK3588 Octa-Core (4x Cortex-A76 + 4x Cortex-A55) / Amlogic S905X5
GPU Hardware        : ARM Mali-G610 MP4 / Mali-G310 V5 with Vulkan 1.2 & OpenCL 2.0
NPU Performance     : 3.2 TOPS to 6.0 TOPS (Integrated AI-SR & Edge Inferencing)
System Memory       : 4GB / 8GB / 16GB LPDDR4x / LPDDR5
Internal Storage    : 32GB to 128GB eMMC 5.1 (Optional M.2 NVMe SSD via PCIe 3.0)
[Video & Decoding Architecture]
Video Decoders      : AV1 MP-10@L5.1, H.265/HEVC, H.266/VVC, VP9, AVS2 up to 8K@60fps
Multi-Display Out   : Up to 4x Independent Displays (HDMI 2.1 8K@60fps, DP 1.4, MIPI-DSI)
Security Architecture: ARM TrustZone, Widevine L1, PlayReady 3.0, TEE
[Network & Industrial I/O]
Ethernet Controller : Dual Gigabit RJ45 Ports (10/100/1000 Mbps) with PoE 802.3at support
Wireless Networking : Wi-Fi 6 (802.11ax 2x2 MIMO) + Bluetooth 5.2 / M.2 slot for 5G/4G LTE
Industrial Ports    : 1x RS232/485 DB9, 4x Programmable GPIO, 2x USB 3.0, 2x USB 2.0
Thermal Rating      : -10°C to +60°C continuous operational ambient temperature

Enterprise B2B Sourcing: Partnering with SZTomato

The most reliable Android Mini PC for channel streaming and media distribution is not a generic consumer box—it is a purpose-built, enterprise-customized hardware and software solution engineered for your exact operational requirements.

With 16 years of specialized B2B cross-border manufacturing expertise, Shenzhen Tomato Technology Co., Ltd. (SZTomato) converts raw silicon into turnkey commercial computing platforms. From initial schematic design and multi-layer PCBA engineering to deep Android kernel customization and global OTA platform management, SZTomato provides the technical foundation for scalable commercial deployments.

Accelerate Your B2B Hardware Deployment

Upgrading your operator IPTV platform, deploying commercial signage, or seeking a dedicated OEM/ODM partner for custom Android Mini PCs?

Contact SZTomato's engineering and sales team today to request hardware samples, review PCBA layout documentation, or schedule a technical project consultation.
