Android TV Box Huawei WCDMA Modem built in, Android TV Box WCDMA 4G/3G Dongle
- Model No.：Android TV Box WCDMA 4G/3G Dongle
- CPU：Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
- GPU：Penta-Core Mali-450 Up to 750Mhz+
- SDRAM：1GB/2GB
- Flash：8GB/16G/32G-eMMC (Optional)
- WiFi：WiFi (802.11b/g/n) 2.4G/5G
- Blutooth：BT4.0
- Android OS：Android6.0/7.0
- Transport protocols：DLNA, Airplay
Android TV Box Huawei WCDMA Modem built in, Android TV Box WCDMA 4G/3G Dongle
|
Specifications |
|
|
Model No. |
Android TV Box WCDMA 4G/3G Dongle |
|
CPU |
Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS) |
|
GPU |
Penta-Core Mali-450 Up to 750Mhz+ |
|
SDRAM |
1GB/2GB |
|
Flash |
8GB/16G/32G-eMMC (Optional) |
|
WiFi |
WiFi (802.11b/g/n) 2.4G/5G |
|
Blutooth |
BT4.0 |
|
LAN Ethernet |
Ethernet:100M, Standard RJ-45 |
|
Android OS |
Android6.0/7.0 |
|
Transport protocols |
DLNA, Airplay |
|
4G LTE Module(optional) |
|
|
Internal 4G LTE Module(optional) |
LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps |
|
MHZ-E (EUROPE) |
B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM |
|
MHZ-A (AMERICA) |
B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA, 900/1800@GSM |
|
MHZ-CE (CHINA/INDIA) |
B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM |
|
MHZ-E(EMEA/KOREA/THAILAND/INDIA) |
B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM |
|
MHZ-V(NORTH AMERICA) |
B4/B13@FDD LTE |
|
MHZ-A(NORTH AMERICA) |
B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA |
|
MHZ-AU(Latin America/ANZ/TAIWAN) |
B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
|
MHZ-J(JAPAN) |
B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA |
|
Internal zigbee(optional) |
Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN, @2400-2483.5MHz |
|
Main Features |
|
|
Video Docoder |
H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K@30fps, AVS+ 1080P@60fps, H.264 1080P @60fps |
|
Decoder format |
HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6, RealVideo8/9/10 |
|
Media format |
Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
|
Music format |
MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
|
Photo format |
HD JPEG/BMP/GIF/PNG/TIFF |
|
Network Function |
Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. |
|
Language |
Chinese, English ,Germany, Japanese, Korea etc. |
|
Port Specifications |
|
|
USB host |
2* external USB2.0, 2*internal USB 2.0 |
|
Card reader |
1* TF CARD |
|
Micro-SIM |
1* Micro-SIM, 1* hidden Micro-SIM card slot |
|
HDTV |
1* HDTV output |
|
LAN |
1* RJ45 LAN Ethernet 10M/100M |
|
AV OUT |
1* AV-OUT/IR-in (optional) |
|
Others |
|
|
Power Supply |
Input100-240V AC, Output5V/2A DC |
|

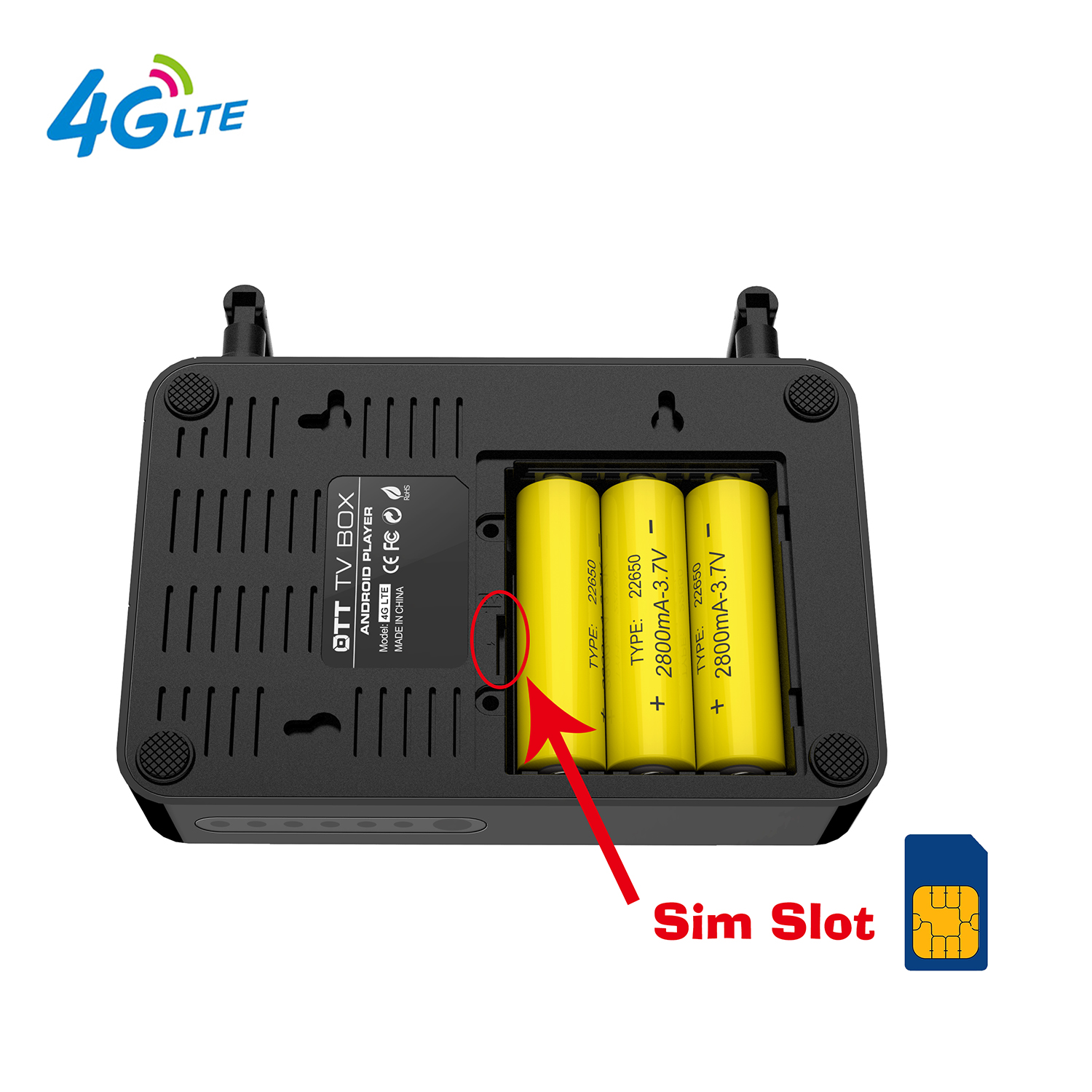

Internal recharge lithium battery(optional) |
18650 battery 1-3 pcs or equivalent battery module |
1. With the 4G LTE Modules, use the network anytime, anywhere, No restrictions on WIFI and network cable.
2. Different 4G LTE modules for selection. Support multiple countries to meet the needs of different customers.
3. Built in battery inside of the player, can update the time properly without the internet, ideal for customers with digital signage.
4. The Advantage of humanized design, the player has four holes on the back , can be hung behind the screen, moreover, the size is very mini, suitable for digital signage customers.
5. High cost performance, high configuration, good quality.
1. Built-In Huawei WCDMA Modem Our Android TV Box comes with a built-in Huawei WCDMA modem, allowing you to connect to high-speed internet networks seamlessly. Enjoy smooth streaming of your favorite movies, TV shows, and online content without interruptions.
2. High-Definition Video Playback Experience crisp and clear video playback with support for 4K and Full HD resolution. Enjoy immersive entertainment right on your TV screen.
3. Versatile Connectivity Connect to your home network wirelessly or via Ethernet for a stable and reliable connection. The TV Box also supports external devices like USB drives and microSD cards for expanded storage options.
4. Wide App Compatibility Access a vast library of apps, games, and streaming services from the Google Play Store. Customize your entertainment experience with your favorite apps and content.
5. User-Friendly Interface Navigate through menus, apps, and settings easily with the user-friendly interface. The remote control or optional keyboard makes it convenient to control your TV Box.
6. Multimedia Features Enjoy multimedia playback with support for various audio and video formats. Stream music, watch videos, view photos, and more from your favorite media sources.
7. Compact and Stylish Design The sleek and compact design of the Android TV Box complements any home entertainment setup. Its modern appearance adds a touch of elegance to your living space.
Conclusion Our Android TV Box with a built-in Huawei WCDMA modem offers seamless connectivity, high-speed internet access, versatile connectivity options, and a user-friendly interface. Elevate your home entertainment experience with this advanced TV Box.
