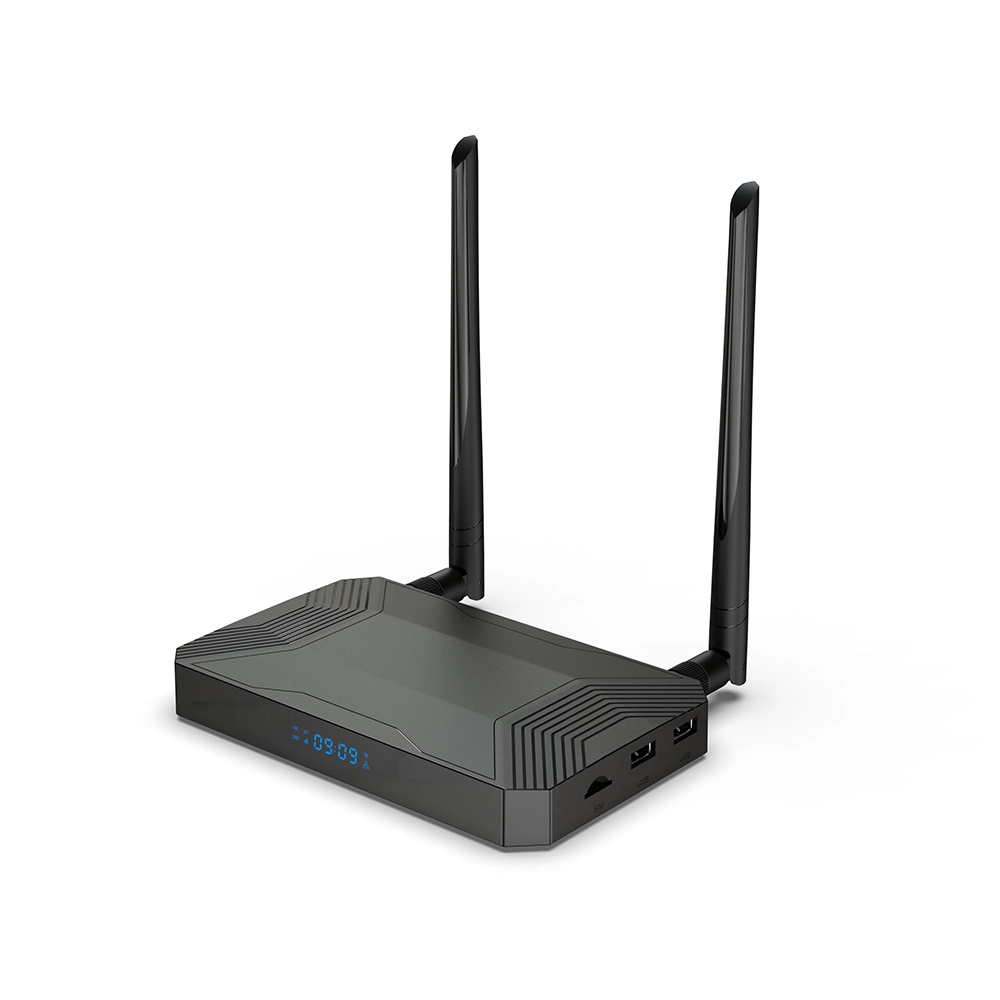

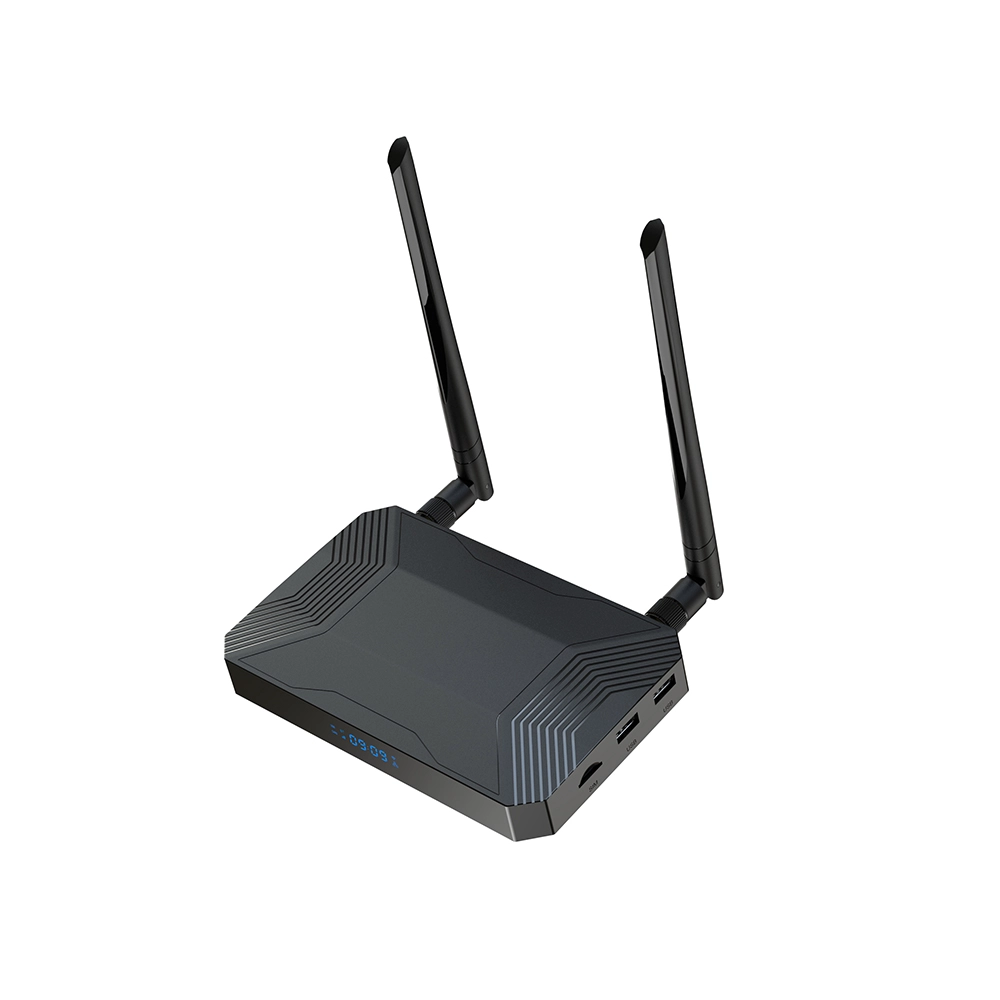

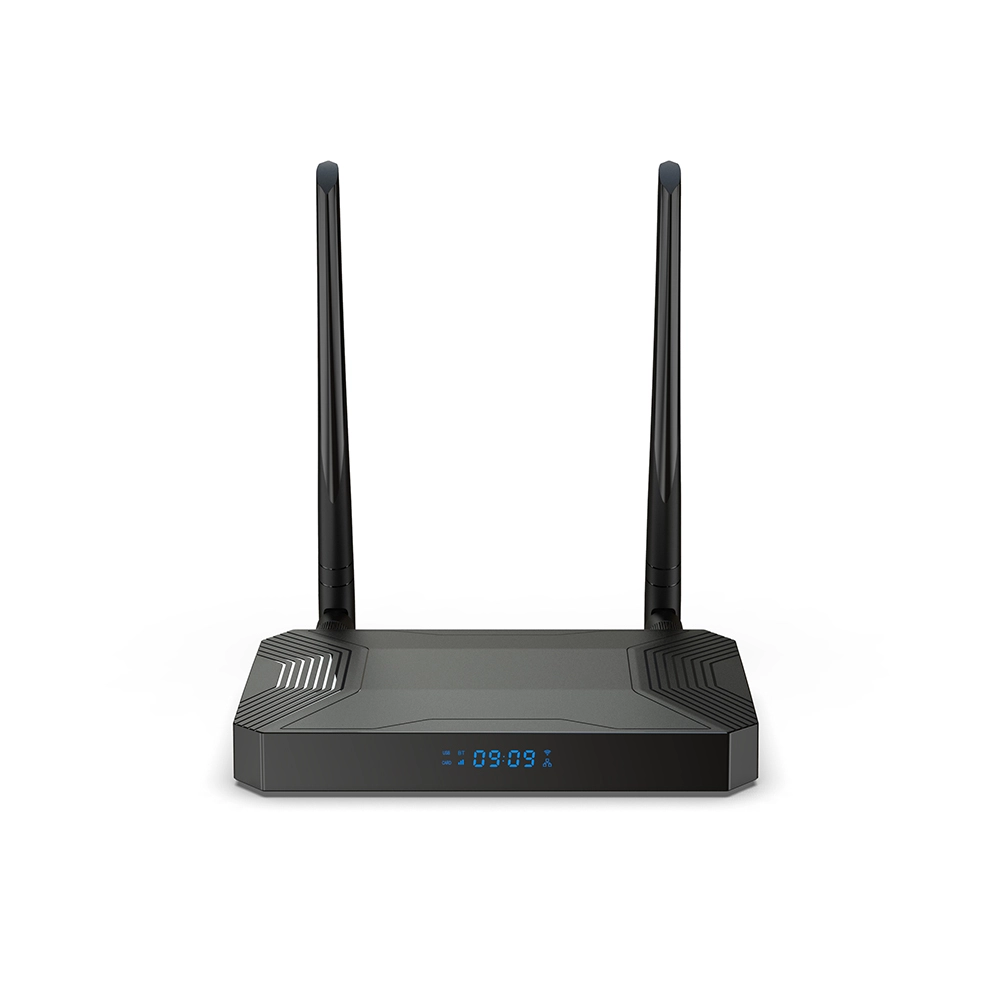

Android TV Box with 3G/4G LTE WCDMA Best Android Box TV Mini Android Internet TV Box

Specifications

Model No.

Allwinner 3G/4G LTE Android TV Box

CPU

Allwinner H618/H313 Quad core ARM Cortex A53

GPU

ARM G31

RAM

2GB

ROM

16GB (32GB Optional)

WiFi

Wi-Fi 6 2.4GHZ /5.8GHZ IEEE802.11a/b/g/n/ac /ax External antennas

Blutooth

BT5.0

Android OS

Android 10

4G LTE/ Mini PCIe(Note:EC200A-CN(Default) /Different modules support different frequency bands.)

LTE-FDD

B1/B3/B5/B8

LTE-TDD

B34/B38/B39/B40/B41

WCDMA

B1/B5/B8

GSM/EDGE

B3/B8

GNSS

GPS/GLONASS/BDS/Galileo (optional)

Main Features

Video Docoder

- H.265 Main10@ L5.1 up to 4K@60fps

- VP9 Profile 2 up to 4K@30fps

- AVS2 JiZhun 10bit Profile up R7to4K@30fps

- H.264 BP/MP/HP@L4.2 up to 4K@30fps

- H.263 BP up to 1080p@60fps

- MPEG-4 SP/ASP@L5 up to 1080p@60fps

- MPEG-2 MP/HL up to 1080@60fps

- MPEG-1 MP/HL up to 1080p@60fps

- Xvid up to 1080p@60fps

- Sorenson Spark up to 1080p@60fps

- VP8 up to 1080p@60fps

- AVS/AVS+ JiZhun Profile up to 1080p@60fps

- WMV9/VC1 SP/MP/AP up to 1080p@60fps

- JPEG HFIF file format up to 45MPPS

-  H.264 BP/MP/HP

-  H.264 supports I/P frame, and only supports single reference frame

-  MJPEG/JPEG baseline

-  Maximum 16-megapixel (4096 × 4096) resolution for H.264 encoding

-  H.264 encoding capability: 1080p@60fps

-  JPEG snapshot performance of 1080p@60fps independently

-  Supports the constant bit rate(CBR)/variable bit rate(VBR) bit rate control mode, ranging from 56kbit/s to 100Mbit/s

-  Encoding of eight regions of interest(ROls)

Audio

-  Two audio digital-to-analog (DAC) channels

-  Supports 16-bit and 20-bit sample resolution

-  8 kHz to 192 kHz DAC sample rate

- 95+2dB SNR@A-weight, -80+3dB THD+N, output Level more than 0.55Vrms

-  One audio output

-  One differential LINEOUTP/N or single-ended LINEOUTL/R output

-  Supports Dynamic Range Controller (DRC) adjusting the DAC playback

-  One 128×24-bits FIFO for DAC data transmit

-  Programmable FIFO thresholds

-  DMA and Interrupt support
Audio HUB:

-  One Audio HUB

-  Supports 2 Digital Audio MIXER(DAM)

-  Supports 3 12S/PCM interfaces for connecting external devices, and 1 12S/PCM for connecting internal HDMI

-  Supports Left-justified, Right-justified, Standard 12S mode, PCM mode, and TDM mode

-  I2S mode supports 8 channels, and 32-bit/192 kbit sample rate

-  I2S and TDM modes support maximum 16 channels, and 32-bit/96 kbit sample rate


HD JPEG/BMP/GIF/PNG/TIFF

Network Function

Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc.

Language

Chinese, English, Germany, Japanese, Korea etc.

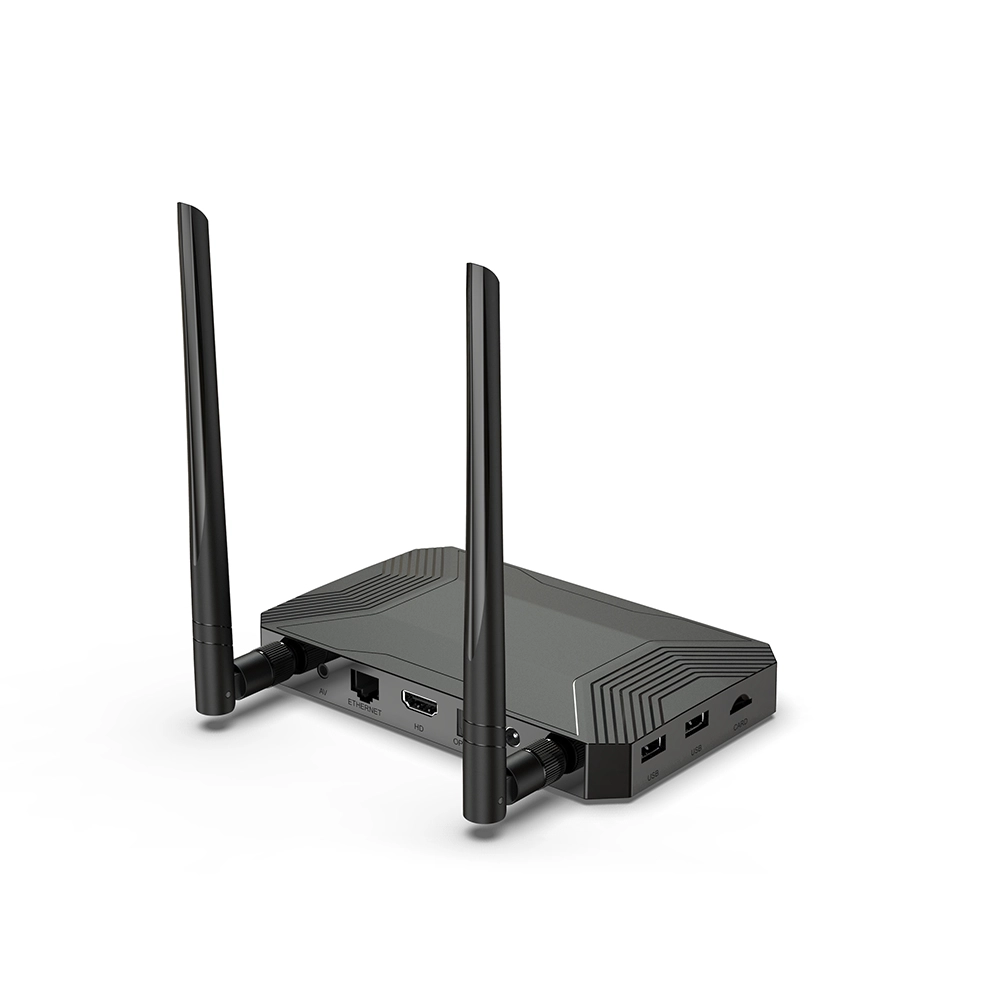

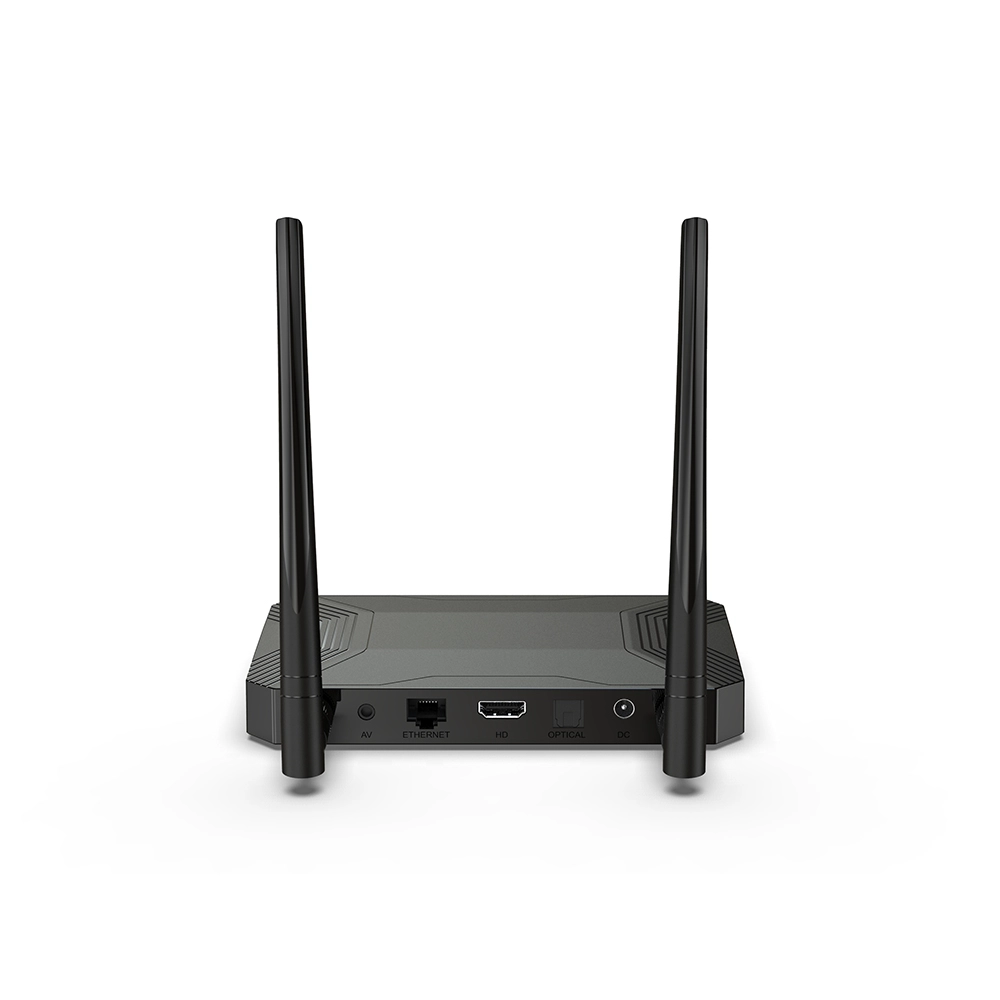

Port Specifications

USB host

4 *USB 2.0

External memory

1*TF Card

Audio OPTCAL

1* SPDIF

HDTV

1* HDMI 2.0a 4K @60fps Support PAL/NTSC

Ethernet

1 *100M(Default)/1000M(optional)

SIM card

1* Sim Card

RTC

Support

Others

Power Supply

DC 5V/2A
