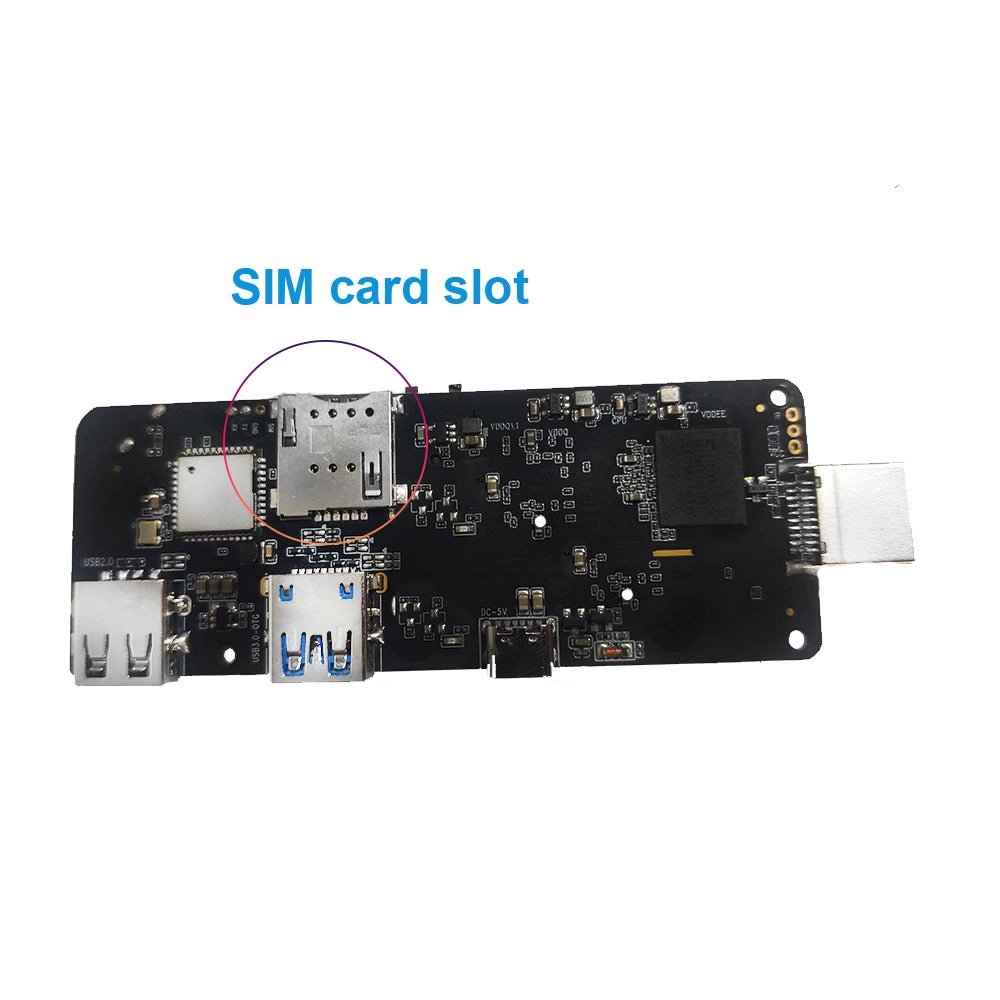

Android TV Box with 3G/4G LTE WCDMA Wireless Module Built-in

Android TV Box with 3G/4G LTE WCDMA Wireless Module Built-in

  • Model: Android TV Box with 3G/4G
  • CPU: Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz
  • GPU: ARM Mali-G31
  • Storage: 16GB/32GB EMMC
  • Memory: 2GB/4GB DDR4
  • Android OS:Android 9.0/ATV
  • Blutooth: 4.1 Bluebooth

Android TV Box with 3G/4G LTE WCDMA Wireless Module Built-in

Specifications

Model No.

Android TV Box with 3G/4G LTE WCDMA

CPU

Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz

GPU

ARM Mali-G31

Storage

16GB/32GB EMMC

Memory

2GB/4GB DDR4

Android OS

Android 9.0/ATV

Blutooth

4.1 Bluebooth

DRM

Widevine (Verimatrix/ Playready optional)

4G LTE Module(optional)

Internal 4G LTE Module(optional)

LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps

MHZ-E (EUROPE)

B1/B3/B5/B7/B8/B20@FDD LTE,

B1/B5/B8@WCDMA, 850/900/1800/1900@GSM

MHZ-A (AMERICA)

B2/B4/B8/B17@FDD LTE,

B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/39@TD-SCDMA,900/1800@GSM

MHZ-CE (CHINA/INDIA/Saudi Arabia)

B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM

MHZ-E(EMEA/KOREA/THAILAND/INDIA)

B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM

MHZ-V(NORTH AMERICA)

B4/B13@FDD LTE

MHZ-A(NORTH AMERICA)

B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA

MHZ-AU(Latin America/ANZ/TAIWAN)

B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM

MHZ-J(JAPAN)

B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA

Video & Audio CODEC

Video& Audio

VP9/H.265/AVS2 up to 4Kx2K@60fps,H.264 4K @30fps, AVS+/VC-1/MPEG1-4 1080P @60fps

H.264/H.265 1080P @60fps

HD MPEG1/2/4,H.265/HEVC,AVS2 , HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6 , RealVideo8/9/10

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE

HD JPEG/BMP/GIF/PNG/TIFF

HDR

HDR 10+, Dolby Vision

I/O

HDMI

HDMI 2.1 With 3D,HDR,CEC and 4Kx2K@60fps max resolution

AV OUT

Support

USB

1*USB 2.0, 1*USB 3.0 support USB Flash Drive and USB HDD)

RJ45

10/100M standard RJ-45 Ethernet

Network Function

Miracast,DLNA,Airplay,Skype,Netflix,Twitter,Picasa,Youtube,Flicker,Facebook,Online movies,Games,etc.

Wireless

WiFi 11ac+Bluetooth 4.1 IEEE802.11 a/b/g/n/ac(AP6255) 4G/5G

TF CARD

Support

SPDIF

Support Optical Output

IR Port

External Infrared Receiver

LED Indicator

Power on: Blue; Standby: Red

LED Display time

1* LED Display time, Built in RTC ,Built in USB device

Others

Power Supply

AC100-240V 50/60Hz, DC 5V/2A

Language

English, German, Russian, French, Spanish, Italian, Arabic, Japanese, Korean, Hebrew, etc. multi languages

Application

KODI newest version Support local high-definition play, support plug-in installation and play

Accessory

User manual, HDMI cable, IR remote, Power adadpter

Option

Support mouse and keyboard via USB or BT; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle



Android TV BOX with 3G/4G LTE WCDMA Wireless Module Built-in

Our Android TV BOX with a built-in 3G/4G LTE WCDMA wireless module is a cutting-edge solution that revolutionizes home entertainment. This advanced device combines the functionality of a traditional TV box with the power of mobile internet connectivity, offering users an unparalleled streaming and browsing experience.

Key Features and Benefits

  1. Built-in 3G/4G LTE WCDMA Wireless Module: Enjoy high-speed internet connectivity directly through the TV box, eliminating the need for additional dongles or external devices. Stay connected and stream content effortlessly.

  2. Versatile Connectivity Options: In addition to the built-in wireless module, our Android TV BOX supports various connectivity options such as Wi-Fi, Ethernet, Bluetooth, HDMI, and USB, providing flexibility and convenience.

  3. HD and 4K Streaming: Experience crystal-clear HD and 4K streaming for an immersive viewing experience. Enjoy your favorite movies, shows, and videos in stunning detail and vibrant colors.

  4. Android Operating System: Powered by the Android OS, our TV BOX offers access to a wide range of apps, games, streaming services, and more via the Google Play Store. Customize your entertainment experience to suit your preferences.

  5. Multimedia Hub: Transform your TV into a multimedia hub with support for a variety of media formats. Play videos, music, and photos from local storage, external devices, or online streaming platforms.

  6. User-Friendly Interface: The intuitive user interface and remote control make navigation and content selection effortless. Access apps, settings, and media with ease.

  7. Enhanced Productivity: Use productivity apps, web browsers, and communication tools directly on your TV screen. Stay productive and connected without switching devices.

Why Choose Our Android TV BOX with 3G/4G LTE WCDMA Wireless Module?

  • Seamless Connectivity: Enjoy uninterrupted streaming and browsing with high-speed 3G/4G LTE connectivity directly from the TV box.

  • Enhanced Entertainment: Access a vast array of entertainment options, including streaming services, games, social media, and more, all from one device.

  • Future-Ready Technology: Our TV BOX is designed to support future updates and advancements, ensuring compatibility with the latest features and content.

Elevate your home entertainment experience with our Android TV BOX featuring a built-in 3G/4G LTE WCDMA wireless module. Stream, browse, and enjoy endless entertainment possibilities with ease. Order yours today and redefine how you experience TV and media content!
