Rockchip RK3568 Quad Core Android 11 Commercial Display Board with 4K Output, NPU AI Processing, and Multi-OS Support
- Model No.: Rockchip RK3568 Quad Core Android 11 Commercial Display Board
- CPU: Rockchip RK3568 Quad-Core ARM Cortex-A55, up to 2.0GHz
- GPU: ARM G52 2EE Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
- NPU: Support 1T
- RAM: 2GB LPDDR4 (Optional: 4GB/8GB)
- eMMC: 32GB (Optional: 64GB/128GB)
- OS: Android 11 /Ubuntu20.04 /Debian 11.0 ( Kernel is Linux4.19)
- Wi-Fi / BT: Default 2.4G+5G Dual-Band WiFi6 Module;
- Support 4G, Connect to PCI-E interface 4G Module;
- Bluetooth 5.4;
Rockchip RK3568 Quad Core Android 11 Commercial Display Board with 4K Output, NPU AI Processing, and Multi-OS Support
|
Specifications |
|
|
Model No. |
Rockchip RK3568 Quad Core Android 11 Commercial Display Board |
|
CPU |
Rockchip RK3568 Quad-Core ARM Cortex-A55, up to 2.0GHz |
|
GPU |
ARM G52 2EE Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
NPU |
Support 1T |
|
RAM |
2GB LPDDR4 (Optional: 4GB/8GB) |
|
eMMC |
32GB (Optional: 64GB/128GB) |
|
OS |
Android 11 /Ubuntu20.04 /Debian 11.0 ( Kernel is Linux4.19) |
|
Wi-Fi / BT |
Default 2.4G+5G Dual-Band WiFi6 Module; Support 4G, Connect to PCI-E interface 4G Module; Bluetooth 5.4; |
|
Decoding Resolution |
Supports up to 4K |
|

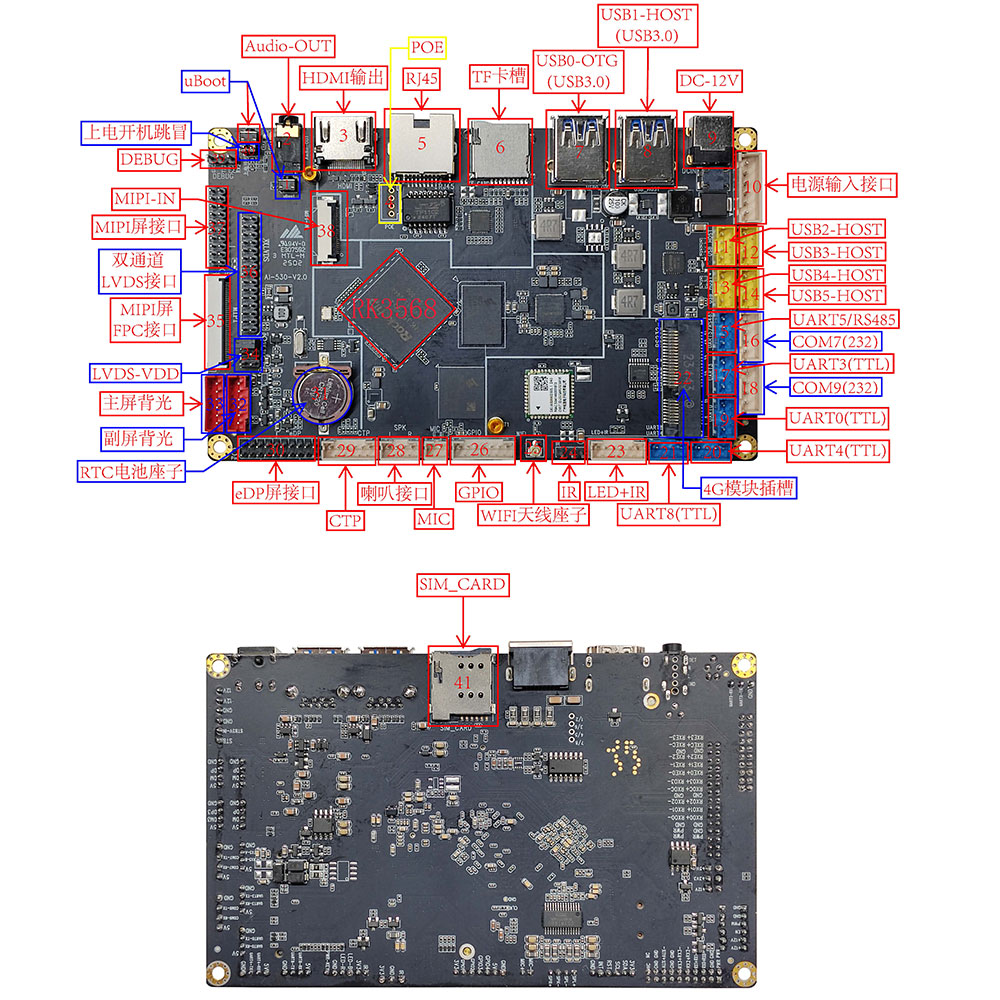

I/O Port |
|
|
Serial Port |
2 RS232 Serial Ports (Optional TTL Serial Port) ; 5 TTL Serial Ports(UART3 can be equipped with RS485 Serial Port); 1 DEBUG debug Serial Ports (optional TTL Serial Port); |
|
LCD Output |
1 Dual-Channel LVDS Screen interface (Multiplexed with two MIPI Screen interfaces, oneout of three) EDP, 1, Supports 1080P Output HDMI, 1 Port , up to 4K@60fps Output 2 MIPI Screen interfaces (the MIPI Screen pin interface can be converted into an eDP Output interface by adding a MIPI to eDP Converter Board, and can be Reused with the Dual-Channel LVDS Screen interface. Choose one of the three) |
|

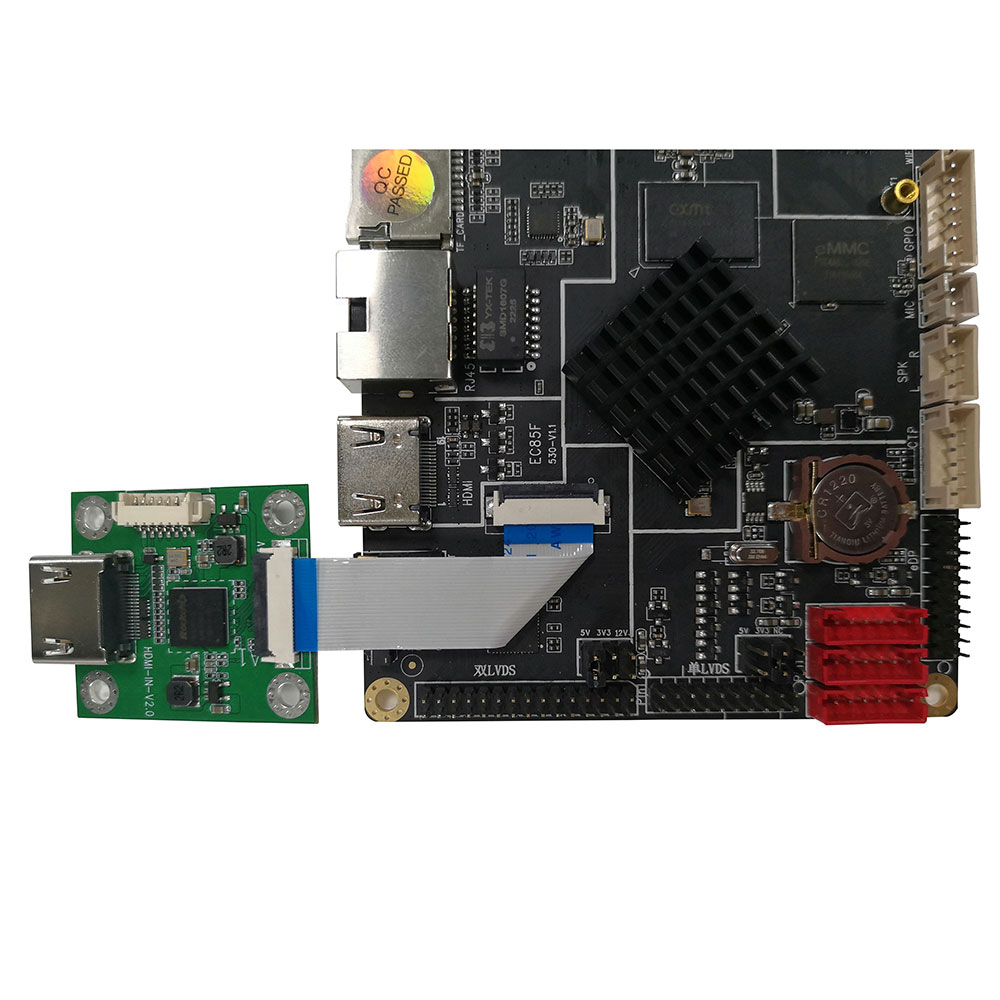

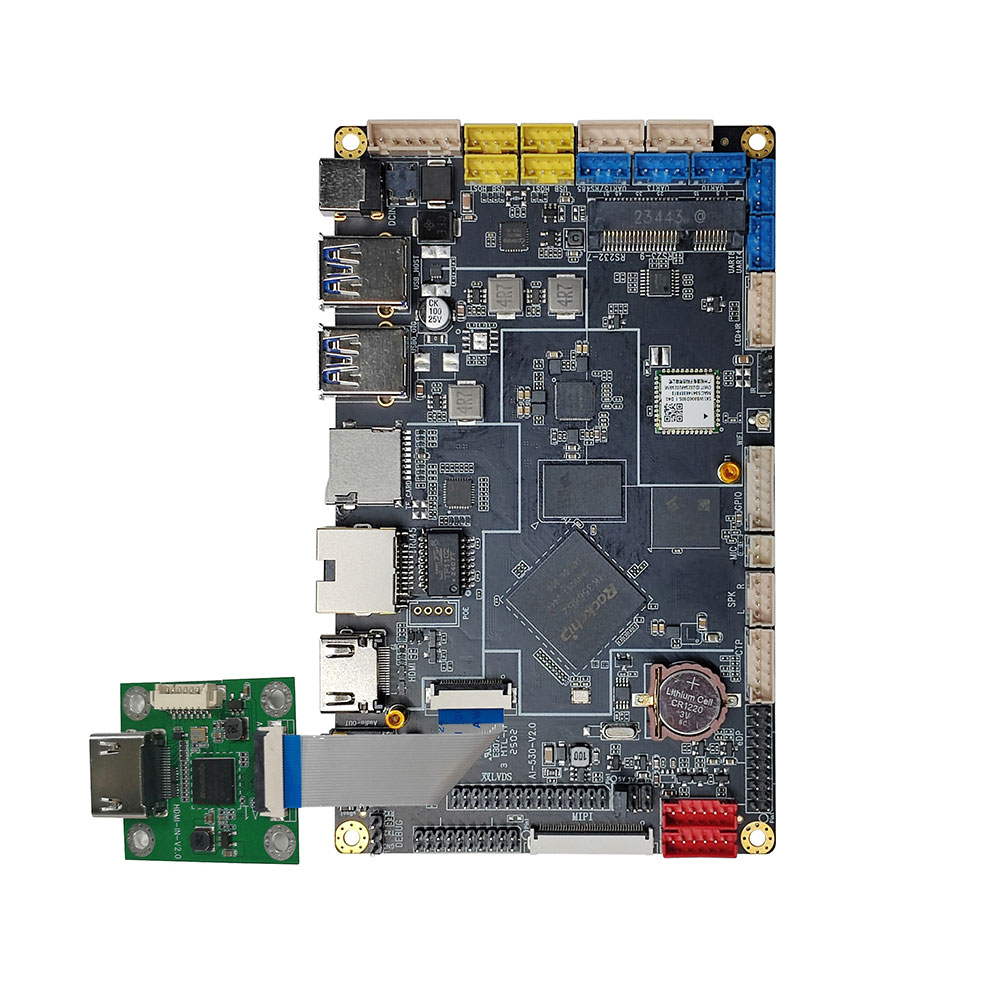

HDMI IN |
Supported by external HDMI IN Board |
|
USB2.0 |
2 USB3.0 (One of which is OTG); 4 USB 2.0 _HOST; |
|
Speaker Output |
Supports Single Channel 4R/ 20W Speaker |
|
RTC (Real-Time Clock) |
The battery supports time memory for 3 years and supports timed power on and off |
|
Ethernet |
100M Ethernet with PoE Support |
|
System Upgrade |
Support USB Cable/U Disk/Network Upgrade |
The RK3568 commercial display intelligent motherboard is a high-performance embedded platform developed for digital signage, self-service kiosks, and other interactive display applications. Powered by the Rockchip RK3568 Quad-Core Cortex-A55 processor, it delivers excellent computing efficiency, AI capability, and stability under various operating systems.
With support for Android 11.0, Ubuntu 20.04, and Debian 11.0 (Linux Kernel 4.19), this board provides developers and integrators with a flexible and future-proof solution for commercial display systems.
Whether you’re building digital billboards, vending machines, or interactive terminals, the RK3568 motherboard offers a perfect balance of performance, compatibility, and cost-effectiveness.
Application Scenarios
-
Digital Signage & Advertising Displays
-
Self-Service Terminals & Kiosks
-
Industrial Control Panels
-
Interactive Retail Displays
-
Smart Conference Systems
-
Educational and Public Information Screens
Core Advantages
High-Definition Display Capability
-
Supports up to 4K@60 fps video decoding (H.265 / H.264 / VP9)
-
Dual-channel LVDS, eDP, MIPI, and HDMI video output
-
1080P@100 fps H.265/H.264 video encoding
Flexible System Upgrades
-
Supports multiple upgrade methods: remote OTA, U-disk, TF card, or direct USB connection
-
Plug-and-play display configuration for all screen sizes and resolutions
Wide Touchscreen Compatibility
-
Compatible with infrared, optical, capacitive, and resistive touch technologies
-
HID driver-free support — no debugging required
Comprehensive Peripheral Support
-
Fully supports mainstream USB and serial devices: printers, scanners, card readers, keyboards, cameras, ID readers, and fingerprint sensors
-
Built-in test/demo programs available for fast deployment
Rich Interfaces and Network Options
-
6*USB ports, 8*serial ports, 4*GPIO
-
Supports Wi-Fi, RJ45 Ethernet, and 4G connectivity
-
Built-in PCI-E 4G module socket, compatible with popular 4G modules (Quectel, Yuge, etc.
