Set Top Box Allwinner H616 Quad Core Android 10 TV Box
- Model No.: Set Top Box Android 10 TV Box
- CPU: Allwinner H616 Quad Core ARM Cortex A53
- GPU: G31 OPenGL3.2
- RAM: DDR3: 4GB
- Internal Storage: eMMC: 32GB(Option:64GB)
- OS: Android 10.0
- WiFi: IEEE 802.11 b/g/n/ac
Set Top Box Allwinner H616 Quad Core Android 10 TV Box
|
Specifications |
|
|
Model No. |
X96MATE Set Top Box |
|
CPU |
Allwinner H616 Quad Core ARM Cortex A53 |
|
GPU |
G31 OPenGL3.2 |
|
RAM |
DDR3: 4GB |
|
Internal Storage |
eMMC: 32GB(Option:64GB) |
|
OS |
Android 10.0 |
|
WiFi |
IEEE 802.11 b/g/n/ac |
|
Video&Audio CODEC |
|
|
Video |
Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video Decoding - VP9 Profile 2 up to 4Kx2K@60fps - H.265 Main10@L5.1 up to 4Kx2K@60fps,or 6K@30fps - AVS2-P2 Profile up to 4Kx2K@60fps - H.264 BP/MP/HP@L4.2 up to 4Kx2K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps (ISO-14496) - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45MPPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
|
Audio |
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Audio Codec -Two audiio digital-to-analog(DAC) channels -Support 16-bit and 20-bit sample rate -8kHz to 192kHz DAC sample rate -95+/-2dB SNR@A-weight,-80+/-dB THD+N,output Level more than 0.55Vrms -One128*24-bits FIFO for DAC data transmit built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
|
I/O |
|
|
1*HDMI |
4K*2K UHD Output, HDMI 2.0A |
|
1*AV OUT |
480i/576i standard definition output |
|
2*USB |
1*USB 2.0 1*USB 3.0 |
|
1*IR Reciver |
Remote Reciver Connect |
|
1*RJ45 |
Ethernet Interface |
|
1*TF CARD |
Support 4GB/8GB/16GB/32GB/64GB |
|
Power |
DC 5V/2A; LED indicator. Working: blue |
|
Others |
|
|
Image |
HD JPEG, BMP, GIF, PNG, TIF |
|
Language |
English French German Spanish Italian etc multilateral languages |
|
Option |
Browse all video websites, support Netflix,Hulu,Flixster,Youtube, etc. Apps download freely form android market, amazon app store etc. Local Media playback, Support HDD, U Disck , TF Card. |

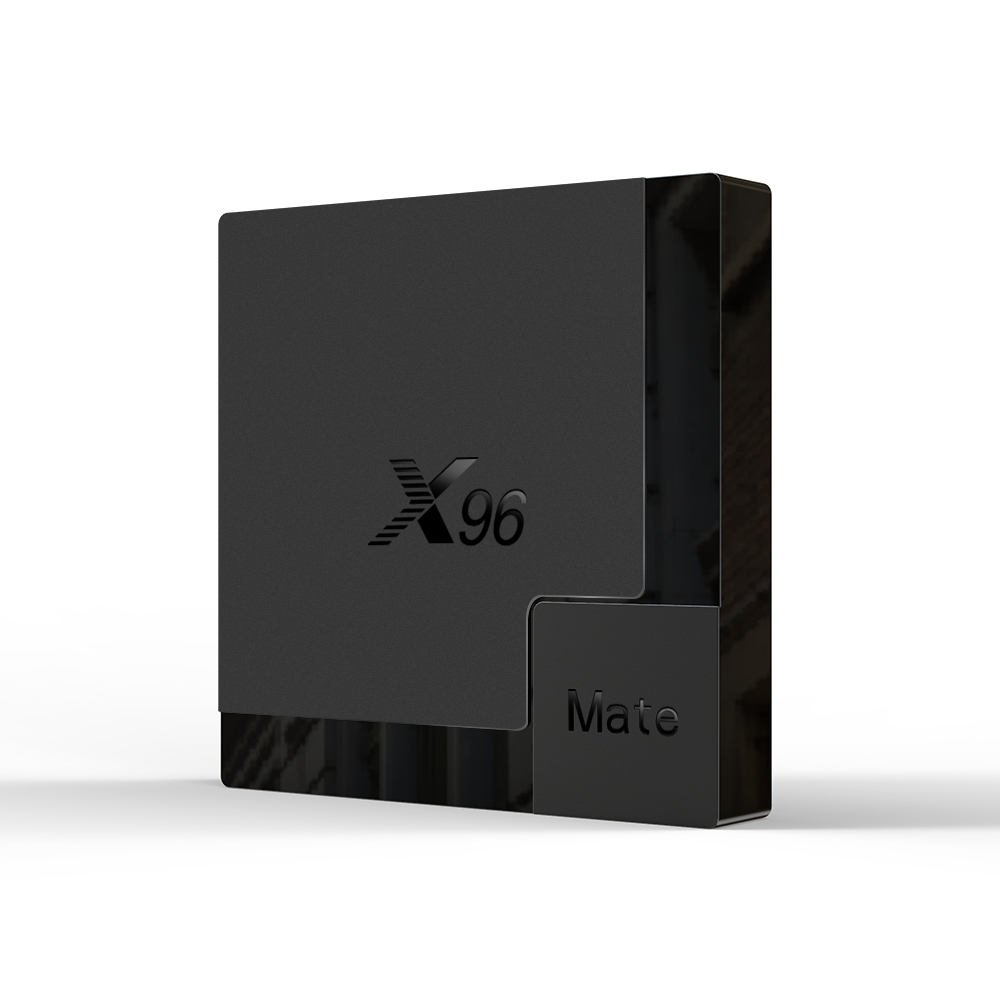

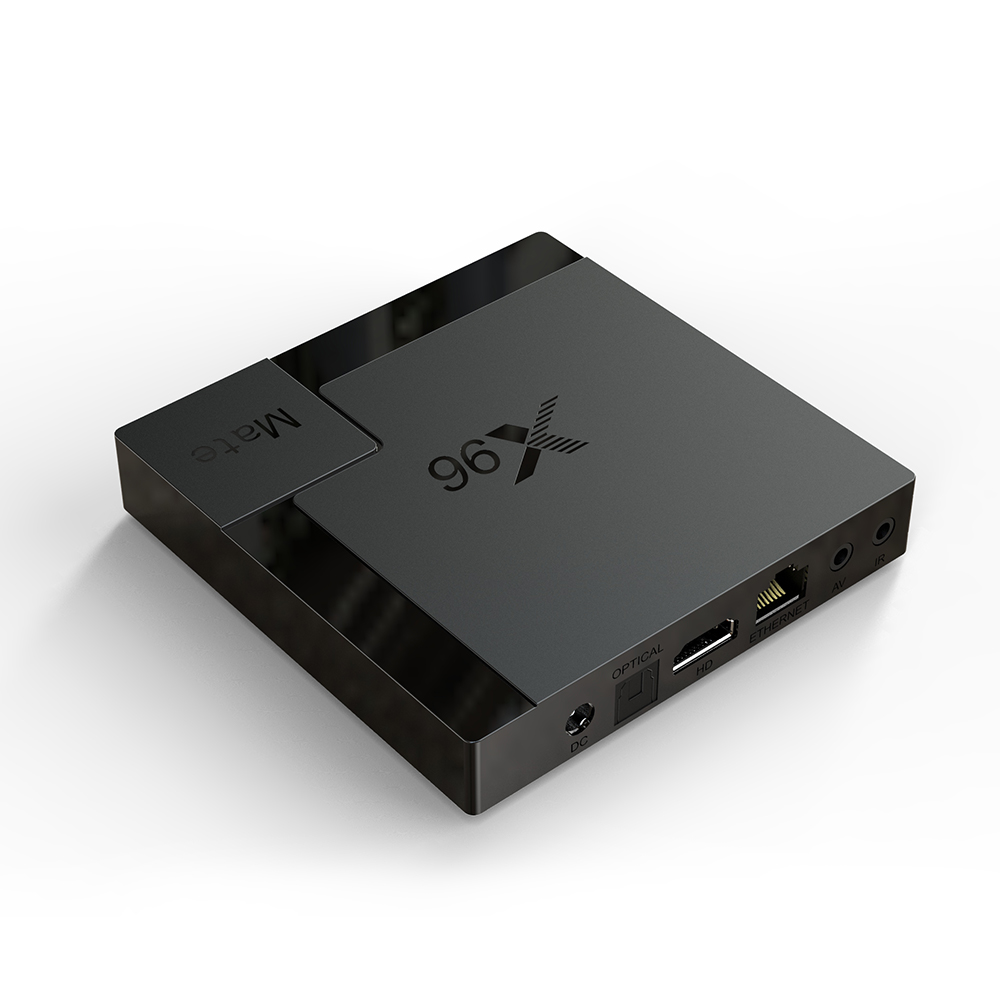

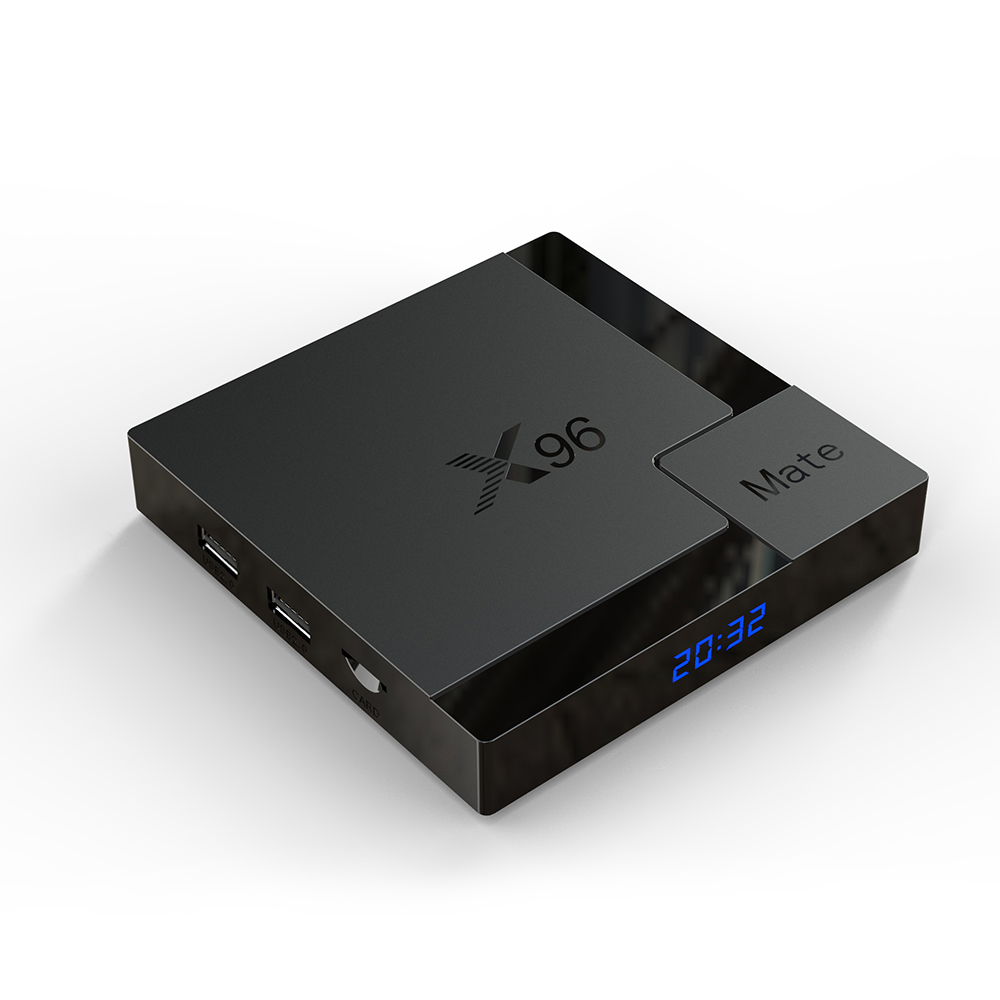

The X96MATE TV Box, powered by the Allwinner H616 Quad-Core CPU, is a cutting-edge device designed to deliver an exceptional multimedia experience. Running on the advanced Android 10 operating system, it combines smooth performance with a user-friendly interface, making it an ideal choice for both personal entertainment and professional applications.
4K Ultra HD Streaming
Enjoy stunning visuals with 4K Ultra HD resolution, ensuring vivid colors and exceptional clarity for all your favorite content. Whether streaming from popular platforms, watching local media files, or utilizing apps, the X96MATE guarantees smooth and immersive playback. Its HDR support further enhances image quality, offering deeper contrasts and lifelike visuals for an unparalleled viewing experience.
Allwinner H616 Quad-Core Processor
The heart of the X96MATE TV Box is the powerful Allwinner H616 Quad-Core CPU, paired with an advanced GPU for superior video decoding and rendering. This combination ensures lag-free multitasking and exceptional media playback, even for resource-intensive applications. The efficient processor architecture minimizes power consumption while maximizing performance.
Android 10 for Enhanced Compatibility
With the inclusion of Android 10, this TV box provides access to a vast library of apps via the Google Play Store. Whether for streaming, gaming, or productivity, Android 10 ensures compatibility and stability across a wide range of applications. Its intuitive interface makes navigation easy for users of all technical levels.

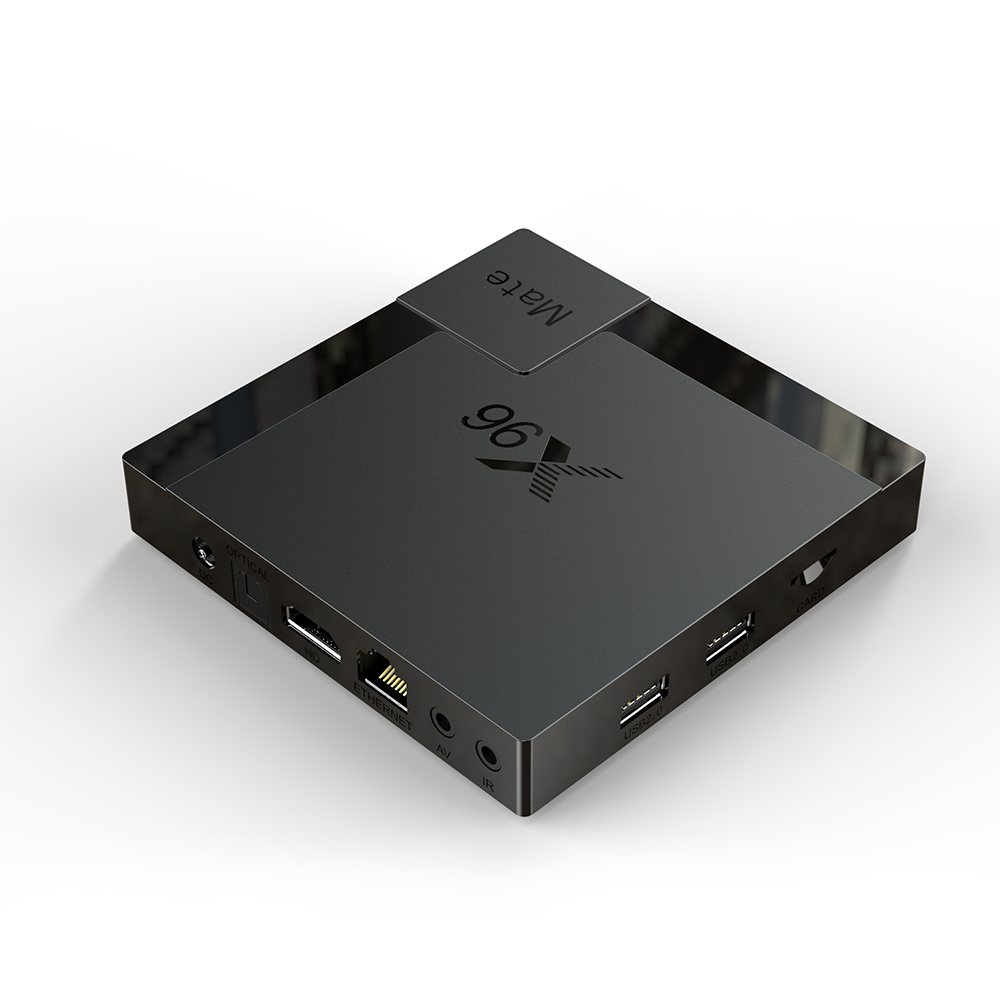

Comprehensive Connectivity Options

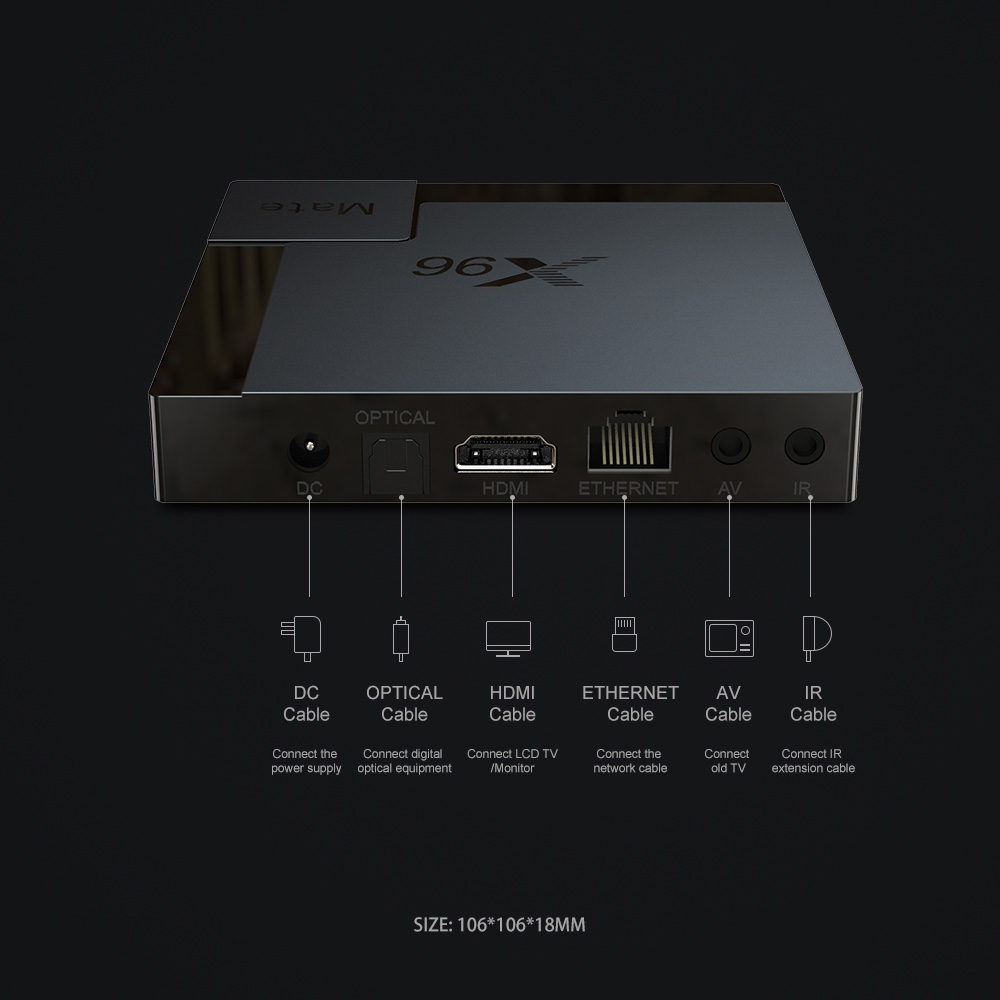

The X96MATE offers a variety of connectivity features to suit diverse user needs. Equipped with USB ports, HDMI output, Ethernet, and Wi-Fi support, this TV box ensures seamless integration with TVs, projectors, external storage, and other devices. This versatility makes it a perfect choice for both home entertainment systems and business setups requiring reliable media playback.

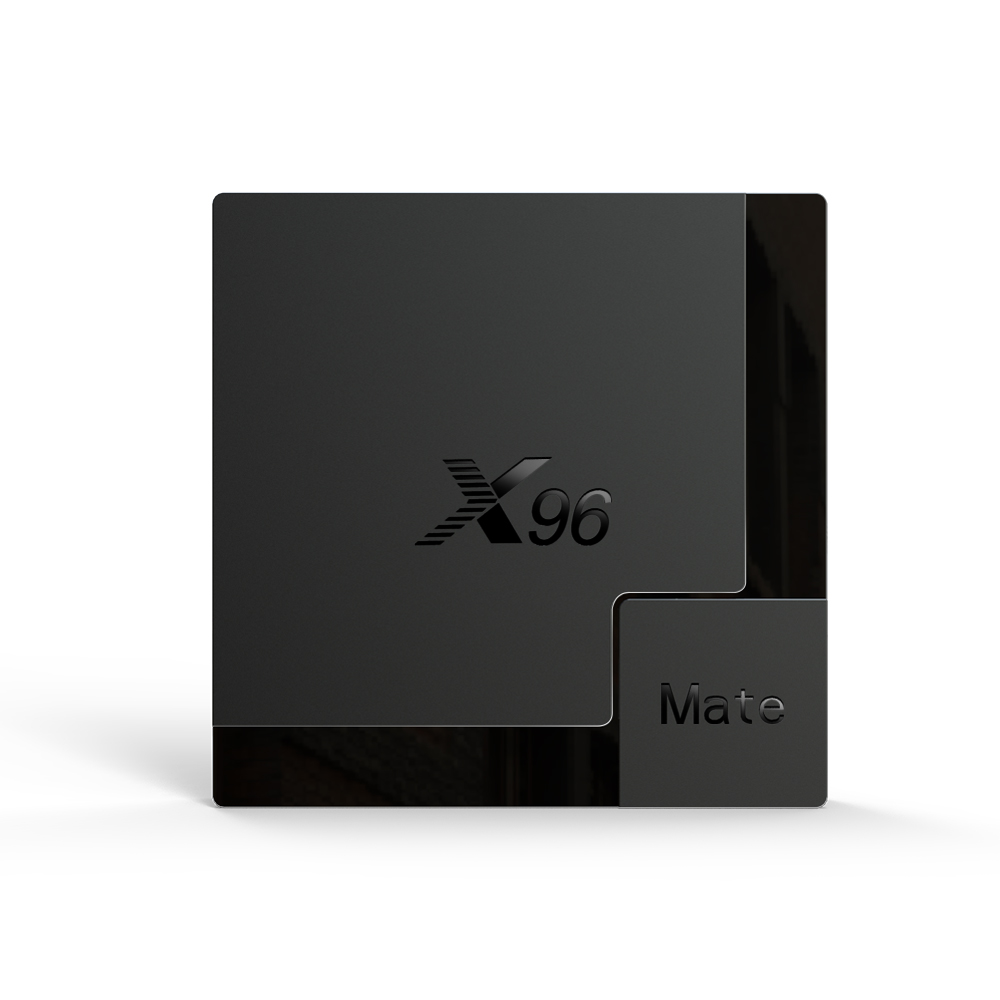

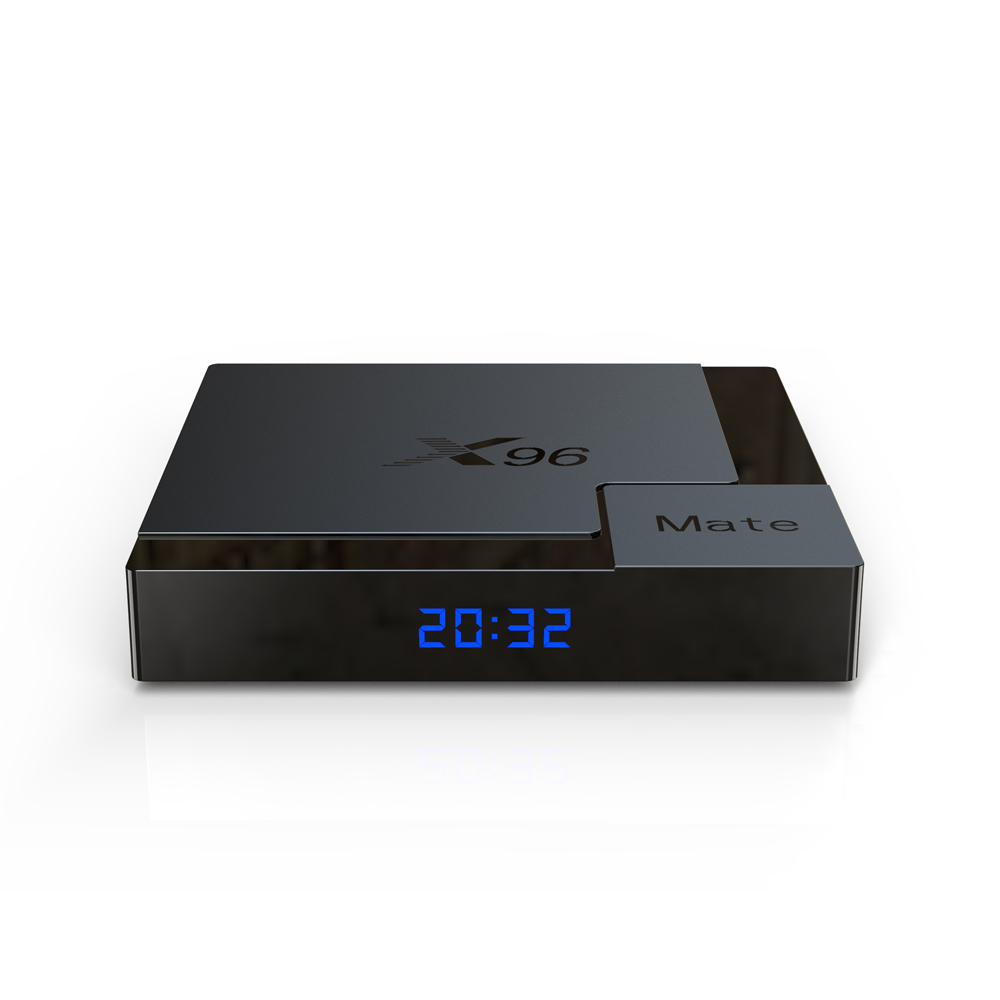

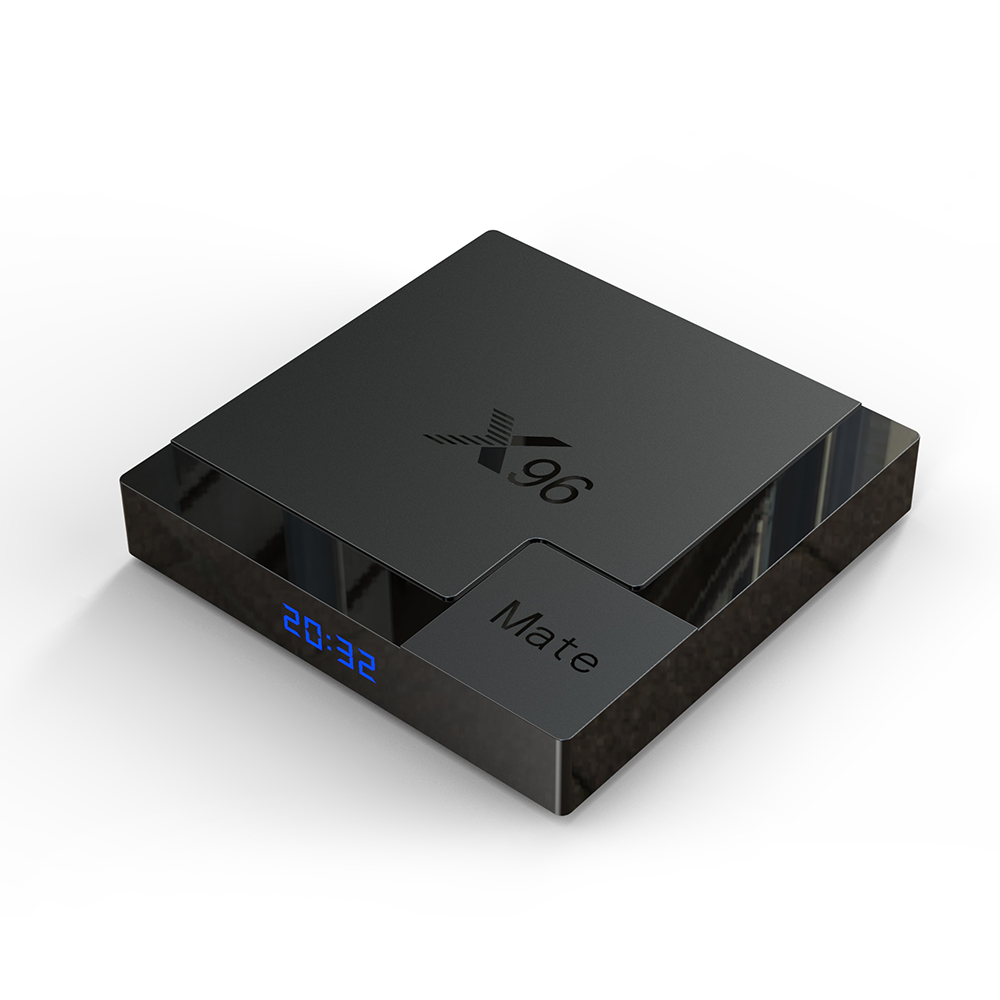

Compact Design and Easy Setup
Designed with convenience in mind, the X96MATE features a compact, sleek design that easily fits into any environment. Its plug-and-play setup allows users to get started within minutes, eliminating the hassle of complex installations. The TV box also includes a user-friendly remote control for effortless navigation and control.
Business and Professional Applications
Beyond personal entertainment, the X96MATE is well-suited for professional applications such as digital signage, conference presentations, and interactive displays. Its powerful hardware and reliable software ensure uninterrupted operation, making it an excellent choice for businesses looking to enhance their media capabilities.
Energy Efficiency and Longevity
Built for long-term use, the X96MATE TV Box features energy-efficient components that reduce power consumption while maintaining peak performance. This eco-friendly design ensures durability and reliability, providing users with a cost-effective solution for their multimedia needs.
Why Choose the X96MATE TV Box?
The combination of Allwinner H616 processing power, Android 10 OS, and 4K Ultra HD support makes the X96MATE an outstanding choice for users seeking a versatile and high-performance TV box. Its comprehensive connectivity, sleek design, and advanced features cater to a wide range of applications, from home streaming to professional setups.
Conclusion
Whether you're upgrading your home entertainment system or looking for a reliable media player for business use, the X96MATE TV Box with Allwinner H616 delivers exceptional performance, seamless connectivity, and unparalleled visual quality. Elevate your media experience with this versatile and powerful device
