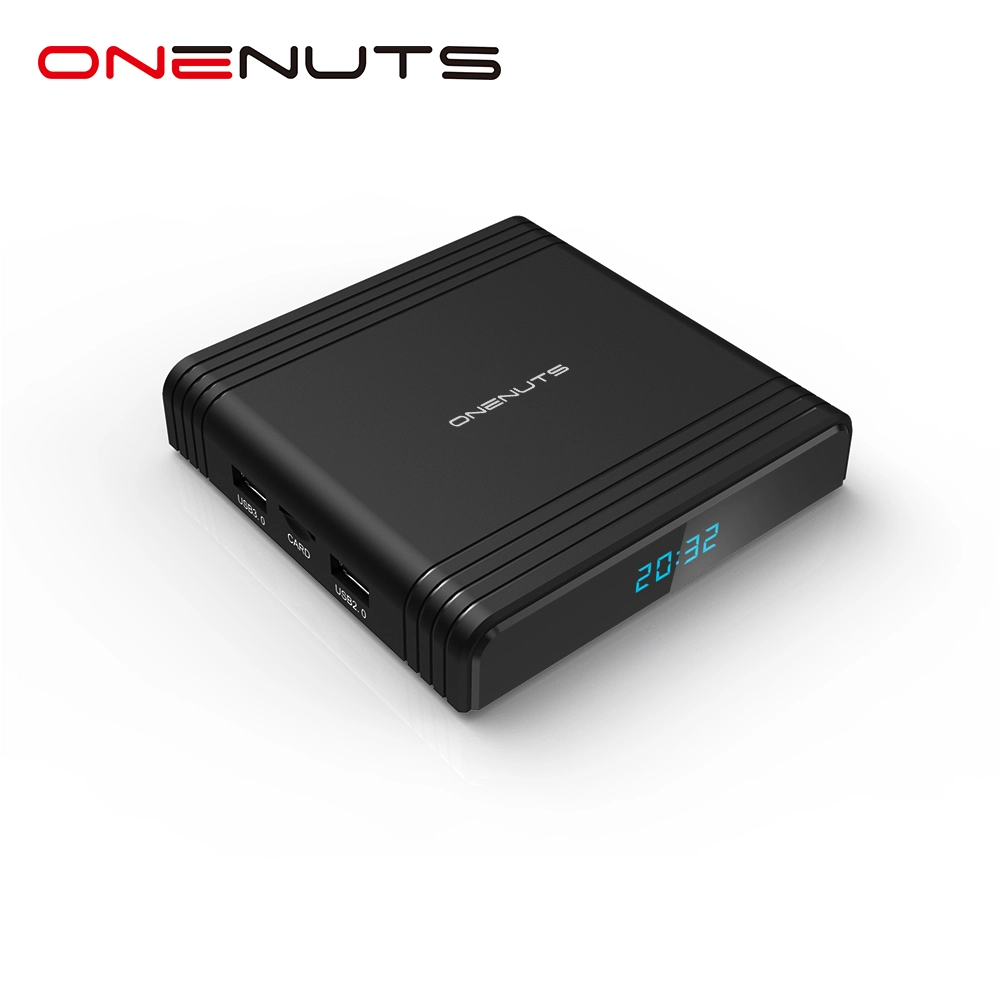

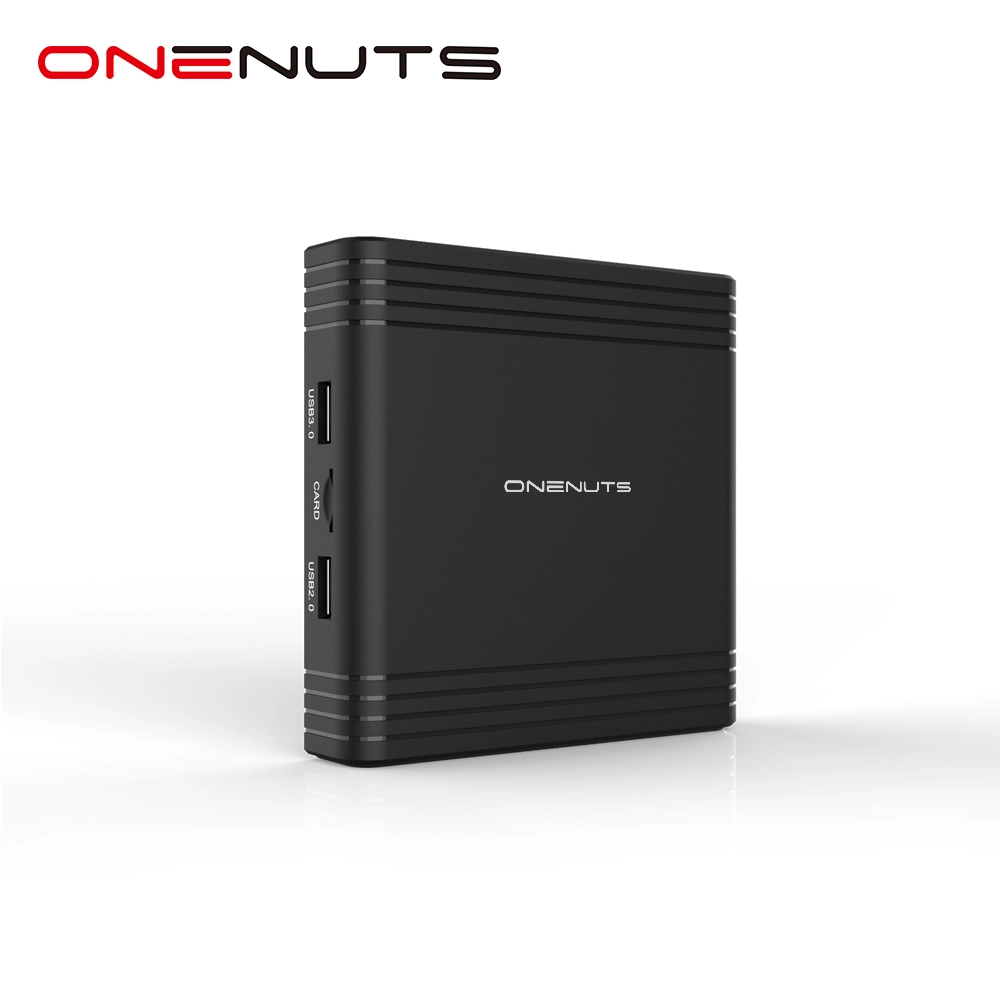

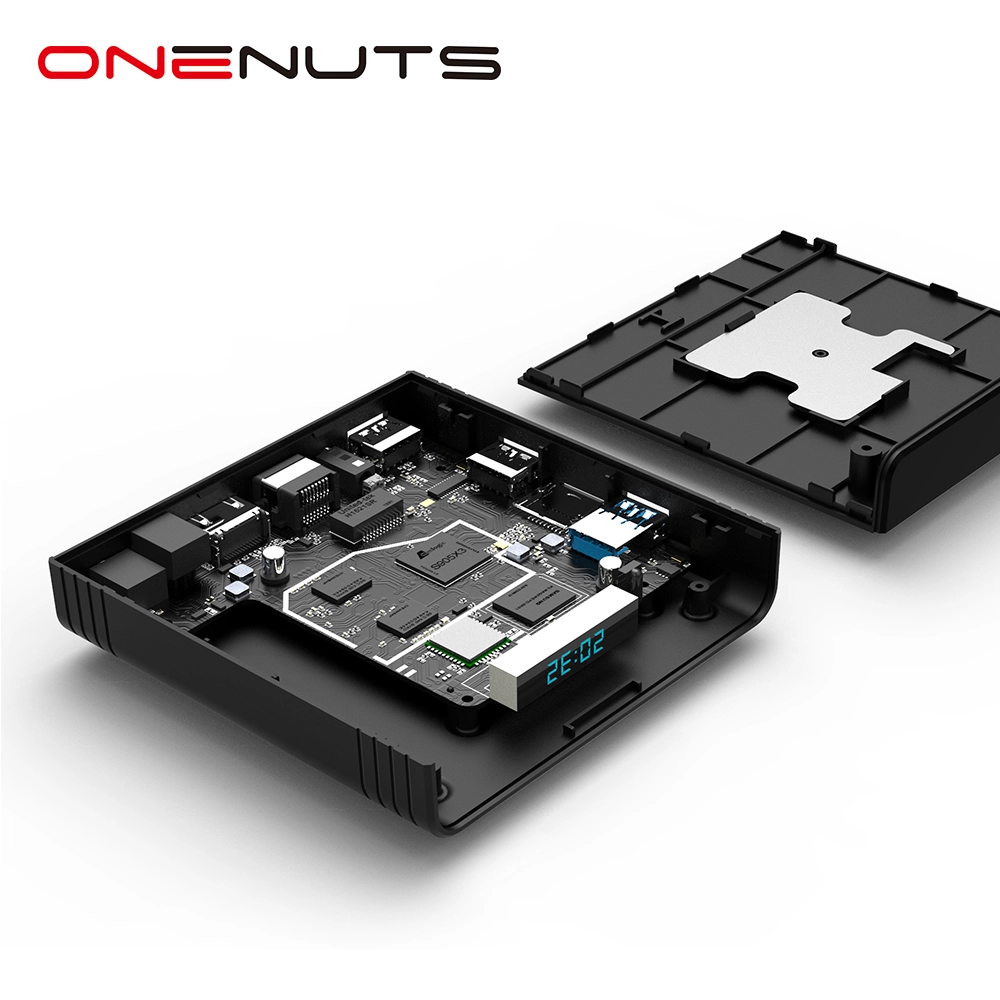

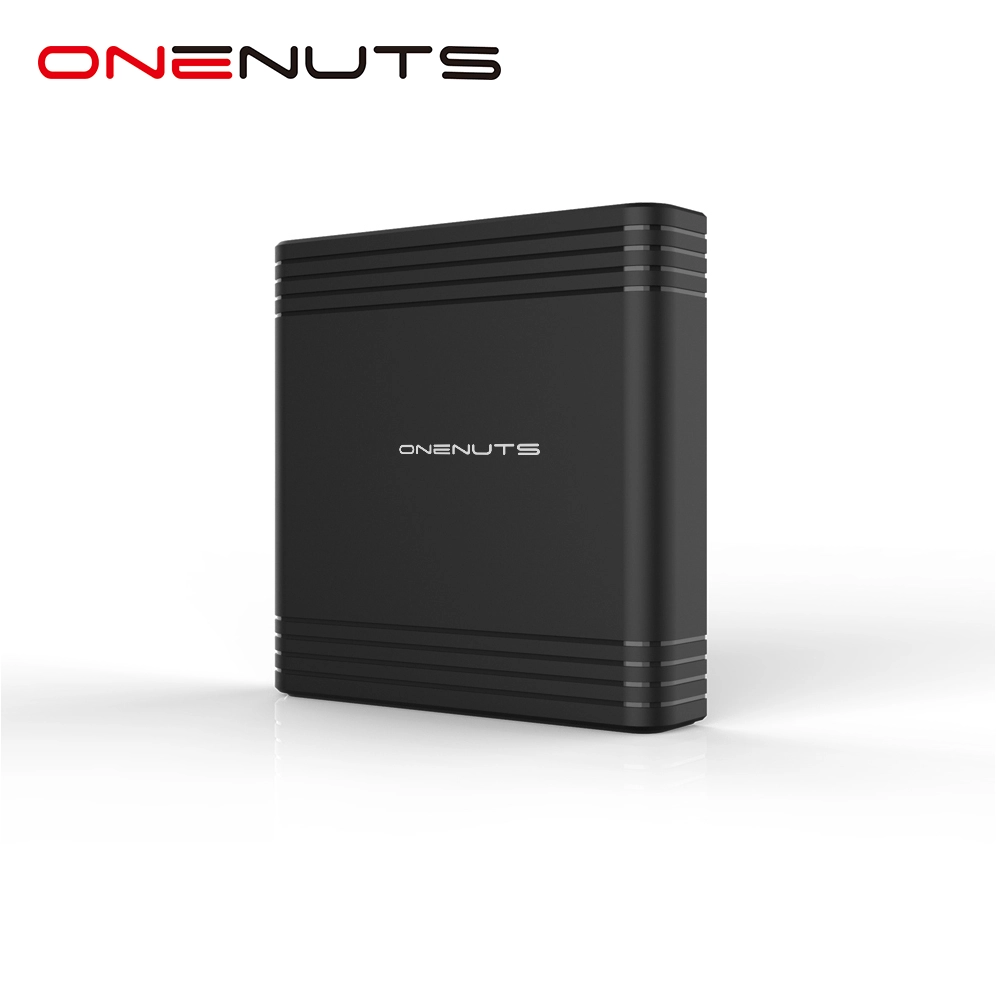

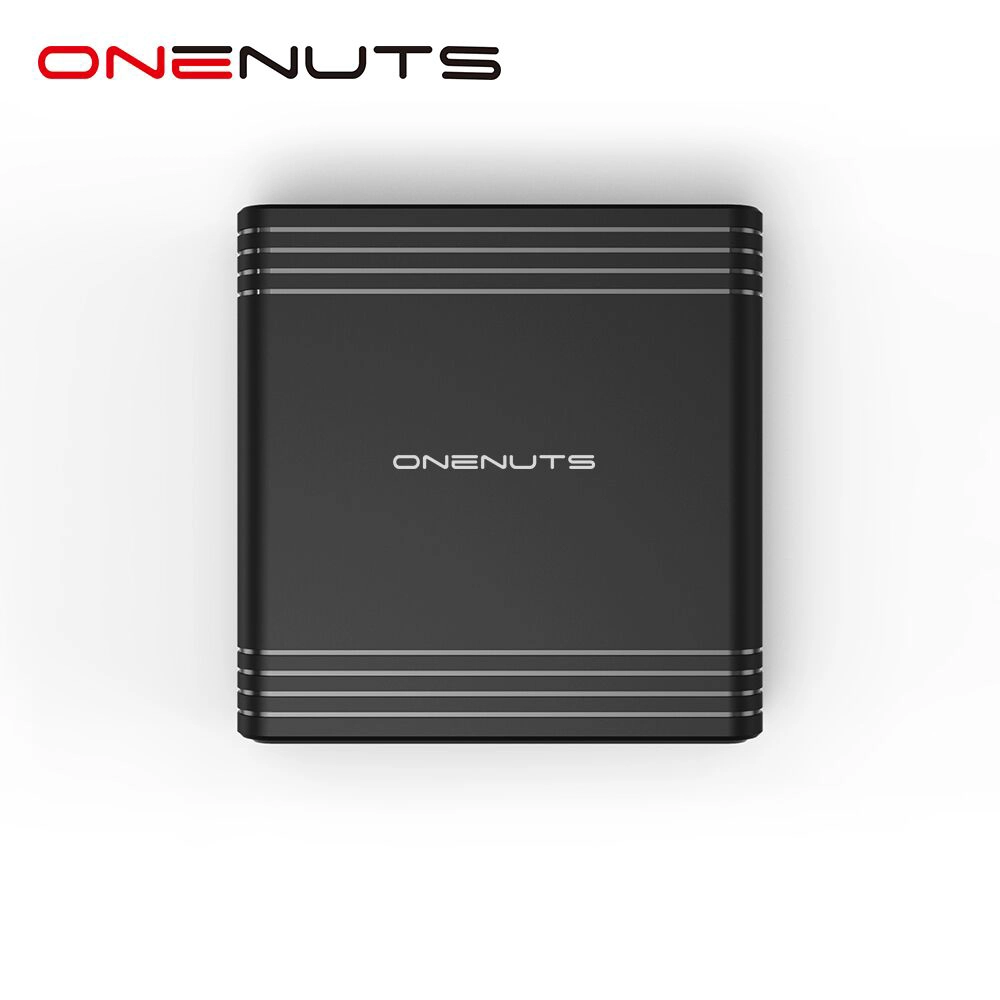

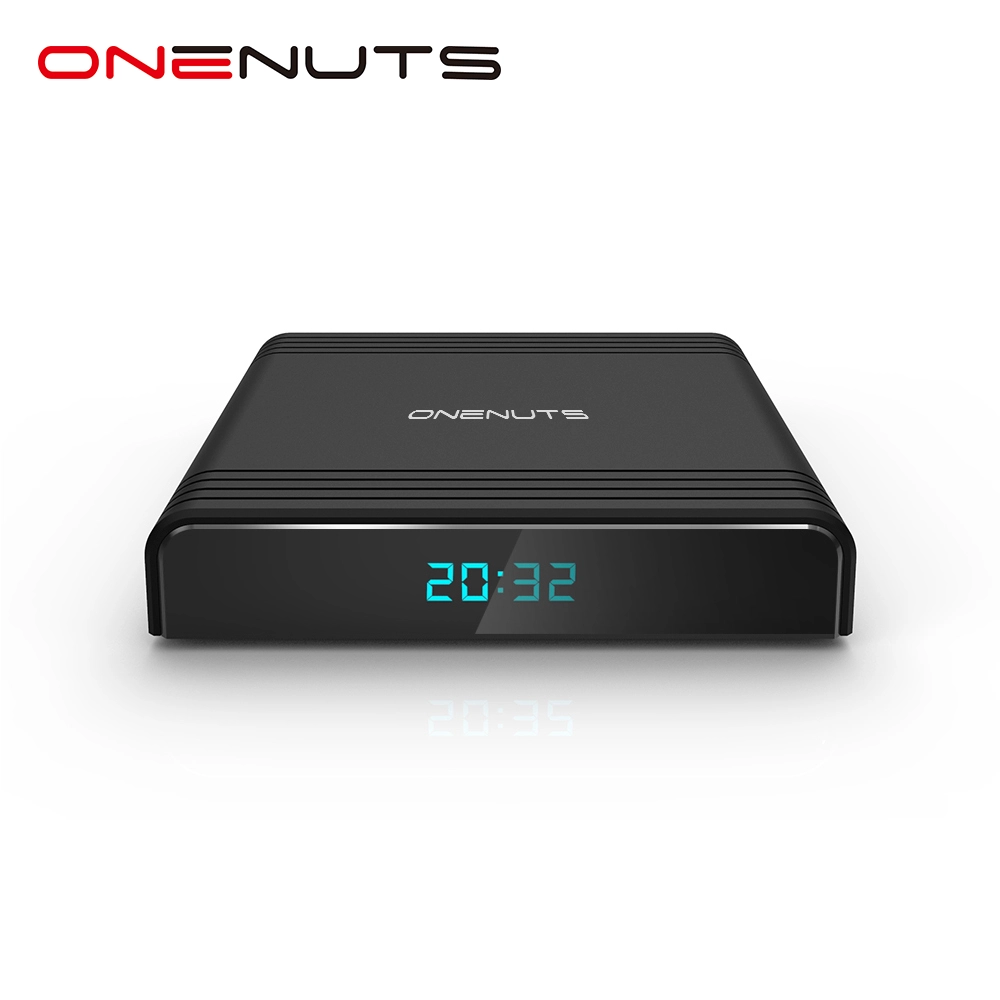

Set Top Box Amlogic S905X3 Support 8K

  • Model No.: Set Top Box Amlogic S905X3 Support 8K
  • CPU: Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU
  • GPU: G31™ MP2 GPU processor
  • ROM: DDR3: 2GB/4GB
  • eMMC: 32GB(Option: 16GB/64GB)
  • OS: Android 9.0
  • WiFi: IEEE 802.11 a/b/g/n/ac; 2.4G/5G
  • Bluetooth: BT; Support Voice Remote

Set Top Box Amlogic S905X3 Support 8K

Specifications

Model No.

Set Top Box Amlogic S905X3 Support 8K

CPU

Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU

GPU

G31™ MP2 GPU processor

ROM

DDR3: 2GB/4GB

eMMC

32GB(Option: 16GB/64GB)

OS

Android 9.0

WiFi

IEEE 802.11 a/b/g/n/ac; 2.4G / 5G

Bluetooth

BT; Support Voice Remote

Video&Audio CODEC

Video

Ÿ  Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Ÿ  Support multi-video decoder up to 4x1080P@60fps

Ÿ  Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding

Ÿ  Video/Picture Decoding

-  VP9 Profile-2 up to 8Kx4K@24 fps

-  H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps

-  AVS2-P2 Profile up to 8Kx4K@24 fps

-  H.264 AVC HP@L5.1 up to 4Kx2K@30fps

-  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

-  WMV/VC-1 SP/MP/AP up to 1080P@60fps

-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

-  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

-  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

-  RealVideo 8/9/10 up to 1080P@60fps

-  Multiple language and multiple format sub-title video support

-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

-  Supports JPEG thumbnail, scaling, rotation and transition effects

-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Low-power VAD

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch

Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs

Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

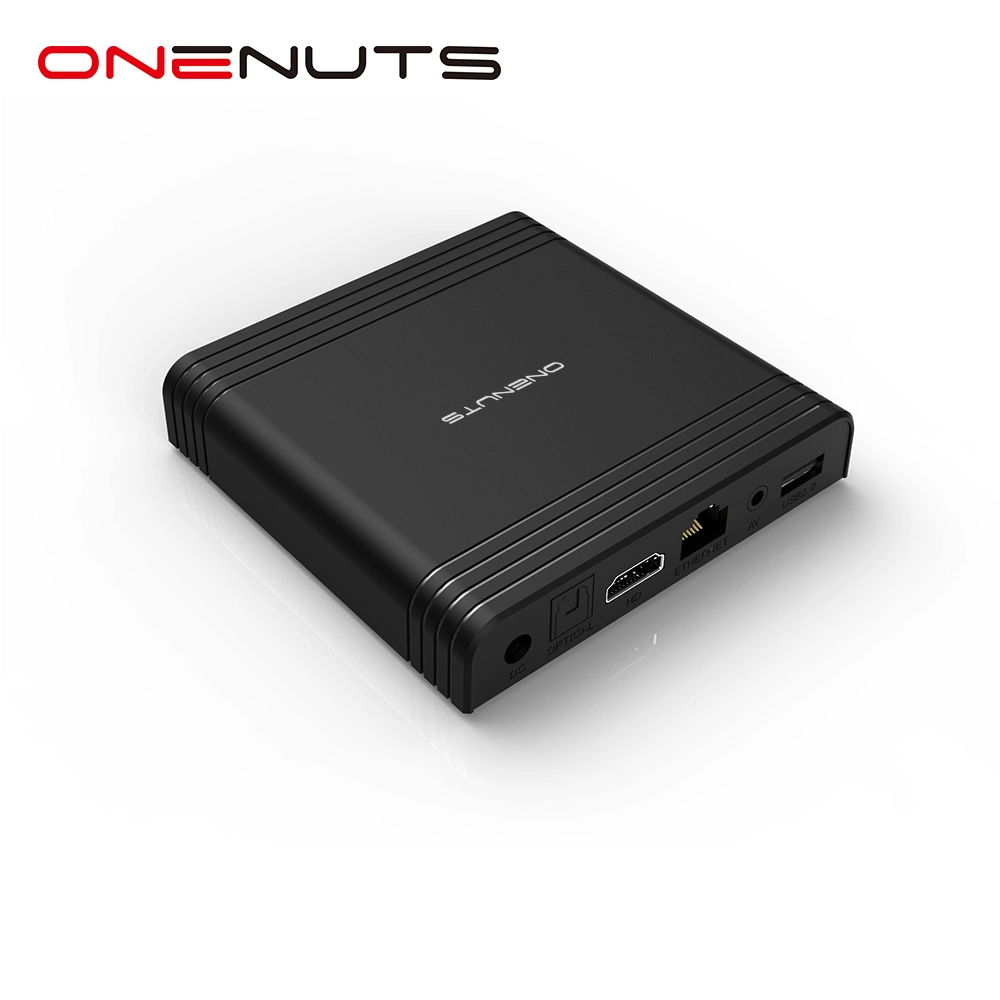

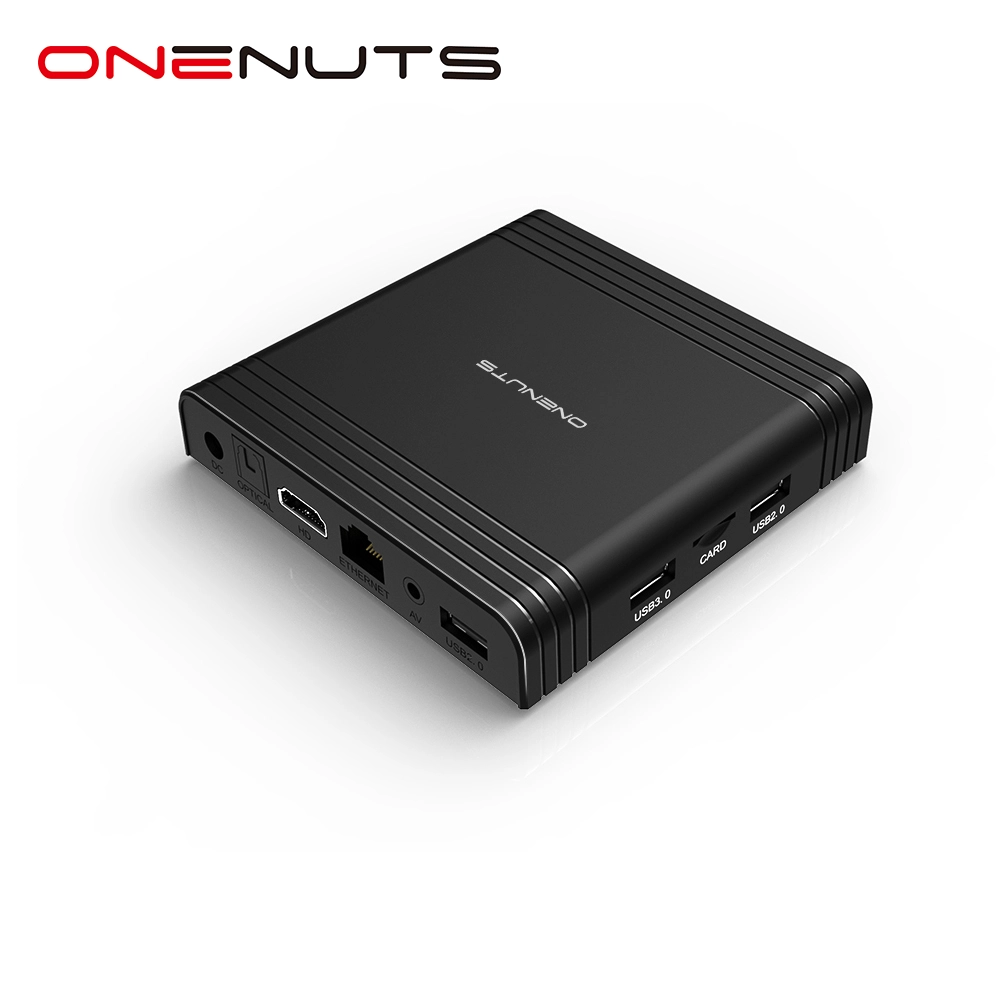

I/O

1*HDMI

HDMI 2.1,Support HDMI CEC, Dynamic HDR and 8Kx4K@24 max resolution output

1*AV OUT

480i/576i standard definition output

3*USB

1*USB 3.0

2*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface

Support 10/100/1000M

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A

Others


HD JPEG, BMP, GIF, PNG, TIF

Language

English French German Spanish Italian etc multilateral languages

Option

Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.

Apps download freely form android market, amazon app store etc.

Local Media playback, Support HDD, U Disc, TF Card.



Set Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8KSet Top Box Amlogic S905X3 Support 8K

Elevate Your Viewing Experience with the Set Top Box Amlogic S905X3 Support 8K

The Set Top Box Amlogic S905X3 Support 8K redefines home entertainment with its cutting-edge features and performance. Here's why it stands out:

  1. Powerful Performance: Equipped with the Amlogic S905X3 chipset, our set-top box delivers lightning-fast processing speed and smooth performance, ensuring seamless streaming and multitasking.

  2. 8K Resolution Support: Experience breathtaking clarity and detail with support for 8K resolution, bringing your favorite movies, shows, and games to life like never before.

  3. HDR and Dolby Vision: Enjoy vivid colors, deep contrasts, and stunning visuals with HDR and Dolby Vision support, enhancing your viewing experience with lifelike imagery and immersive audio.

  4. Enhanced Connectivity: Connect effortlessly to your home network and other devices with built-in Wi-Fi, Ethernet, HDMI, and USB ports, ensuring versatile connectivity options for seamless integration with your existing setup.

  5. Smart Features: Access a world of entertainment with pre-installed apps, streaming services, and games, offering endless entertainment possibilities at your fingertips.

  6. User-Friendly Interface: Navigate through menus, apps, and settings with ease using our intuitive user interface, designed for simplicity and convenience.

  7. Compact and Stylish Design: With its sleek and compact design, our set-top box complements any home entertainment system, adding style and functionality to your living space.

  8. Regular Updates: Stay up-to-date with the latest features, performance improvements, and security patches through regular firmware updates, ensuring your set-top box remains optimized and secure.

Experience the future of home entertainment with the Set Top Box Amlogic S905X3 Support 8K. Transform your TV into a cinematic experience and enjoy unparalleled viewing quality and performance.
