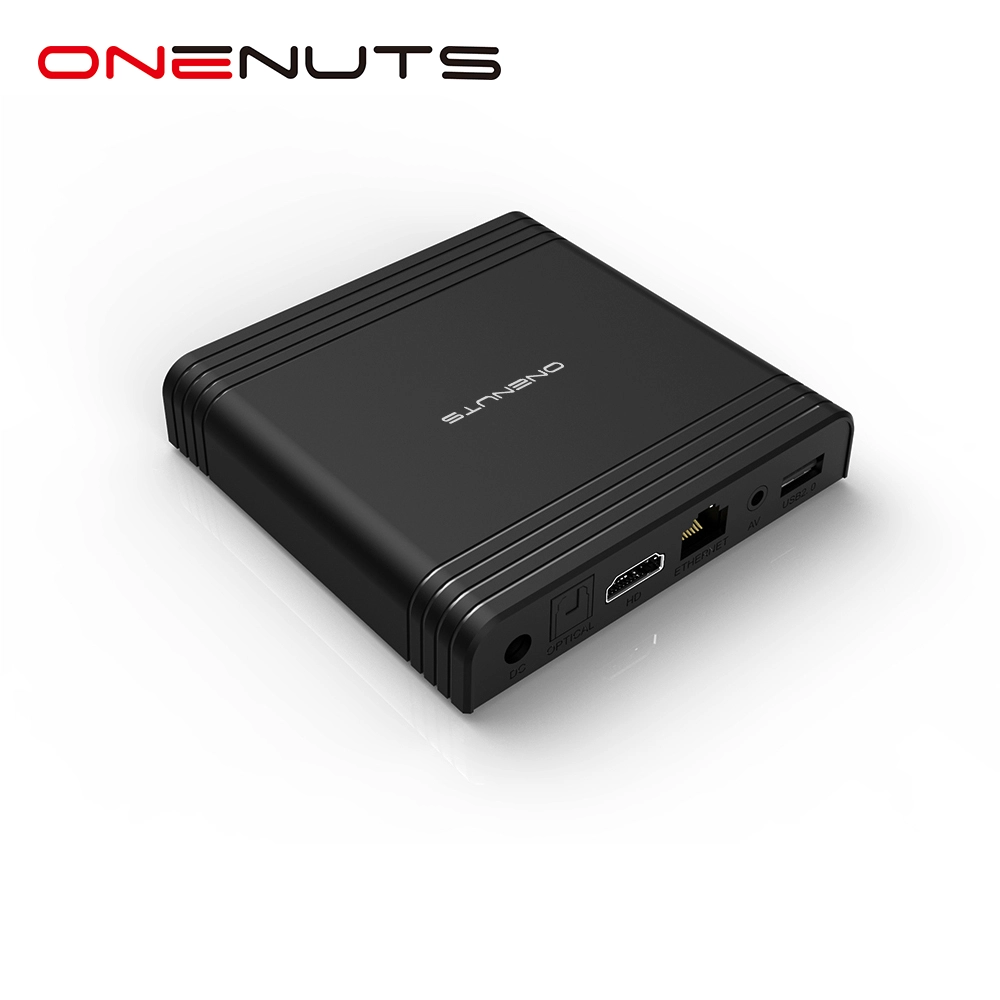

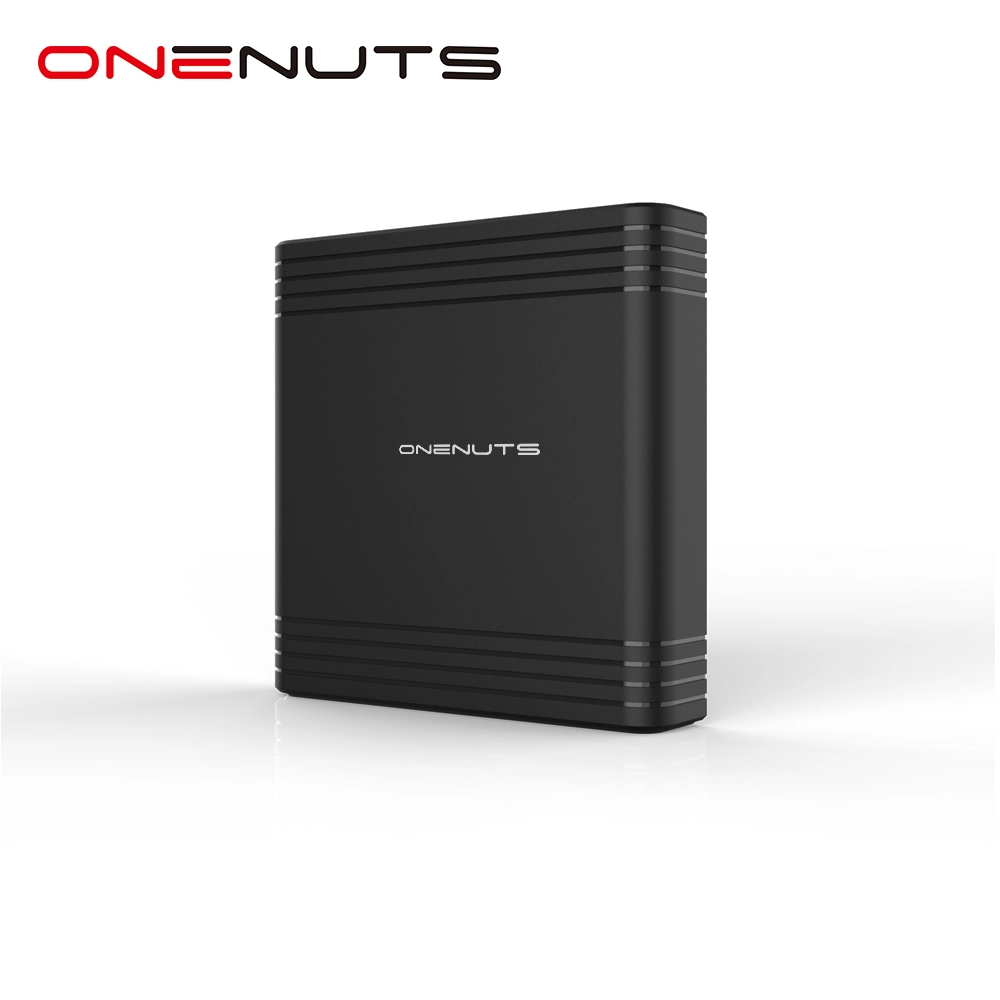

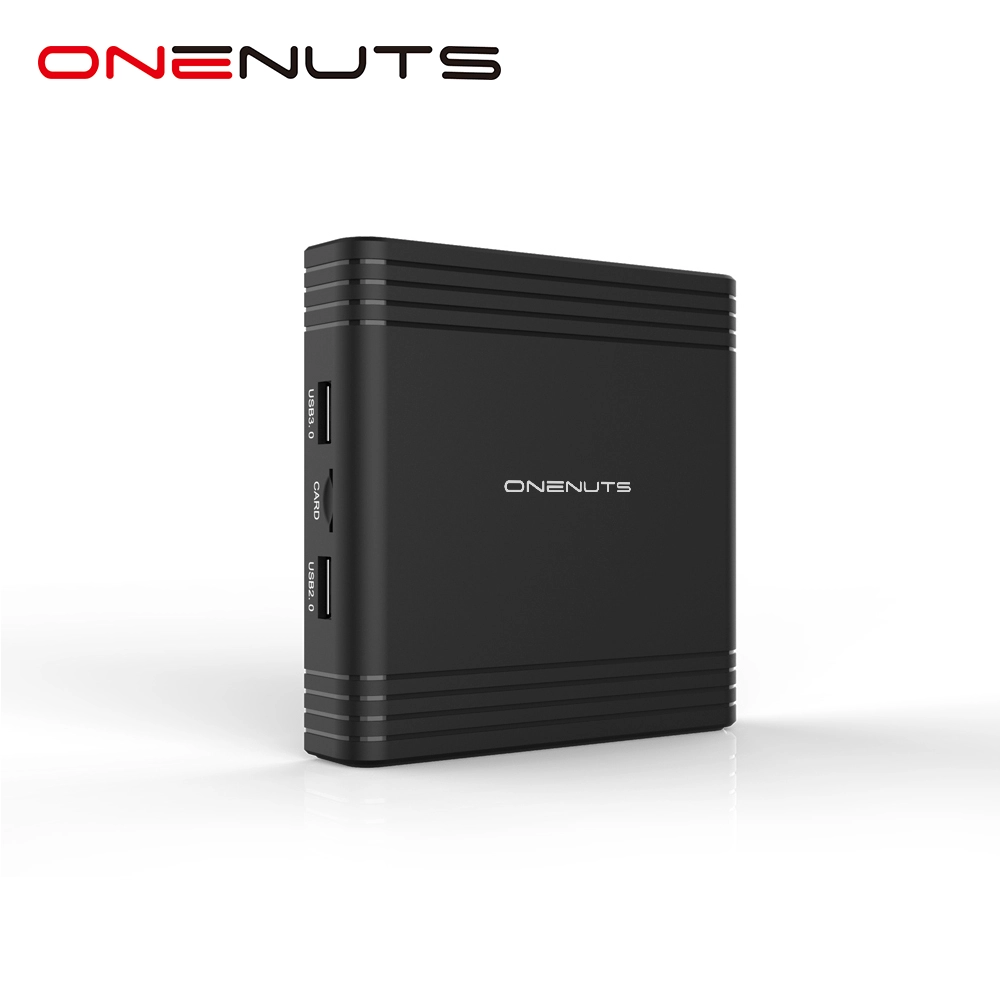

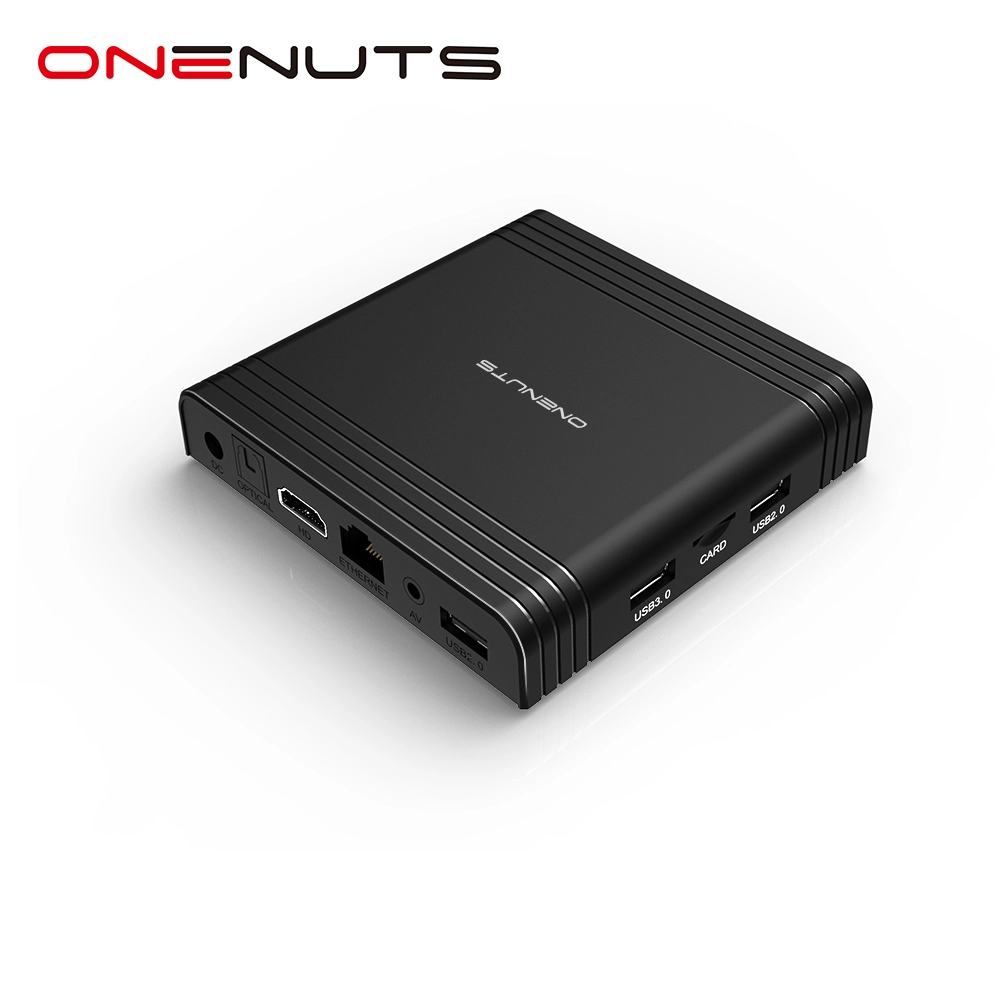

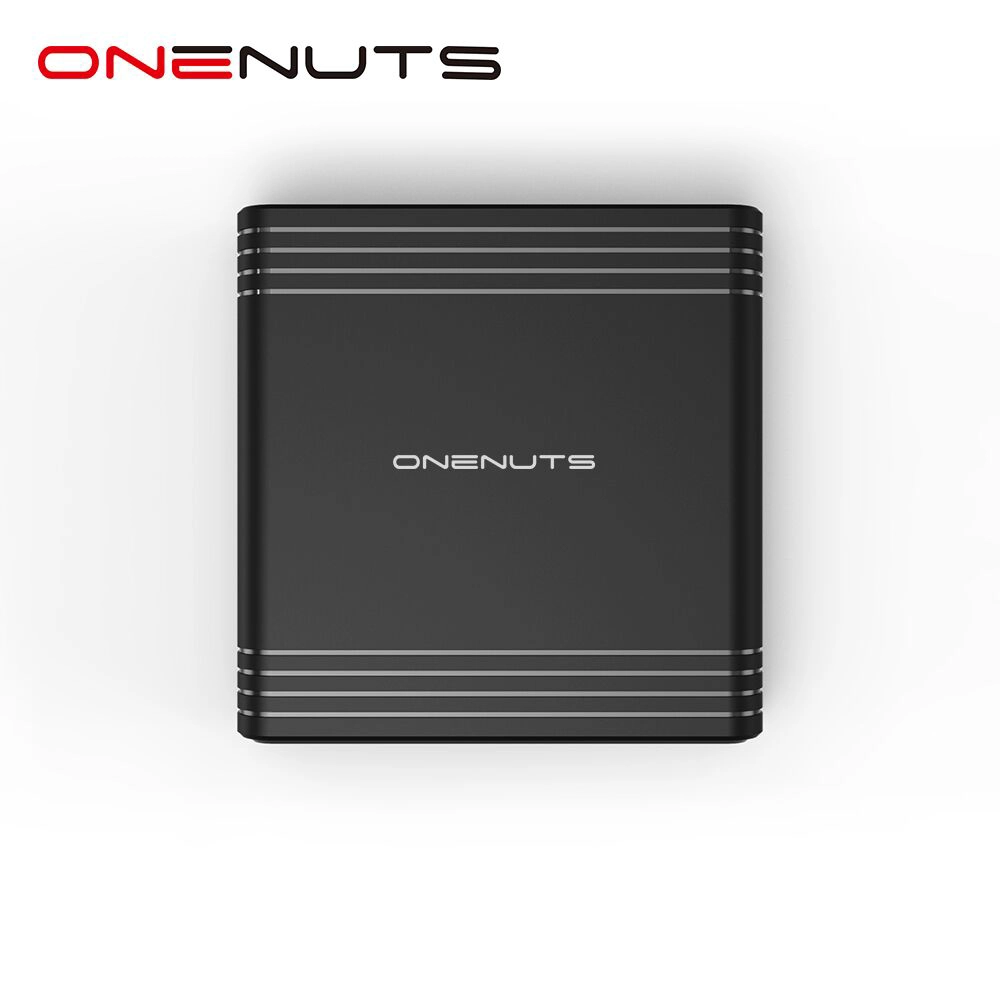

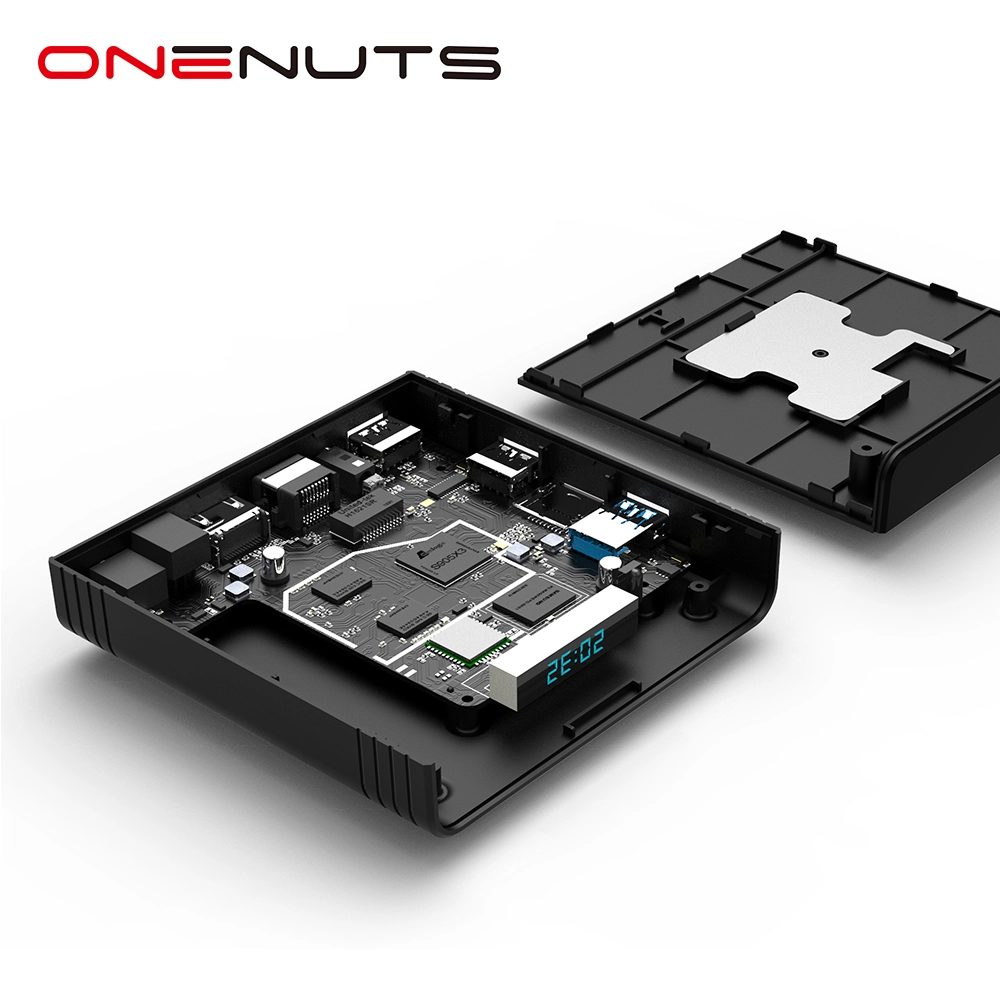

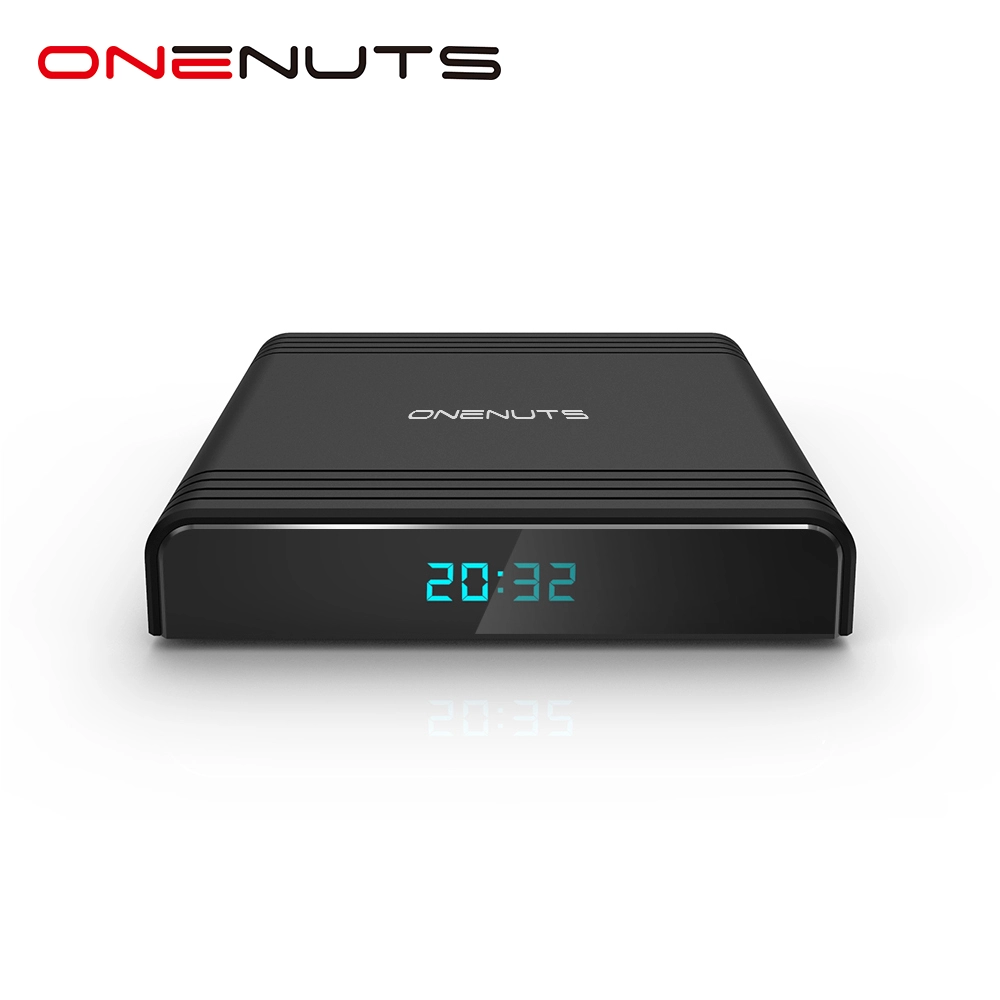

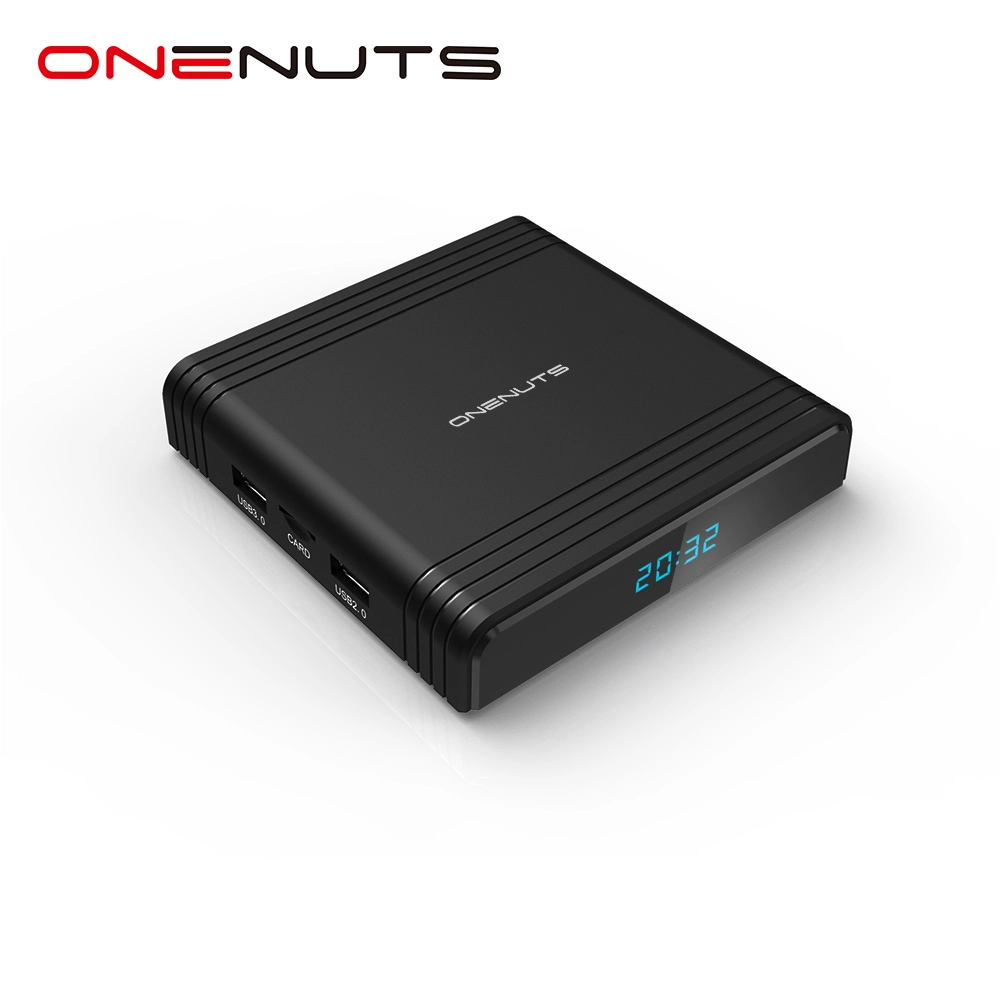

TV Set Top Box Amlogic S905X3

  • Model No.: TV Set Top Box Amlogic S905X3
  • CPU: Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU
  • GPU: G31™ MP2 GPU processor
  • ROM: DDR3: 2GB/4GB
  • eMMC: 32GB(Option: 16GB/64GB)
  • OS: Android 9.0
  • WiFi: IEEE 802.11 a/b/g/n/ac; 2.4G / 5G
  • Bluetooth: BT; Support Voice Remote

TV Set Top Box Amlogic S905X3

Specifications

Model No.

TV Set Top Box Amlogic S905X3

CPU

Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU

GPU

G31™ MP2 GPU processor

ROM

DDR3: 2GB/4GB

eMMC

32GB(Option: 16GB/64GB)

OS

Android 9.0

WiFi

IEEE 802.11 a/b/g/n/ac; 2.4G / 5G

Bluetooth

BT; Support Voice Remote

Video&Audio CODEC

Video

Ÿ  Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Ÿ  Support multi-video decoder up to 4x1080P@60fps

Ÿ  Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding

Ÿ  Video/Picture Decoding

-  VP9 Profile-2 up to 8Kx4K@24 fps

-  H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps

-  AVS2-P2 Profile up to 8Kx4K@24 fps

-  H.264 AVC HP@L5.1 up to 4Kx2K@30fps

-  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

-  WMV/VC-1 SP/MP/AP up to 1080P@60fps

-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

-  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

-  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

-  RealVideo 8/9/10 up to 1080P@60fps

-  Multiple language and multiple format sub-title video support

-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

-  Supports JPEG thumbnail, scaling, rotation and transition effects

-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Low-power VAD

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch

Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs

Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

I/O

1*HDMI

HDMI 2.1,Support HDMI CEC, Dynamic HDR and 8Kx4K@24 max resolution output

1*AV OUT

480i/576i standard definition output

3*USB

1*USB 3.0

2*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface

Support 10/100/1000M

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A

Others


HD JPEG, BMP, GIF, PNG, TIF

Language

English French German Spanish Italian etc multilateral languages

Option

Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.

Apps download freely form android market, amazon app store etc.

Local Media playback, Support HDD, U Disck, TF Card.



TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3TV Set Top Box Amlogic S905X3



Our TV Set Top Box powered by the Amlogic S905X3 chipset is designed to revolutionize your entertainment experience. With a focus on seamless streaming, stunning visuals, and immersive audio, this device brings next-generation capabilities to your living room.

Seamless Streaming:

Enjoy uninterrupted streaming of your favorite movies, shows, and online content with seamless connectivity and fast processing speeds. The Amlogic S905X3 chipset ensures smooth playback and minimal buffering, providing a hassle-free viewing experience.

Stunning 4K Visuals:

Immerse yourself in crystal-clear 4K resolution for exceptional detail and lifelike visuals. Whether you're watching movies, gaming, or browsing photos, every scene comes to life with vibrant colors and sharp clarity.

Immersive Audio:

Experience immersive audio with support for advanced audio technologies. From Dolby Atmos to DTS-HD, enjoy rich, multidimensional sound that enhances your viewing experience and brings your entertainment to life.

Versatile Connectivity:

Connect to a world of content with versatile connectivity options, including HDMI, USB, Ethernet, and more. Stream from your favorite apps, access local media, and connect external devices effortlessly.

User-Friendly Interface:

Navigate through apps, channels, and settings with ease using the intuitive interface. Customize your viewing experience, access a wide range of content, and control playback with convenience.

Compact and Stylish Design:

The sleek and compact design of our TV Set Top Box complements any entertainment setup. Its modern aesthetics and space-saving form factor blend seamlessly into your home while delivering powerful performance.

Conclusion:

In conclusion, our TV Set Top Box powered by the Amlogic S905X3 chipset offers advanced features for a superior entertainment experience. Enjoy seamless streaming, stunning 4K visuals, immersive audio, versatile connectivity, and user-friendly operation in a compact and stylish package. Upgrade your home entertainment with cutting-edge technology and elevate your viewing experience to new heights.
