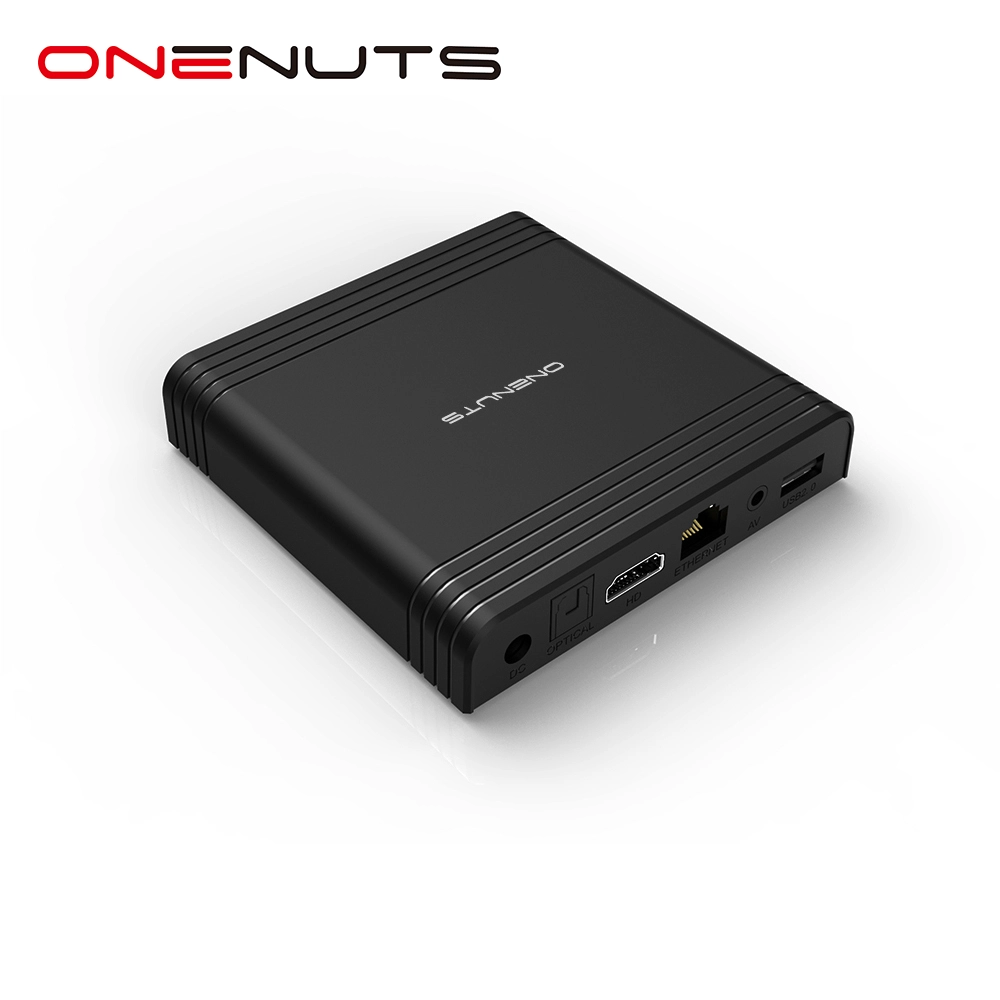

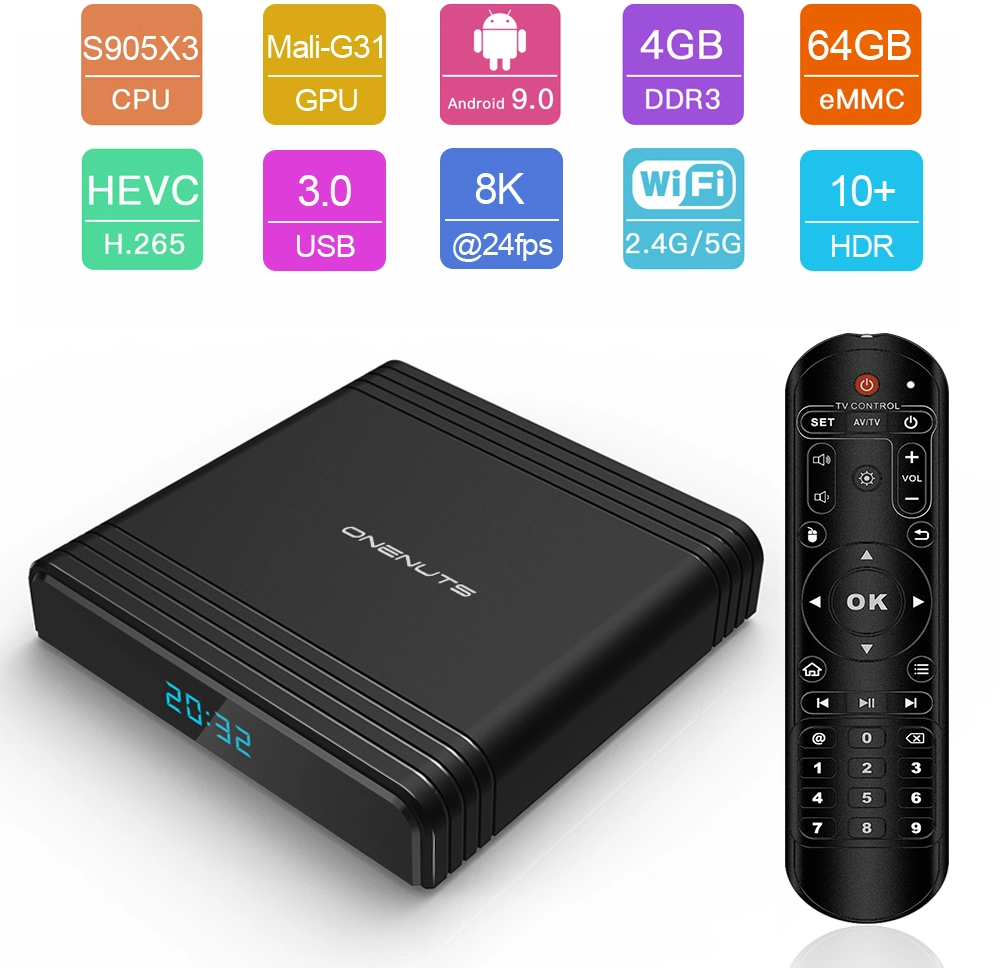

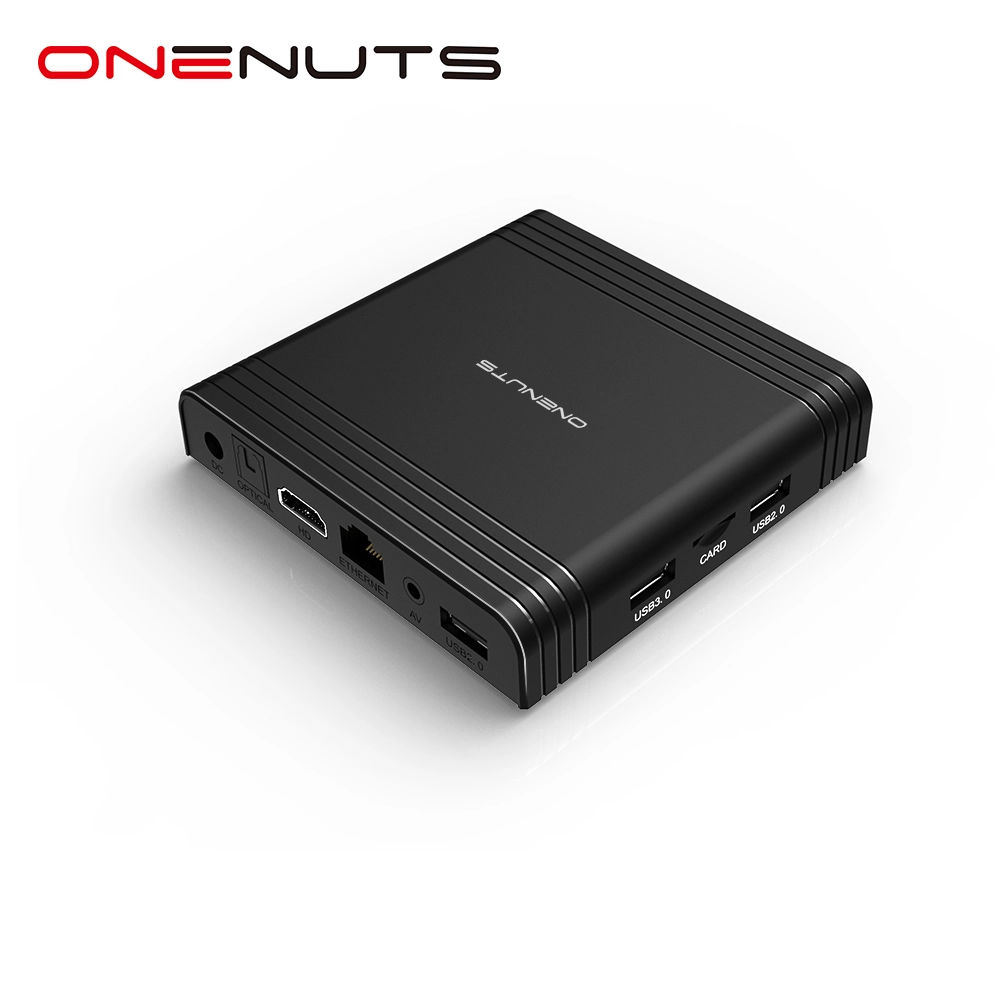

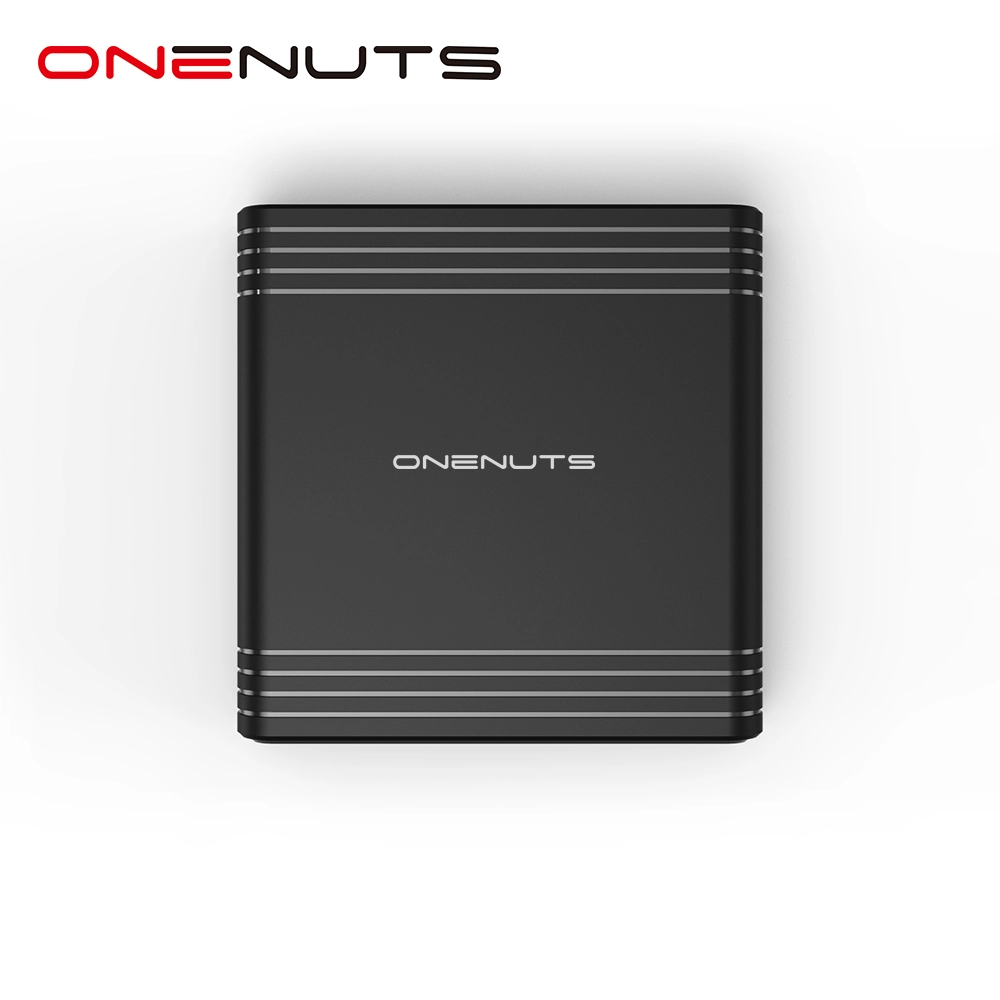

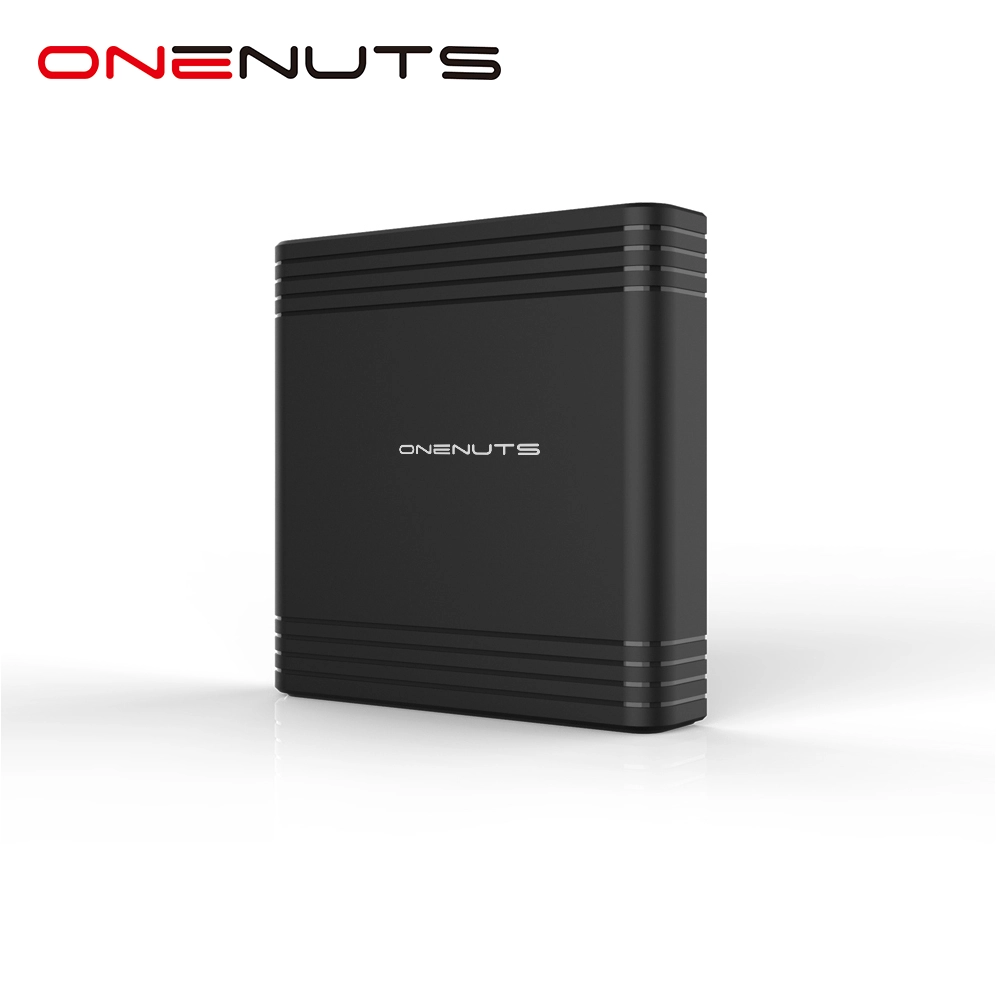

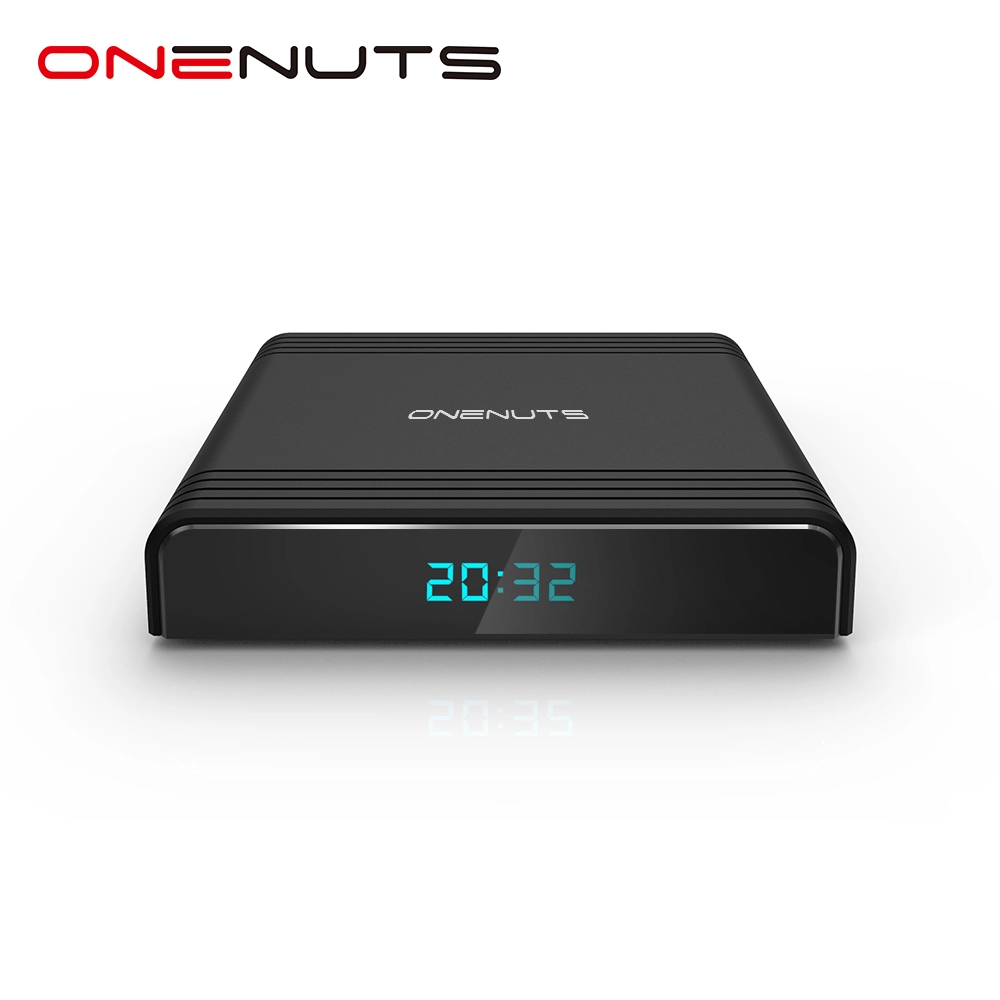

Newest Amlogic S905X3 Android 9.0 4G RAM 64G eMMC 8K Set Top Box With Dual WiFi USB 3.0 TV Box

  • Model No.: Nut Air Amlogic S905X3
  • CPU: Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU
  • GPU: G31™ MP2 GPU processor
  • ROM: DDR3: 2GB/4GB
  • eMMC: 32GB(Option: 16GB/64GB)
  • OS: Android 9.0
  • WiFi: IEEE 802.11 a/b/g/n/ac; 2.4G / 5G
  • Bluetooth: BT; Support Voice Remote

Newest Amlogic S905X3 Android 9.0 4G RAM 64G eMMC 8K Set Top Box With Dual WiFi USB 3.0 TV Box

Specifications

Model No.

Nut Air Amlogic S905X3

CPU

Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU

GPU

G31™ MP2 GPU processor

ROM

DDR3: 2GB/4GB

eMMC

32GB(Option: 16GB/64GB)

OS

Android 9.0

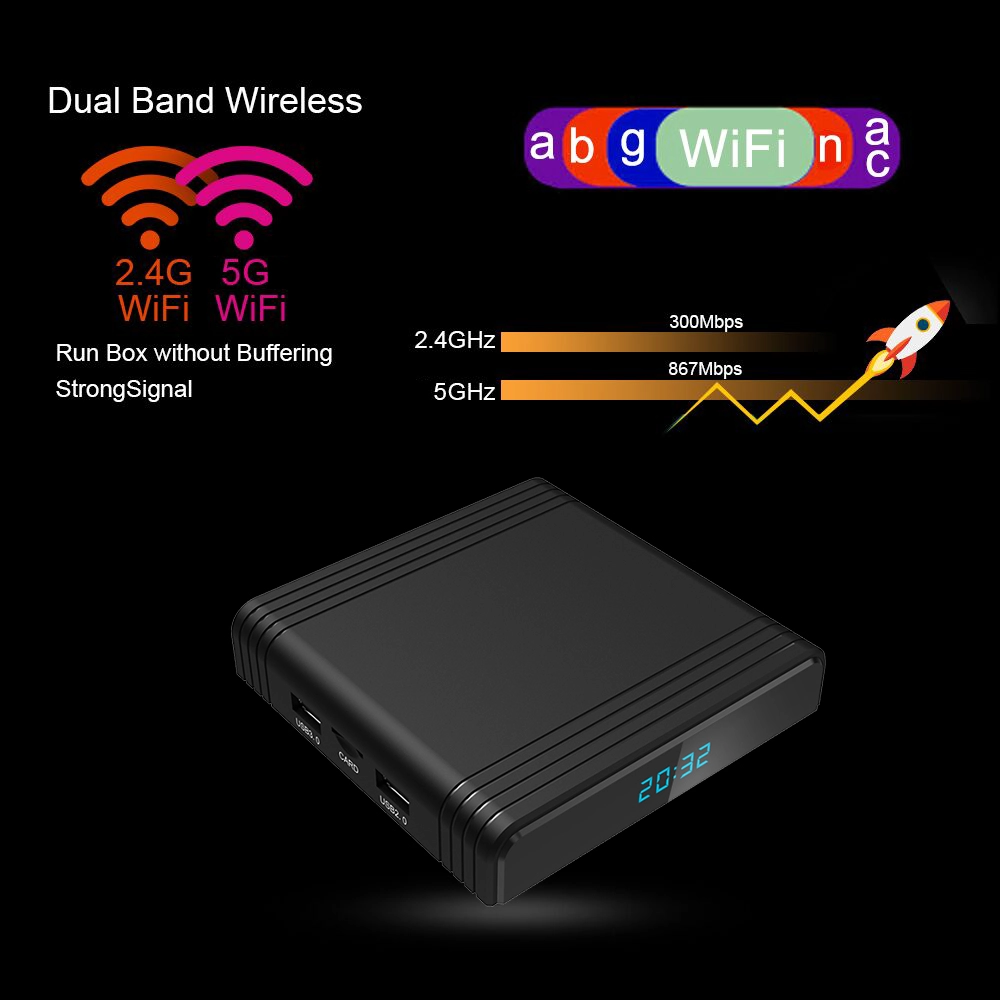

WiFi

IEEE 802.11 a/b/g/n/ac; 2.4G / 5G

Bluetooth

BT; Support Voice Remote

Video&Audio CODEC

Video

Ÿ  Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Ÿ  Support multi-video decoder up to 4x1080P@60fps

Ÿ  Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding

Ÿ  Video/Picture Decoding

-  VP9 Profile-2 up to 8Kx4K@24 fps

-  H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps

-  AVS2-P2 Profile up to 8Kx4K@24 fps

-  H.264 AVC HP@L5.1 up to 4Kx2K@30fps

-  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

-  WMV/VC-1 SP/MP/AP up to 1080P@60fps

-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

-  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

-  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

-  RealVideo 8/9/10 up to 1080P@60fps

-  Multiple language and multiple format sub-title video support

-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

-  Supports JPEG thumbnail, scaling, rotation and transition effects

-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Low-power VAD

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch

Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs

Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

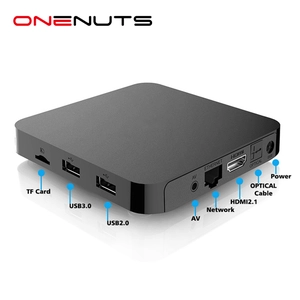

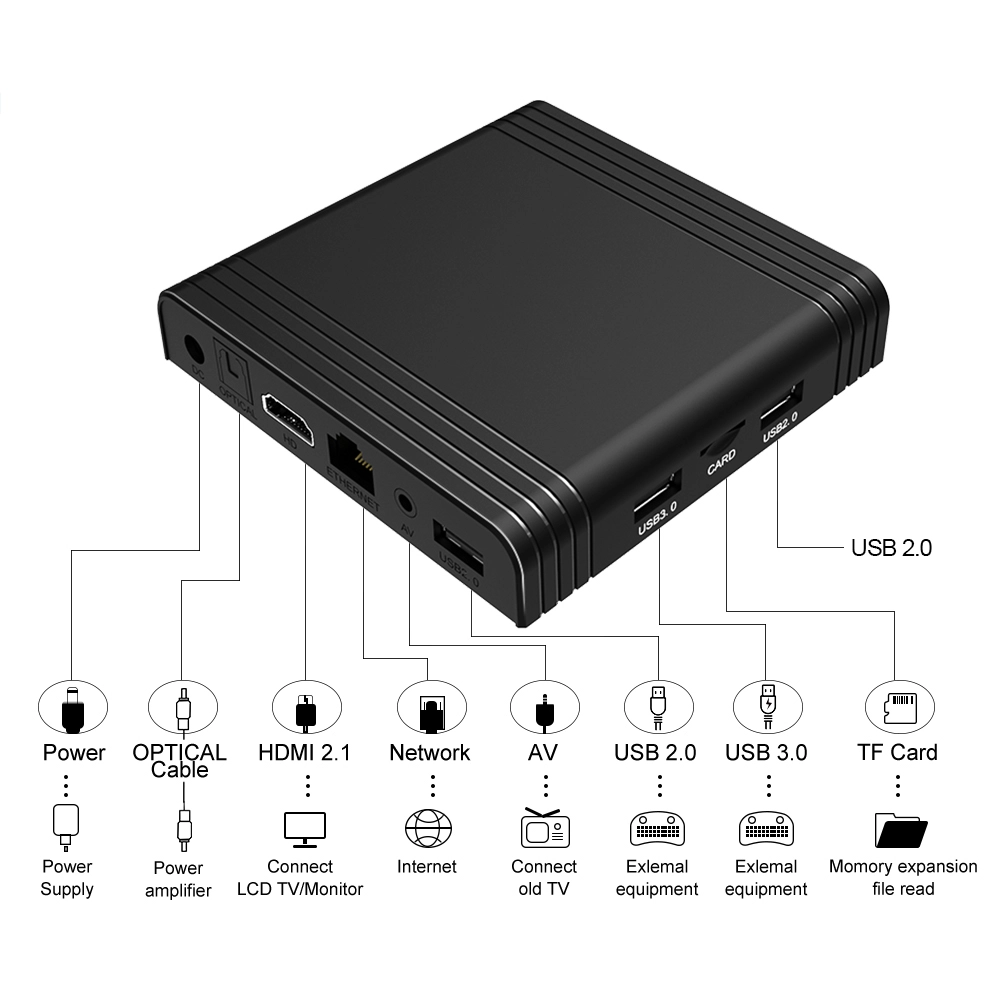

I/O

1*HDMI

HDMI 2.1,Support HDMI CEC, Dynamic HDR and 8Kx4K@24 max resolution output

1*AV OUT

480i/576i standard definition output

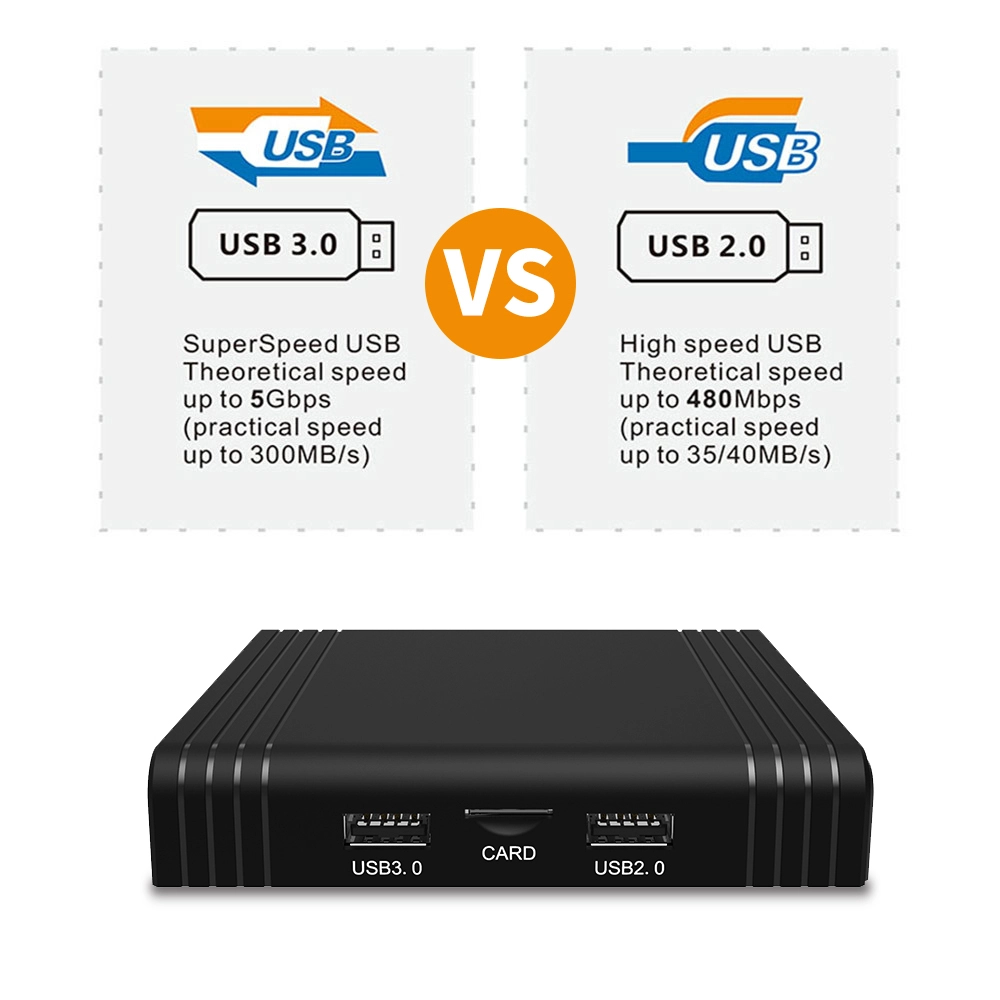

3*USB

1*USB 3.0

2*USB 2.0

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface

Support 10/100/1000M

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A

Others


HD JPEG, BMP, GIF, PNG, TIF

Language

English French German Spanish Italian etc multilateral languages

Option

Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.

Apps download freely form android market, amazon app store etc.

Local Media playback, Support HDD, U Disck, TF Card.
