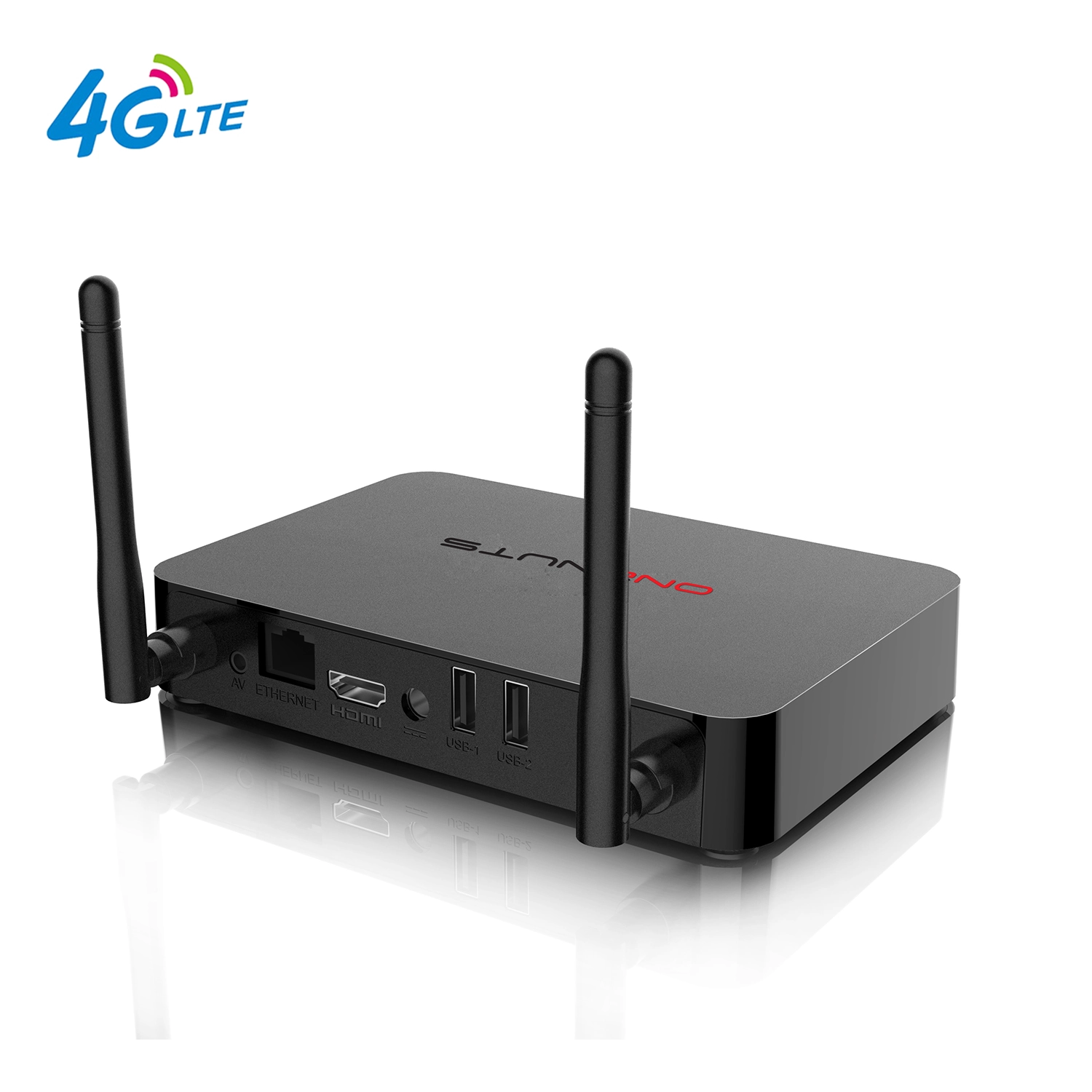

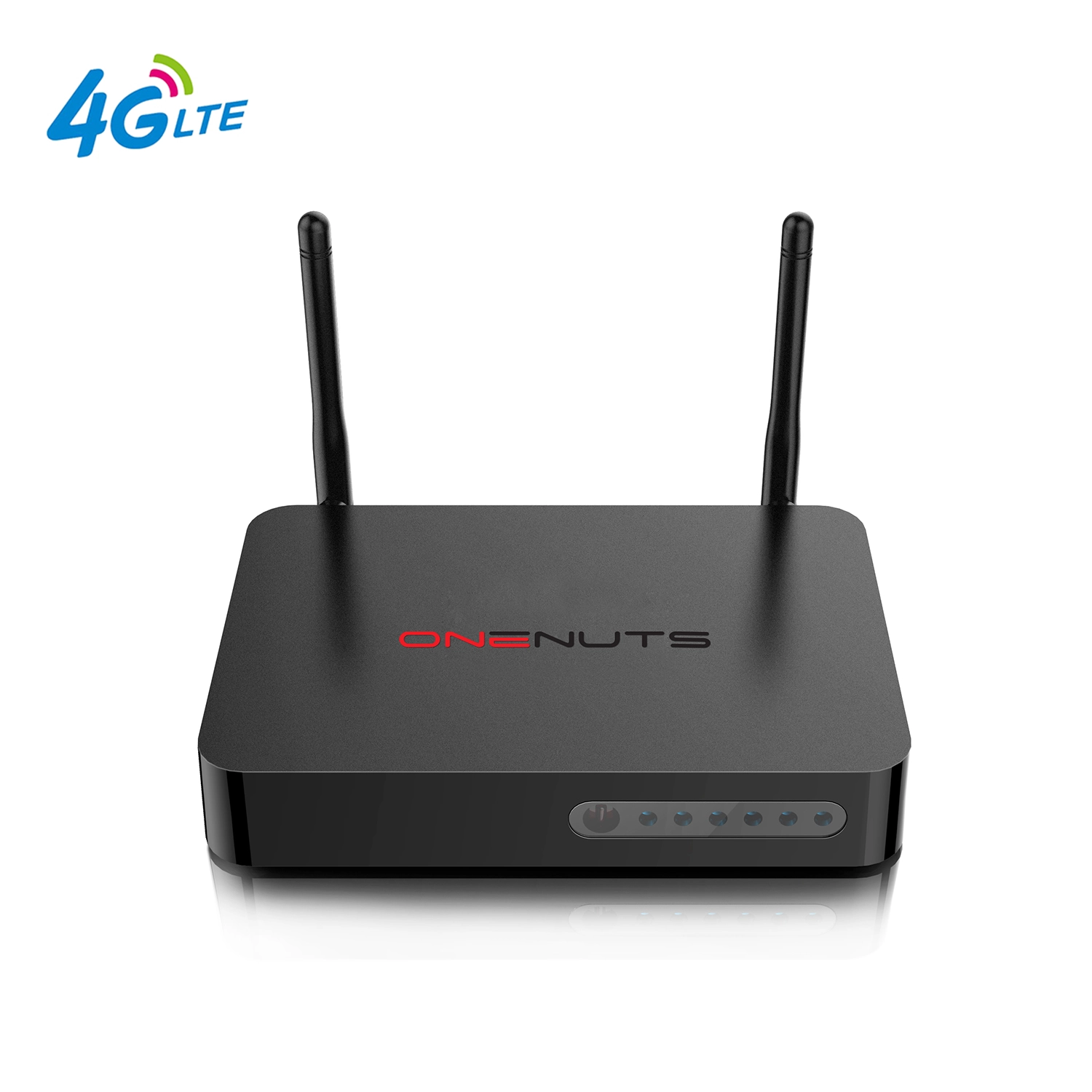

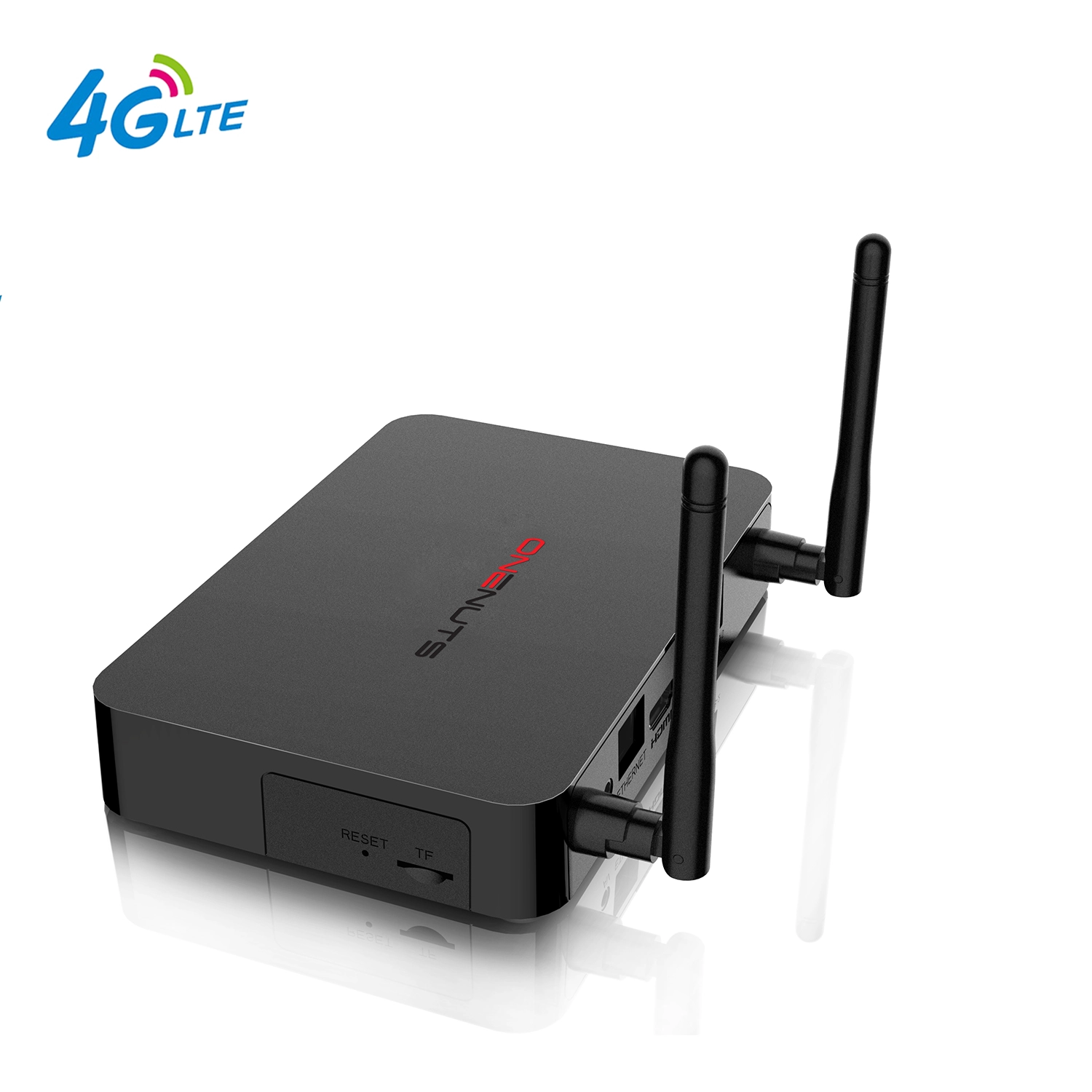

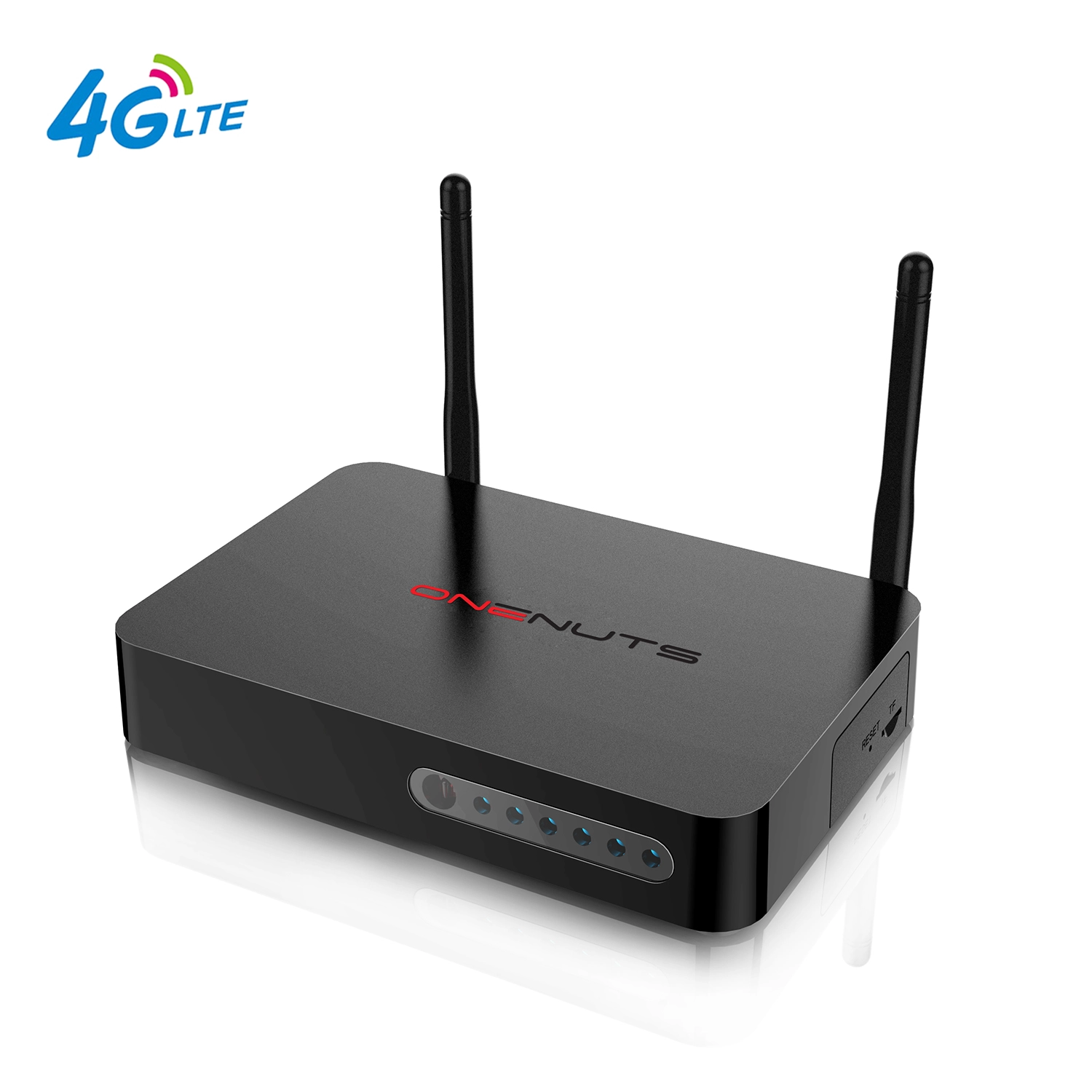

Smart Android TV Box, Android TV Box Huawei WCDMA Modem built in
- Model No.：Android TV Box Huawei WCDMA Modem built in
- CPU：Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
- GPU：Penta-Core Mali-450 Up to 750Mhz+
- SDRAM：1GB/2GB
- Flash：8GB/16G/32G-eMMC (Optional)
- WiFi：WiFi (802.11b/g/n) 2.4G/5G
- Blutooth：BT4.0
- Android OS：Android6.0/7.0
- Transport protocols：DLNA, Airplay
Smart Android TV Box, Android TV Box Huawei WCDMA Modem built in
|
Specifications |
|
|
Model No. |
Android TV Box Huawei WCDMA Modem built in |
|
CPU |
Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS) |
|
GPU |
Penta-Core Mali-450 Up to 750Mhz+ |
|
SDRAM |
1GB/2GB |
|
Flash |
8GB/16G/32G-eMMC (Optional) |
|
WiFi |
WiFi (802.11b/g/n) 2.4G/5G |
|
Blutooth |
BT4.0 |
|
LAN Ethernet |
Ethernet:100M, Standard RJ-45 |
|
Android OS |
Android6.0/7.0 |
|
Transport protocols |
DLNA, Airplay |
|
4G LTE Module(optional) |
|
|
Internal 4G LTE Module(optional) |
LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps |
|
MHZ-E (EUROPE) |
B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM |
|
MHZ-A (AMERICA) |
B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA, 900/1800@GSM |
|
MHZ-CE (CHINA/INDIA) |
B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM |
|
MHZ-E(EMEA/KOREA/THAILAND/INDIA) |
B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM |
|
MHZ-V(NORTH AMERICA) |
B4/B13@FDD LTE |
|
MHZ-A(NORTH AMERICA) |
B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA |
|
MHZ-AU(Latin America/ANZ/TAIWAN) |
B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
|
MHZ-J(JAPAN) |
B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA |
|
Internal zigbee(optional) |
Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN, @2400-2483.5MHz |
|
Main Features |
|
|
Video Docoder |
H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K@30fps, AVS+ 1080P@60fps, H.264 1080P @60fps |
|
Decoder format |
HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6, RealVideo8/9/10 |
|
Media format |
Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
|
Music format |
MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
|
Photo format |
HD JPEG/BMP/GIF/PNG/TIFF |
|
Network Function |
Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. |
|
Language |
Chinese, English ,Germany, Japanese, Korea etc. |
|
Port Specifications |
|
|
USB host |
2* external USB2.0, 2*internal USB 2.0 |
|
Card reader |
1* TF CARD |
|
Micro-SIM |
1* Micro-SIM, 1* hidden Micro-SIM card slot |
|
HDTV |
1* HDTV output |
|
LAN |
1* RJ45 LAN Ethernet 10M/100M |
|
AV OUT |
1* AV-OUT/IR-in (optional) |
|
Others |
|
|
Power Supply |
Input100-240V AC, Output5V/2A DC |
|

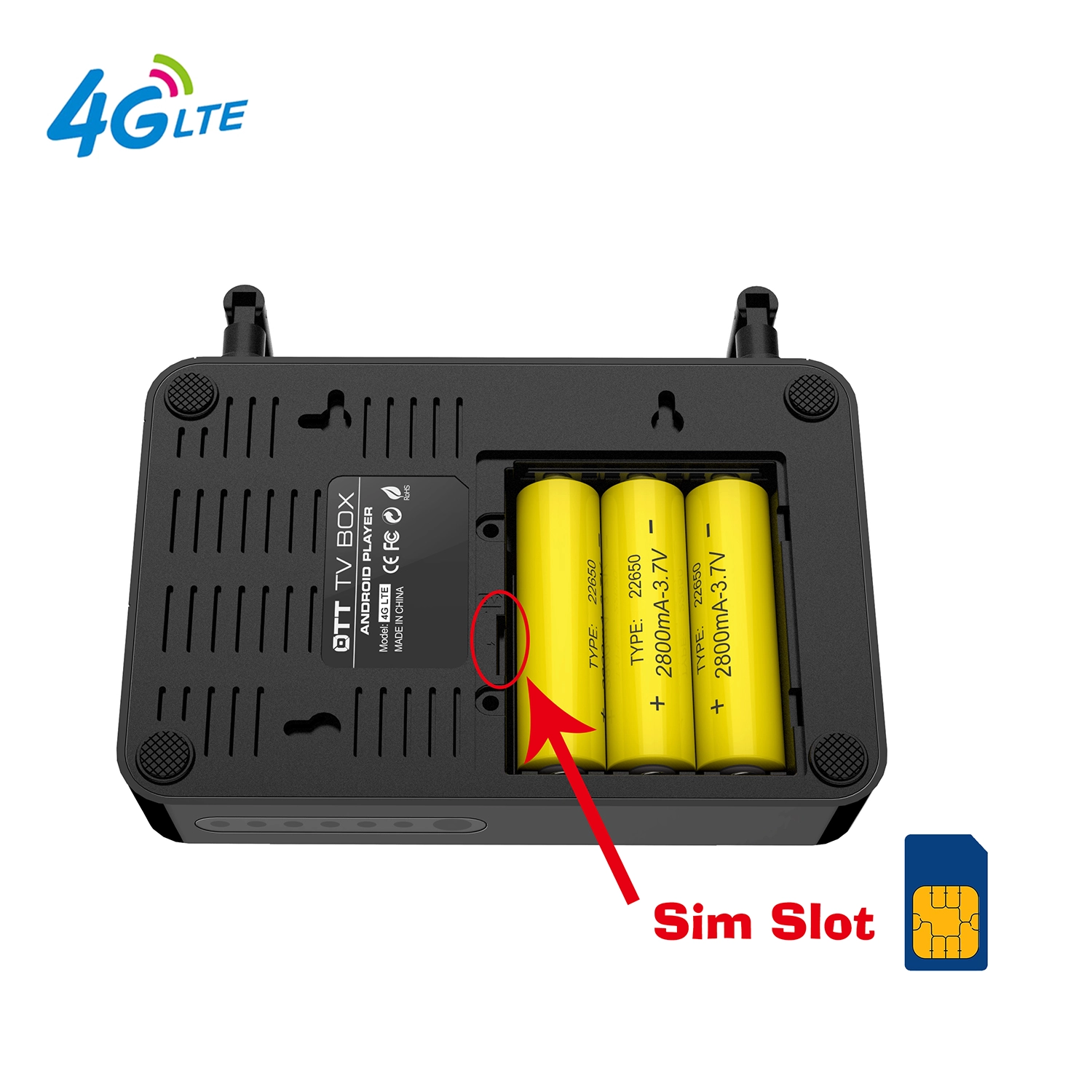

Internal recharge lithium battery(optional) |
18650 battery 1-3 pcs or equivalent battery module |
1. With the 4G LTE Modules, use the network anytime, anywhere, No restrictions on WIFI and network cable.
2. Different 4G LTE modules for selection. Support multiple countries to meet the needs of different customers.
3. Built in battery inside of the player, can update the time properly without the internet, ideal for customers with digital signage.
4. The Advantage of humanized design, the player has four holes on the back , can be hung behind the screen, moreover, the size is very mini, suitable for digital signage customers.
5. High cost performance, high configuration, good quality.
1. Huawei WCDMA Modem Built-In The Smart Android TV Box comes with a built-in Huawei WCDMA modem, ensuring stable and fast internet connectivity for streaming, gaming, and browsing.
2. High-Quality Video Playback Enjoy high-definition video playback with support for 4K and Full HD content. Immerse yourself in stunning visuals and crystal-clear audio.
3. Wide App Compatibility Access a wide range of streaming apps, games, and utilities from the Google Play Store. Customize your entertainment experience with your favorite apps and services.
4. Seamless Connectivity Connect wirelessly to your home network or use the Ethernet port for a stable and reliable connection. Stream content, download apps, and browse the web without interruptions.
5. User-Friendly Interface Navigate through apps, settings, and content with ease using the intuitive user interface. Access your favorite content with just a few clicks or voice commands.
6. Expandable Storage The TV Box supports external storage via USB or microSD card, allowing you to expand your media library and store more content.
7. Versatile Entertainment Features Experience advanced entertainment features such as screen mirroring, Bluetooth connectivity, and multimedia playback for a complete home entertainment solution.
8. Compact and Stylish Design The Smart Android TV Box features a sleek and compact design that complements any home entertainment setup. Its modern appearance adds a touch of elegance to your living space.
Conclusion In conclusion, our Smart Android TV Box with a built-in Huawei WCDMA modem offers seamless connectivity, high-quality video playback, and versatile entertainment features. Upgrade your home entertainment experience with this advanced and user-friendly TV Box.
