HDMI Dongle WiFi TV StickHDMI Dongle WiFi TV StickHDMI Dongle WiFi TV StickHDMI Dongle WiFi TV StickHDMI Dongle WiFi TV StickHDMI Dongle WiFi TV Stick

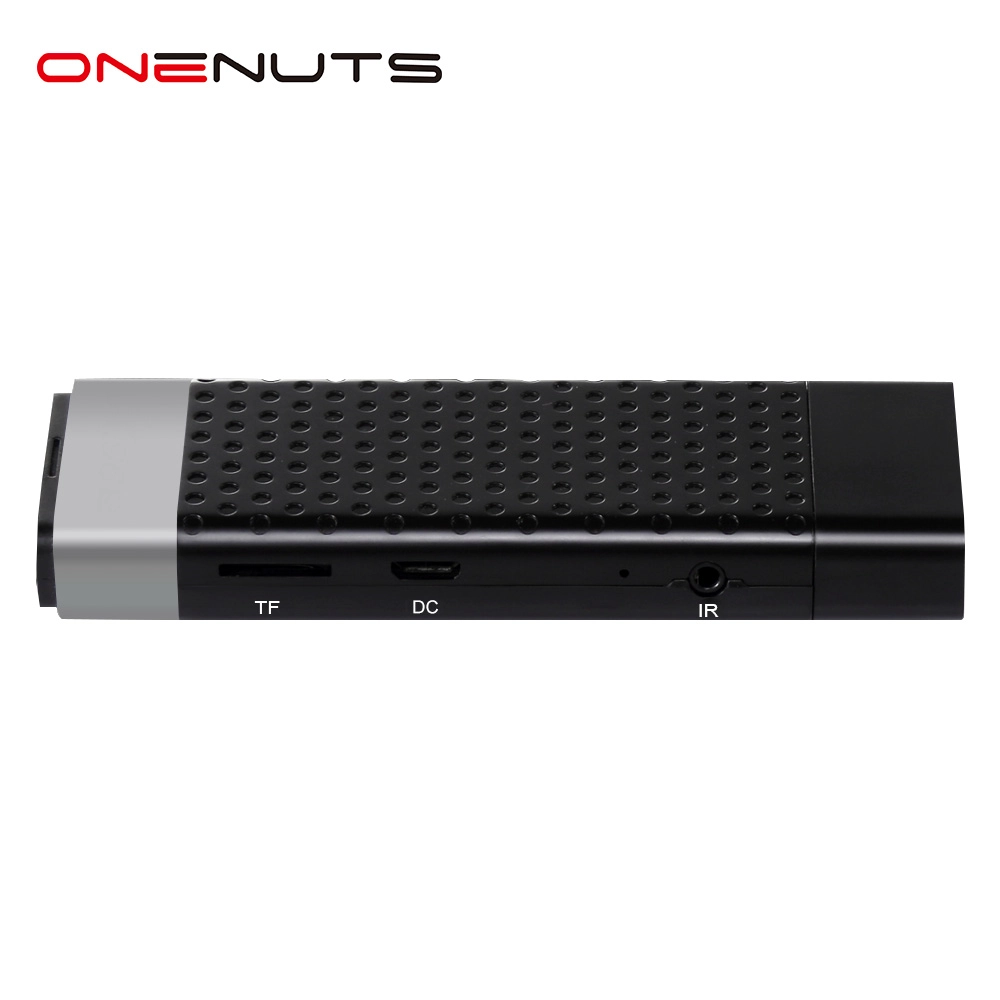

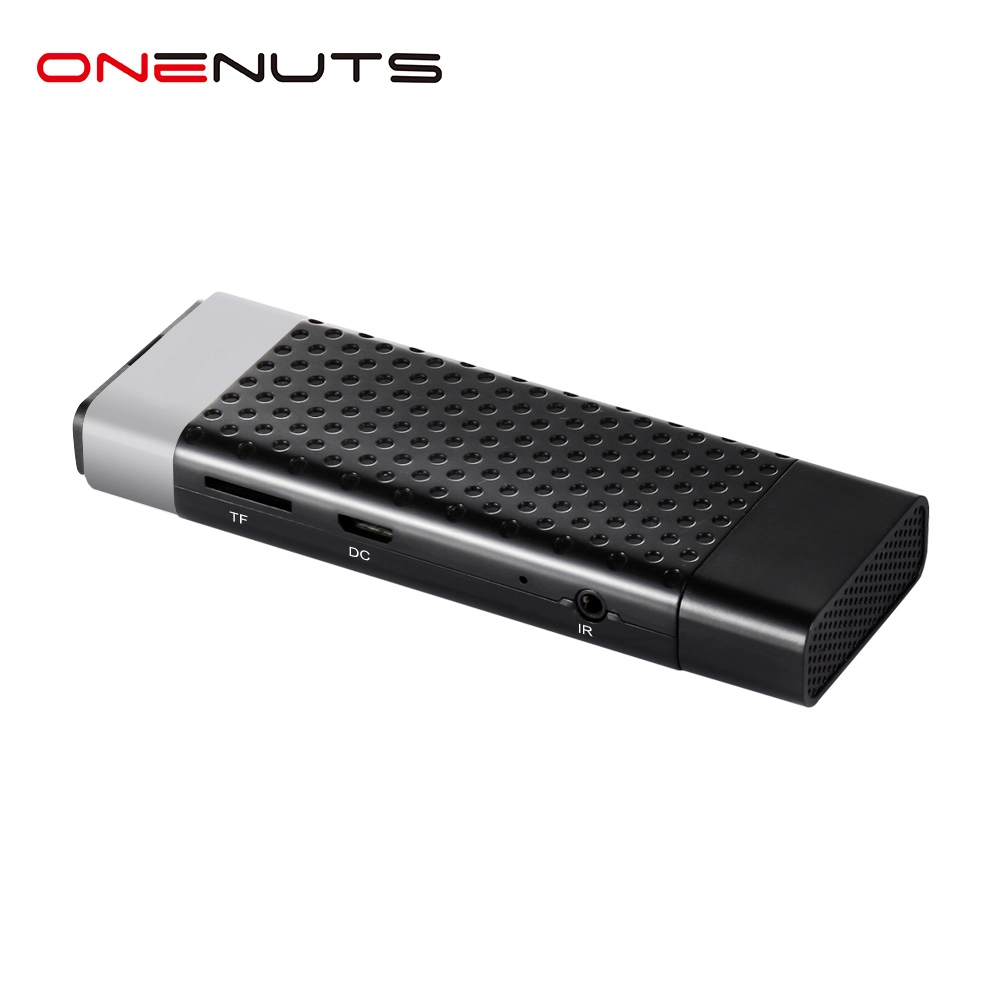

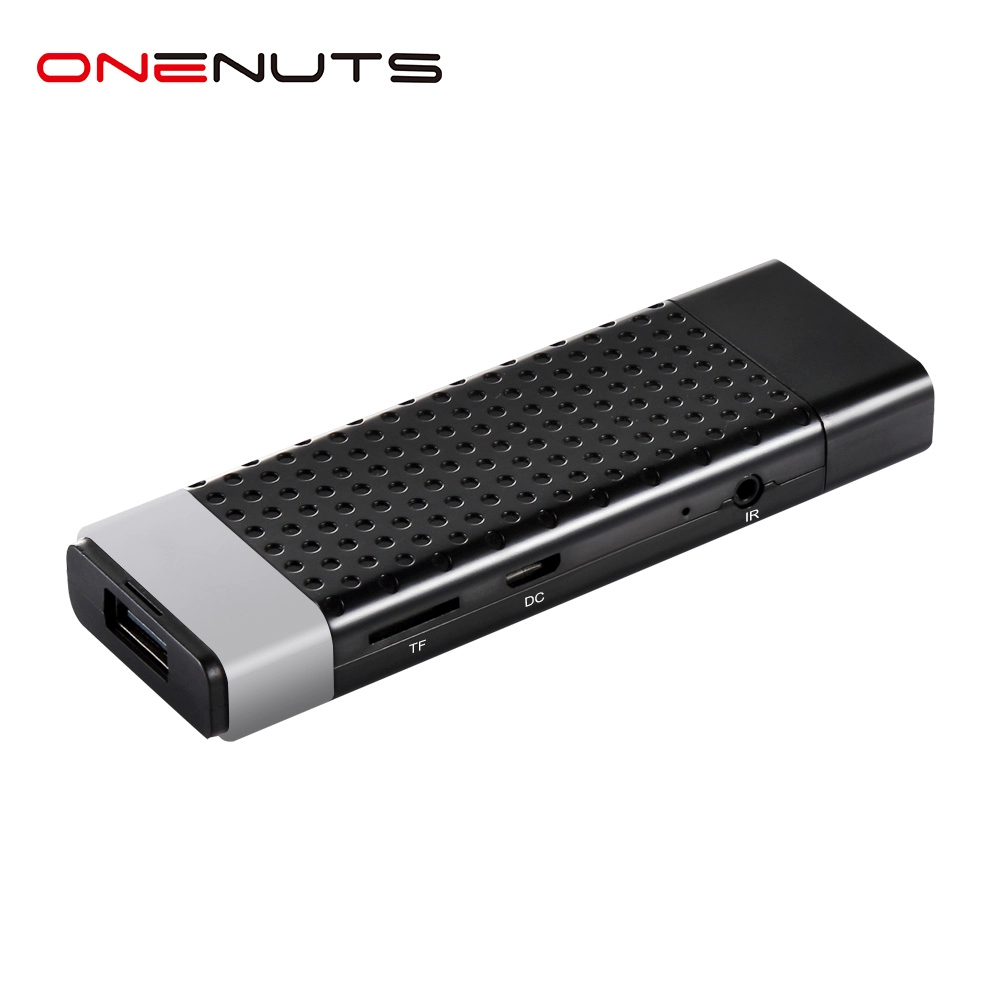

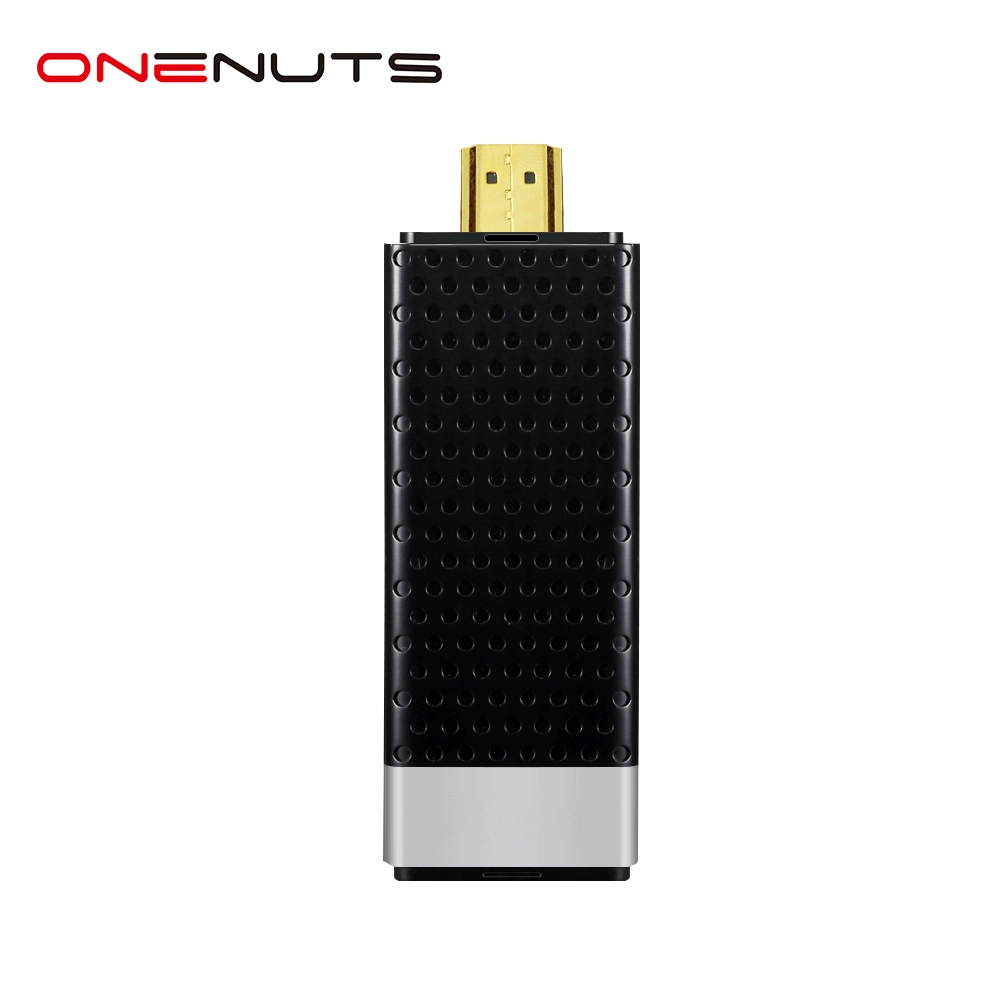

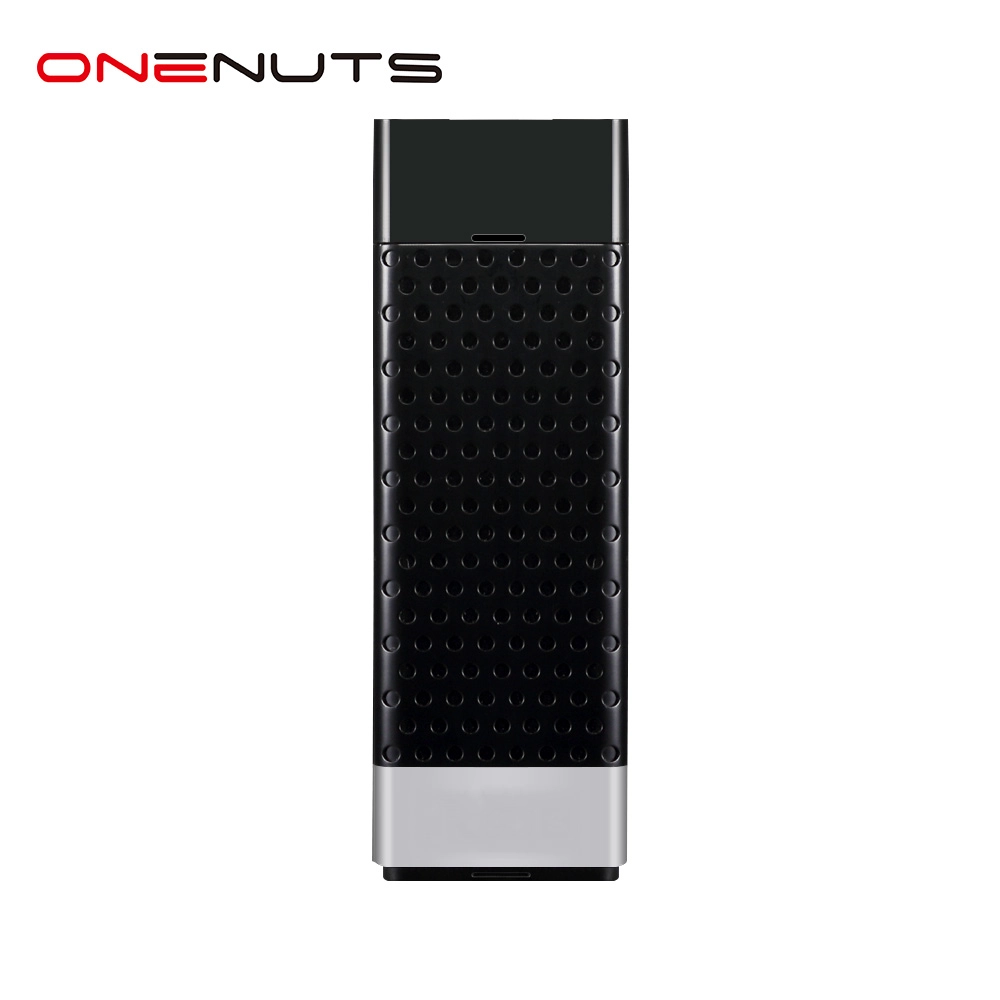

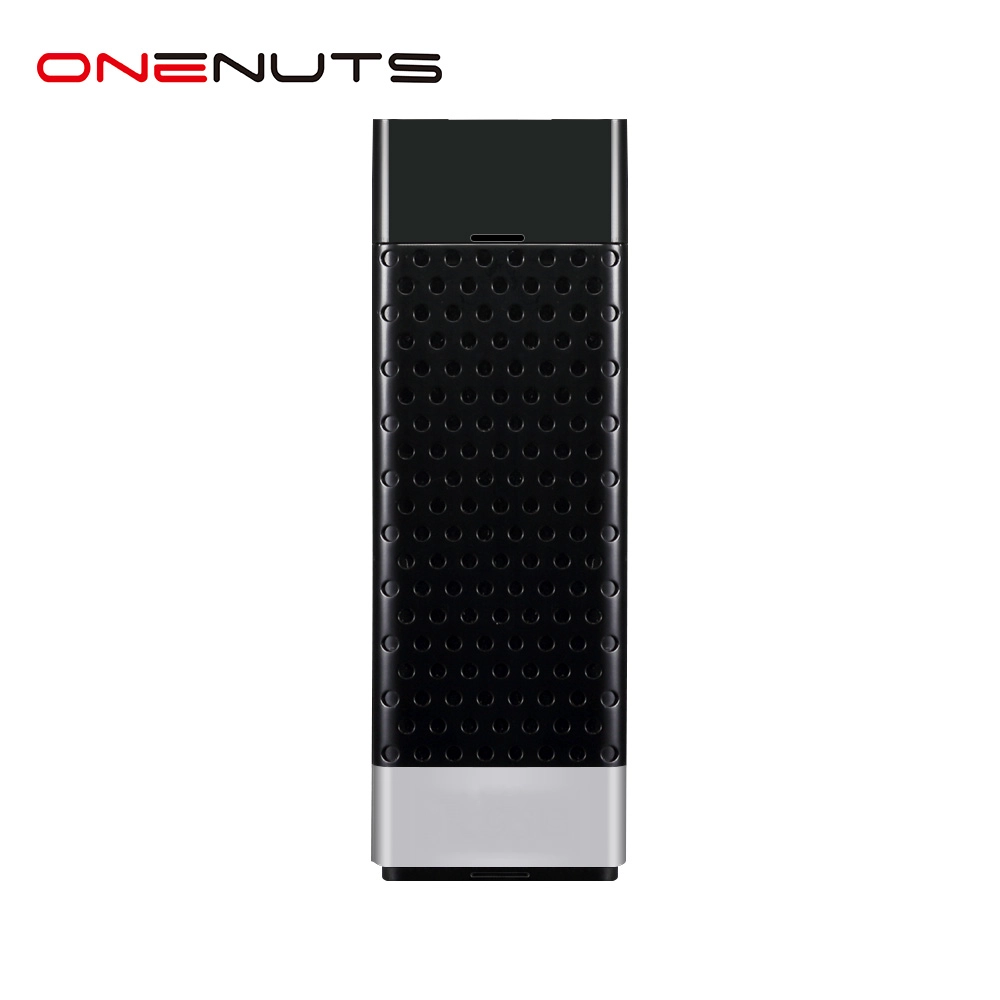

HDMI Dongle WiFi TV Stick

  • Model No.: HDMI Dongle WiFi TV Stick
  • CPU: Amlogic S905Y2 quad-core ARM Cortex-A53 CPU(S905Y2)
  • GPU: ARM Dvalin MP2 GPU
  • ROM: LPDDR4: 4GB
  • Internal Storage: MMC: 32GB(Option: 64GB)
  • OS: Android 8.1
  • WiFi: 2.4G+5.8G+ac IEEE 802.11 ac

HDMI Dongle WiFi TV Stick


Specifications

Model No.

HDMI Dongle WiFi TV Stick

CPU

Amlogic S905Y2 quad-core ARM Cortex-A53 CPU(S905Y2)

GPU

ARM Dvalin MP2 GPU

ROM

LPDDR4: 4GB

Internal Storage

eMMC: 32GB(Option: 64GB)

OS

Android 8.1

WiFi

2.4G+5.8G+ac IEEE 802.11 ac

Video&Audio CODEC

Video

  Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

  Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps

  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding

  Video/Picture Decoding

-  VP9 Profile-2 up to 4Kx2K@60fps

-  H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

-  AVS2-P2 Profile up to 4Kx2K@60fps

-  H.264 AVC HP@L5.1 up to 4Kx2K@30fps

-  H.264 MVC up to 1080P@60fps

-  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

-  WMV/VC-1 SP/MP/AP up to 1080P@60fps

-  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

-  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

-  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

-  RealVideo 8/9/10 up to 1080P@60fps

-  Multiple language and multiple format sub-title video support

-  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

-  Supports JPEG thumbnail, scaling, rotation and transition effects

-  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output

built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch

Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs

Built-in stereo audio DAC

Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

I/O

1*HDMI

HDMI 2.1,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output.

1*USB

1* USB 3.0;

1*IR Reciver

Remote Reciver Connect

Bluetooth

Bluetooth 4.2 +HS

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

1*Micro USB

Micro USB

Others


HD JPEG, BMP, GIF, PNG, TIF

Language

English French German Spanish Italian etc multilateral languages

Option

Browse all video websites, support Netflix,Hulu,Flixster,Youtube, etc.

Apps download freely form android market, amazon app store etc.

Local Media playback, Support HDD, U Disck , TF Card.
